ABB SPDSI14 16-Channel DI Module

Description

Key Technical Specifications

• Manufacturer: ABB
• Model: SPDSI14
• Product Type: Digital input module
• Channel Count: 16 channels
• Input Voltage: 48 VDC
• Input Range: 24-60 VDC
• Sensing Type: Resistive or capacitive
• Isolation: 1,500 VDC
• Dimensions: 73.66 mm x 358.14 mm x 266.7 mm
• Weight: 0.8 kg
• Condition: 100% original new on some listings

Product Introduction

ABB SPDSI14 is a 16-channel digital input module used in ABB Bailey Infi 90 and Symphony Plus systems. ABB’s own product page identifies it as a DI module, 16 channels, 48 VDC, with no jumpers.

In the field, this is the kind of module you buy when you need exact legacy compatibility and a clean replacement path for hardwired status signals. The practical checks are simple: confirm voltage class, confirm whether the cabinet expects jumperless wiring, and verify the slot and carrier arrangement before ordering.

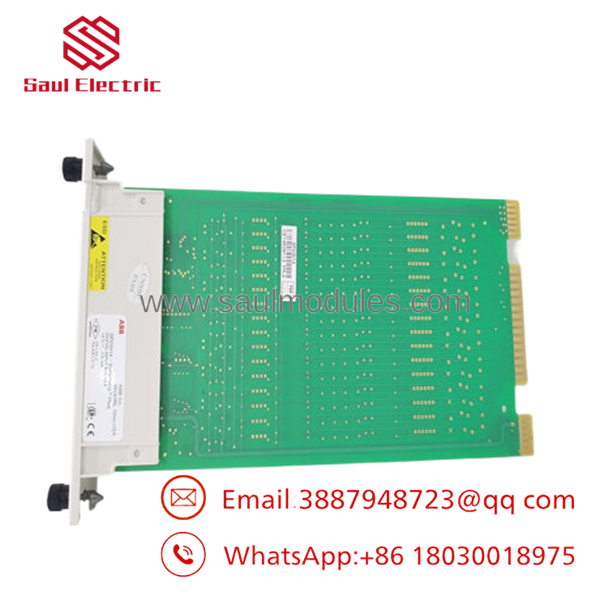

SPDSI14

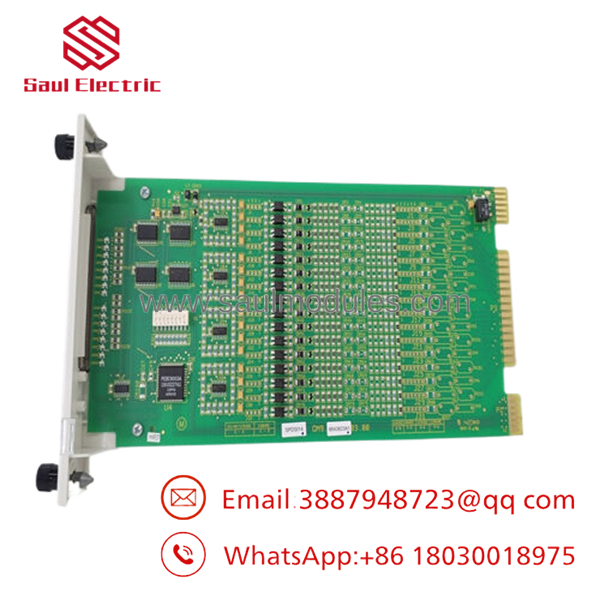

SPDSI14

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation

1. Notify operations and create downtime. Verify the system is in a safe state, apply lockout/tagout, and wait 5 minutes for capacitor discharge.
2. Gather an ESD strap, PH1 screwdriver, multimeter, wire labels, and a smartphone for photos.
3. Back up the controller configuration, document the input list, and photograph the existing module, carrier, and wiring layout.
4. Confirm the exact model number and the required input voltage class before removal.

Stage 2: Removing the Old Module

1. Remove the cabinet cover or access panel.
2. Label every wire before disconnecting it. Do not force terminals or connector blocks.
3. Release the mounting hardware and remove the module straight out to avoid connector damage.
4. Inspect the slot, carrier, and wiring for heat damage, corrosion, bent pins, or loose terminals.
5. Keep the old module until the replacement passes functional testing.

Stage 3: Installing the New Module

1. Put on the ESD strap and verify the exact model match.
2. No jumper cloning is usually needed on SPDSI14, but verify the cabinet wiring and carrier orientation.
3. Seat the module fully and secure the mounting hardware.
4. Reconnect all field wiring exactly as documented.
5. Check off the install list: [] Model match, [] Wiring secure, [] Mounting locked.

Stage 4: Power-On & Testing

1. Use a multimeter to verify input voltage and check for shorts before energizing.
2. Power up the cabinet first, not the field devices.
3. Confirm module recognition and channel status in the controller or maintenance software.
4. Test a few representative input points, then verify all 16 channels if time allows.
5. Return the system to service only after the status map matches the wiring list.
6. If a channel stays off, check field voltage, polarity, and the input contact first.

Frequently Asked Questions

Can I hot-swap the SPDSI14?
Do not assume so. It is a cabinet module, and pulling it live can drop the rack or damage the connector path.

Is obsolete?
It is a legacy ABB Bailey Infi 90 / Symphony Plus part, so availability is usually limited. That makes exact-number sourcing important.

What does the module do?
It reads 16 digital input signals at 48 VDC for ABB control systems. ABB’s own listing also notes a no-jumper design.

Will I lose logic when I replace it?
Normally no, because the control logic lives elsewhere in the system. Still, back up the configuration and document each input before removal.

Is this a direct replacement for other ABB DI modules?
Not automatically. Input voltage, carrier style, and system family all matter, so verify the exact installed part and cabinet revision first.

What condition is it usually sold in?
Commercial stock is typically New Original or New Surplus. If someone offers refurbished stock, ask for test records and warranty terms.

Why is the price lower than ABB list price?
Because surplus inventory usually trades below OEM pricing. That lower price only makes sense if the module is the right variant and has real test history.
