Description
Key Technical Specifications
- Model Number: SPFEC12-1
- Manufacturer: ABB
- Product Type: Analog Input Module (AI Module)
- I/O Family: ABB Bailey Harmony Rack (HR) I/O / Symphony Plus related systems
- Input Channels: 15 analog input channels
- Supported Signals: 4–20 mA, 1–5 V input signals
- Signal Type: High-level analog process inputs
- Accuracy: Approx. ±0.1% (supplier-listed specification; verify OEM documentation)
- Resolution: 16-bit (supplier-listed specification; verify hardware revision)
- System Interface: Harmony Rack MMU interface
- Power Supply: 24 V DC system power (verify rack configuration)
- Mounting: Rack-mounted I/O module
- Operating Temperature: Approx. −20 °C to +60 °C (supplier-listed specification)
- Protection Rating: IP20 (module-level specification)
Product Introduction
ABB SPFEC12-1 is a high-level analog input module used in ABB Bailey Harmony Rack and Symphony Plus I/O systems. It receives field analog signals such as 4–20 mA and 1–5 V from transmitters, sensors, and process instruments, then converts them into digital values for DCS control processing.
The module is commonly used for pressure, temperature, flow, level, and process measurement applications. Before replacement, verify channel configuration, rack address, terminal wiring, and whether the installed system uses the original FEC12-1 hardware or an approved replacement module.

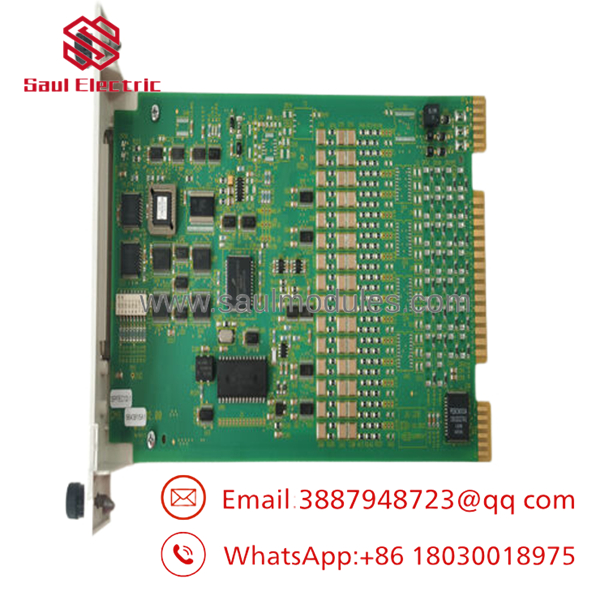

- SPFEC12-1

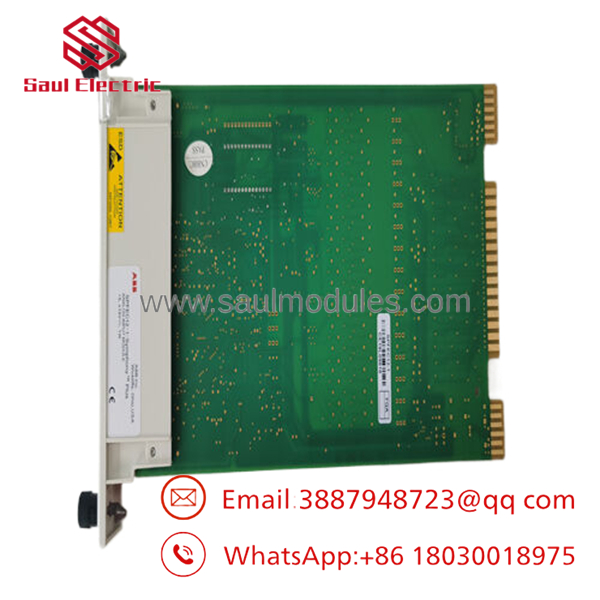

- SPFEC12-1
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Analog value stuck at zero | No field signal or failed input channel | ✅ High | Measure 4–20 mA loop current at terminal block | Verify transmitter and loop power before replacing module |
| Incorrect process value displayed | Wrong scaling or wiring polarity | ⚠️ Medium | Compare DCS configuration with transmitter output range | Correct engineering units and wiring first |
| Multiple channels fail together | Rack power or communication issue | ⚠️ Medium | Check I/O rack status LEDs and diagnostics | Inspect rack controller before replacing AI module |
| One channel reads unstable | Sensor noise or damaged input channel | ⚠️ Medium | Inject known current signal and compare reading | Check shielding and grounding |
| Module offline in DCS | Backplane communication fault | ⚠️ Medium | Review Harmony/Symphony diagnostic messages | Verify rack communication and module seating |
| Replacement module does not read signals | Configuration mismatch | ✅ High | Compare old/new jumper settings and channel setup | Match original configuration before startup |
❗ Technical support note: If the issue remains unclear, provide photos of the SPFEC12-1 label, rack position, terminal wiring, loop measurements, and DCS diagnostics.
Frequently Asked Questions (FAQ)
Q: What is ABB SPFEC12-1 used for?
A: is an analog input module used to collect process measurement signals from field devices and transfer them into ABB control systems.
Q: How many analog inputs does have?
A: The module provides 15 analog input channels.
Q: What signals can ABB accept?
A: It is designed for high-level analog inputs including 4–20 mA and 1–5 V signals.
Q: Is compatible with modern ABB Symphony Plus systems?
A: Compatibility depends on the installed I/O architecture. ABB lists FI12evA as a form/fit/function replacement for FEC12-1 applications, but verify the exact system before migration.
Q: Does require programming after replacement?
A: The module itself normally does not require standalone programming, but the DCS configuration, channel assignments, and scaling parameters must match the original installation.
Q: Why is a New Surplus cheaper than factory supply?
A: Industrial automation modules are often sourced from unused project inventory or maintenance stock. Confirm condition, testing records, and packaging details before installation.
Q: What is the most common replacement mistake with ?
A: Installing the module without checking channel configuration and signal type. A 4–20 mA loop and a voltage input application must be matched correctly before commissioning.
