3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Auxiliary Voltage | 24 – 250 V DC / 100 – 230 V AC |
| Ambient Temperature | +5°C to +70°C |
| Nominal Voltage (VT) | 50 to 130 VAC |
| Frequency | 16⅔ / 50 / 60 Hz |
| Voltage Tolerance | 0 to 1.3 × Un |
| Dimensions | Approx. 144 x 144 x 155 mm |
| Mounting | Plug-in module for 19″ rack or panel |
| Communication | Fieldbus options (Modbus, others via system) |
| Channels | Single channel automatic synchronizer |
| Function | Synchrocheck, frequency/voltage adjustment, paralleling |
4. Product Introduction
The ABB SYN5201A-Z,V271 (3BHB006714R0271) is a single-channel automatic synchronizing unit from the SYNCHROTACT 5 series. It handles automatic synchronization and paralleling of generators to the grid or between synchronous lines in power plants and industrial facilities.
In field use on AC800M and Symphony systems, this module performs voltage matching, slip frequency control, and breaker closing commands with high precision. It reduces manual intervention and minimizes out-of-phase closure risks. Engineers choose it for reliable performance in critical power applications where exact phase, voltage, and frequency alignment matters.

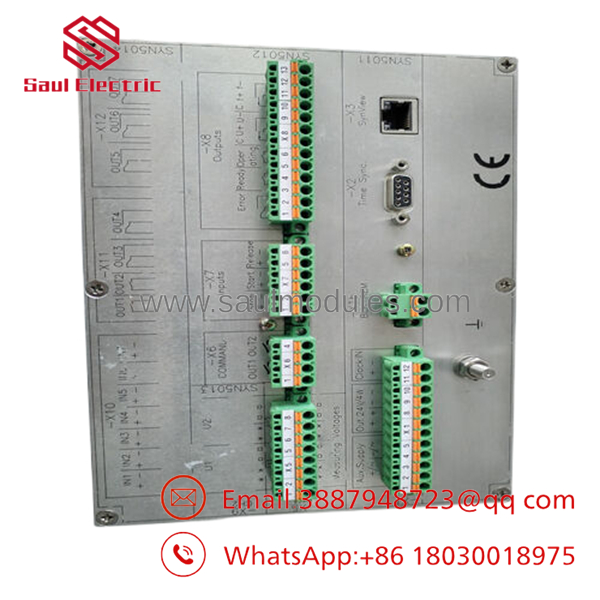

- SYN5201A-Z,V271

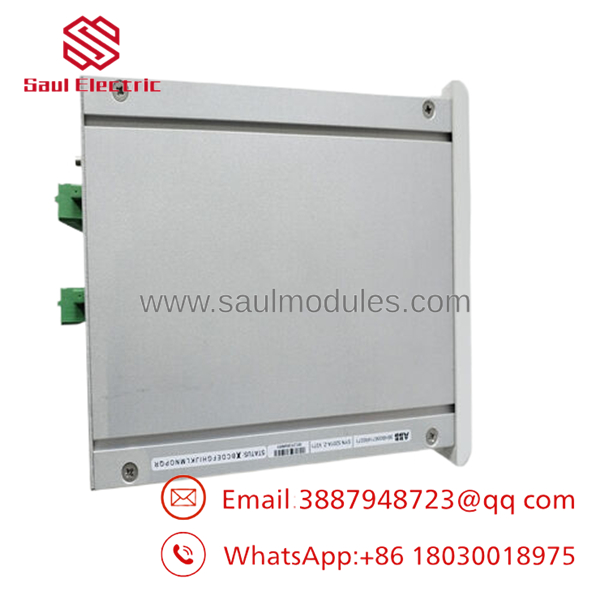

- SYN5201A-Z,V271

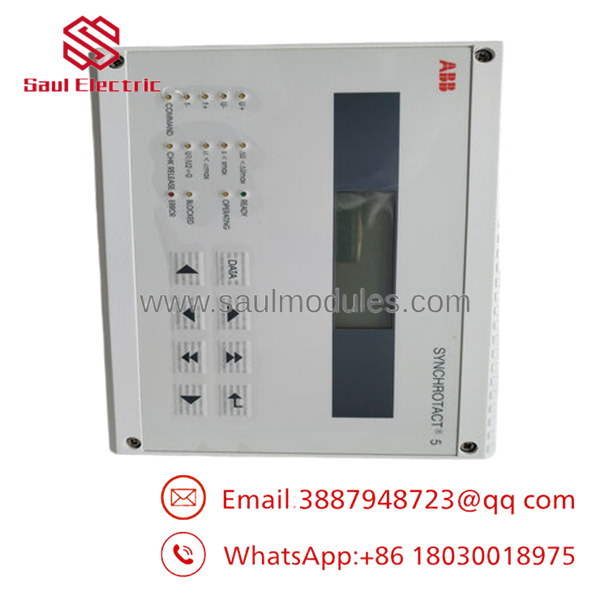

- SYN5201A-Z,V271
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No power LEDs | Auxiliary supply missing | High | Measure 24-250V at terminals with multimeter | Verify incoming power and fuses first |
| Synchrocheck fails to release | Voltage/frequency outside limits | High | Check VT inputs (50-130 VAC) and bus/generator signals | Confirm phase rotation and settings match site |
| No breaker close command | Output relay fault or config error | Medium | Monitor relay outputs during test sequence | Review SynView logs; test relay contacts |
| Communication timeout | Fieldbus or address mismatch | Medium | Ping via connected system or check wiring | Verify protocol settings and cable integrity |
| Unit locks out after attempt | Slip or angle limits exceeded | High | Read diagnostic buffer | Reset after correcting generator speed/voltage |
If diagnostics point to the synchronizer after checking external signals and power, replace the module. Contact technical support with photos of front panel LEDs, SynView logs, and wiring details.
6. Frequently Asked Questions (FAQ)
Is this a new original unit or refurbished? This is New Original / New Surplus stock. Units come from OEM channels with full traceability. We perform full inbound inspection and functional testing before shipment.
Can this replace older SYN5201 variants directly? Yes in most cases, but verify firmware version and terminal layout against your existing installation. Take photos of the old unit’s settings before removal.
Does it support hot-swapping? No. Power down the rack or relevant section first. Live insertion risks backplane damage or incorrect synchronization commands.
What is the warranty? 1-year warranty on tested functional performance. Coverage includes manufacturing defects under normal operating conditions.
How do I match firmware or settings for my system? Document the old module’s configuration and current firmware before swap. We can provide test reports and assist with specific site requirements. Always cross-check against the ABB datasheet for your exact application.
Is technical support available after purchase? Yes. Send diagnostic logs, photos, and system details for direct assistance from our automation engineers.
Why is surplus stock often more available than factory new? Many plants upgrade systems but keep compatible spares. Our testing process verifies these units perform identically to current production under load.
