ABB TU810V1 3BSE013230R1 Compact MTU

Description

Key Technical Specifications

• Model: TU810V1
• Product ID: 3BSE013230R1
• Manufacturer: ABB
• Product type: Compact module termination unit
• Voltage rating: 50 V
• Channel count: 16
• Signal terminals: 2 x 8
• Maximum current per I/O channel: 2 A
• Maximum current per process connection: 5 A
• Dielectric test voltage: 500 V AC
• Wire size: 0.2 to 4 mm² solid, 0.2 to 2.5 mm² stranded
• Dimensions: 64 mm depth, 58.5 mm width, 170 mm height
• Weight: 0.17 to 0.20 kg

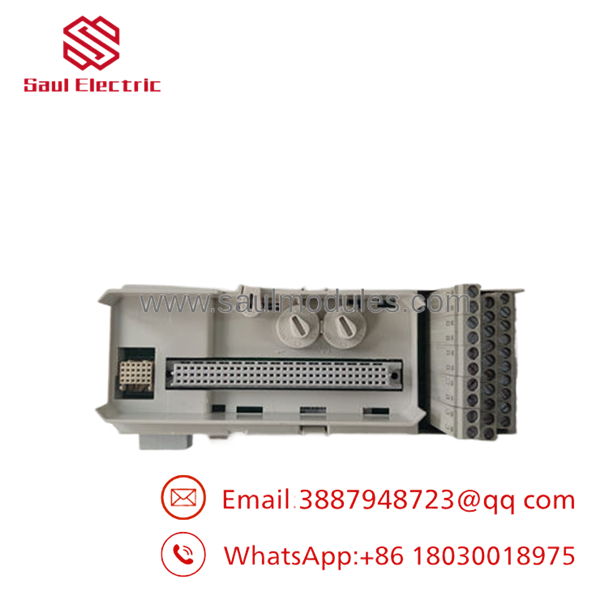

TU810V1 3BSE013230R1

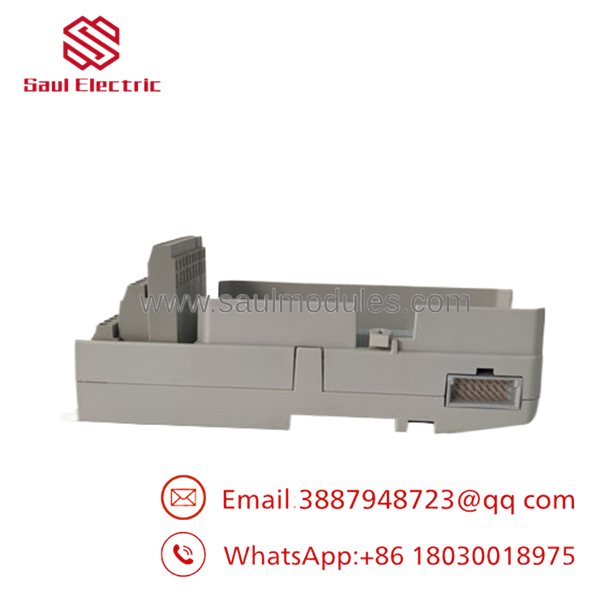

TU810V1 3BSE013230R1

Product Introduction

ABB TU810V1 3BSE013230R1 is a compact module termination unit for ABB S800 I/O systems. It provides the field wiring interface for compatible I/O modules and carries the ModuleBus through the station.

This MTU is a passive termination component, so the real value is compatibility and clean field termination rather than any active processing. ABB documentation shows it as a 16-channel, 50 V unit with mechanical keying for correct module insertion.

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation

1. Notify operations and isolate the cabinet. Lock out/tag out the rack power and wait at least 5 minutes for capacitor discharge.
2. Gather tools: ESD strap, PH1 screwdriver, multimeter, wire labels, and a smartphone for photos.
3. Back up the running configuration, document all terminal numbers, and photograph the existing wiring layout and module key positions.
4. Confirm the exact model and suffix before opening the panel.

Stage 2: Removing the Old Module

1. Remove the front cover or access bezel.
2. Label every wire before disconnecting it. Do not pull on the conductors.
3. Release the locking tabs and remove the MTU straight from the rail or base.
4. Inspect the terminals, bus contacts, and mounting latch for damage or contamination.
5. Keep the old unit available until the replacement passes verification.

Stage 3: Installing the New Module

1. Put on the ESD strap and verify the part number matches exactly.
2. Match the mechanical keying exactly. This is the part people miss when they are rushing.
3. Install the unit and confirm it is fully latched and seated.
4. Reconnect field wiring using the original labels and terminal plan.
5. Verify the checklist: [] keying matched, [] wiring secured, [] latch locked.

Stage 4: Power-On & Testing

1. Use a multimeter to check for shorts on the relevant field supply before energizing.
2. Power the cabinet back up in stages.
3. Confirm the host I/O module recognizes the MTU and that channel wiring reads correctly.
4. Run a dry functional check on the connected I/O channels.
5. Time estimate: 5–10 minutes for swap, 10–15 minutes for verification.
6. ⚠️ If the module is not recognized, check keying, seating, and wiring before blaming the I/O module.

Frequently Asked Questions

Q: Can I hot-swap the TU810V1?
A: I would not treat this as a casual hot-swap part. It is a passive termination unit, but the surrounding I/O and field wiring still deserve a full power-down before you touch it.

Q: Is this model obsolete?
A: Treat it as legacy ABB S800 I/O hardware. Stock is usually limited, so condition and exact part code matter.

Q: What does TU810V1 actually do?
A: It terminates the field wiring for ABB S800 I/O modules and carries part of the ModuleBus. In plain terms, it is the connection point between the cabinet wiring and the I/O module.

Q: Is a direct replacement for TU810?
A: ABB documentation shows as the compact MTU version tied to the same family. Still, verify the installed module type and mechanical keying before ordering.

Q: Why is surplus pricing lower than OEM list price?
A: Because surplus is usually old stock, not fresh production. Lower cost only makes sense if the seller can prove identity and physical condition.

Q: What should I check before ordering?
A: Confirm the exact suffix, the I/O module family, the 50 V rating, and the mechanical key position. If any one of those is wrong, the install can stall immediately.

Q: Is it new or refurbished?
A: Ask for that in writing. I would only accept New Original, New Surplus, or tested refurbished if the seller provides photos and traceability.
