3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Channels | 8 |
| Voltage Rating | 250 V |
| Mounting | DIN rail, horizontal or vertical |
| Process Connections | Screw terminals |
| Max Current | 3 A per channel (verify exact) |
| Compatible Modules | DI820, DI821, DO820, DO821 and similar 250V types |
| Housing | Compact design for space saving |
| Operating Temp | Up to 55°C horizontal / 40°C vertical |
4. Product Introduction
The ABB TU811 (TU811V1) is a compact module termination unit for the S800 I/O system. It serves as the interface between field wiring and S800 I/O modules in 250 V applications, providing screw terminals for up to 8 channels.
Maintenance teams use these MTUs in control cabinets because they offer reliable connections with minimal DIN rail space. The design supports quick module replacement while keeping field wiring intact.

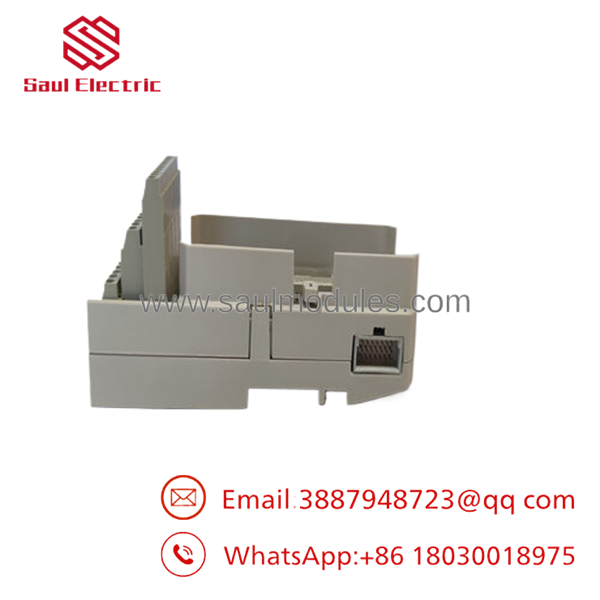

- TU811

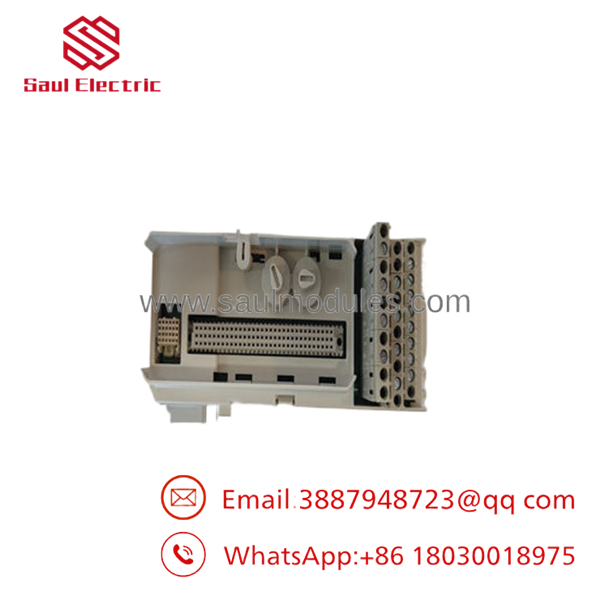

- TU811
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Module won’t seat | Debris or bent pins | High | Inspect connectors visually | Clean terminals and re-seat module |
| No signal on channel | Loose field wire | High | Check screw torque and continuity | Tighten terminals (0.5-0.6 Nm) |
| High resistance | Corroded contacts | Medium | Measure continuity from field to module | Clean or replace affected terminals |
| Ground fault | Improper shielding | Medium | Check ZP and ground connections | Follow single-point grounding rules |
| Overheating | Excessive current | High | Monitor temperature and current draw | Verify load against 3 A limit |
Most problems come from installation or wiring. If the MTU passes continuity tests, the issue is usually in the I/O module or field device.
6. Frequently Asked Questions (FAQ)
What is the difference between TU810 and TU811? TU811 is rated for 250 V applications while TU810 is for lower voltage (50 V). They are not interchangeable due to isolation and terminal design.
Is this a new original termination unit? Yes, New Original / New Surplus. Units are inspected for mechanical integrity and terminal condition.
Which I/O modules pair with the TU811? Primarily higher voltage digital modules such as DI820, DI821, DO820, and DO821. Confirm compatibility for your specific module.
Does it support hot-swap of I/O modules? Yes, when used with compatible S800 modules. The MTU keeps field wiring in place during module exchange.
What wire sizes does it accept? Solid: 0.2 – 4 mm², Stranded: 0.2 – 2.5 mm². Recommended stripping length is 7 mm.
How do I mount it on the DIN rail? It snaps onto standard 35 mm DIN rail. It can be mounted horizontally or vertically with temperature derating for vertical orientation.
Do you provide installation guidance? Yes. We include basic connection diagrams and can advise on best practices for shielding and power distribution in S800 racks.
