ABB TU838 Extended MTU Baseplate

Original price was: $8,897.00.Current price is: $7,609.00.

  • Model: TU838 (Part Number: 3BSE008572R1)
  • Brand: ABB
  • Series: S800 I/O / System 800xA
  • Core Function: Provides an extended physical mounting and electrical termination base with individual fuse or return paths for S800 I/O modules.
  • Product Type: Extended Module Termination Unit (MTU) Baseplate
  • Key Specs: 3-Wire Connection Configuration | Form-Fit Mechanical Keying | Built-In Electrical ModuleBus Segments
  • Condition: New Original / New Surplus (Never refurbished)
  • Inventory Status: Legacy/Classic lifecycle phase. Critical structural asset required for maintaining field marshaling consistency without expensive cabinet overhauls.
Brand: Model/SKU: TU838

Get a Quote / Inquiry

Phone/WhatsApp/Wechat:
WhatsApp QR Code WhatsApp
WeChat QR Code WeChat

Description

Key Technical Specifications

Parameter Value
Manufacturer ABB
Model Designation TU838
Product ID 3BSE008572R1
MTU Type Extended profile, 3-wire dedicated field wire termination base
Supported Modules Various S800 I/O modules (primarily high-density AI and AO cards)
Terminal Configurations Extended rows of screw-clamp compression terminals supporting signal, return, and shield/ground paths per channel
Max Voltage Isolation 50 V continuous (engineered for 24 V DC low-voltage instrumentation loops)
Wire Gauge Range 0.2 to 2.5 mm² (24 to 14 AWG)
Backplane Interconnect Integrated internal ModuleBus pass-through connectors
Mechanical Security Customizable positioning keys to prevent inserting incorrect module types
Mounting Style Horizontal or vertical standard 35 mm DIN Rail
Environmental Safety Class I Div 2 cULus, ATEX Zone 2, G3 harsh environment rating
Dimensions & Weight 124 mm W × 186 mm H × 51 mm D



Product Introduction & Supply Chain Strategy

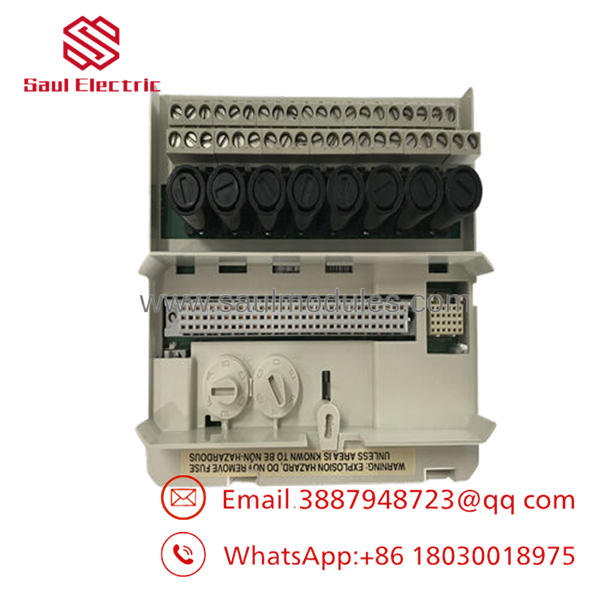

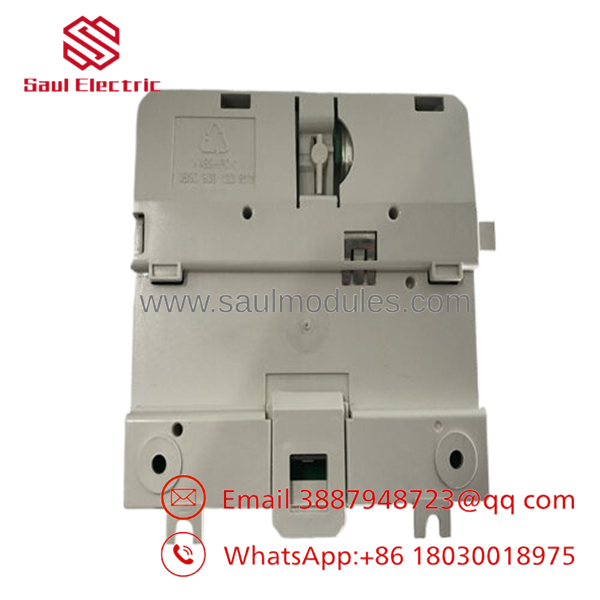

The ABB TU838 (3BSE008572R1) is an extended module termination unit (MTU) designed to streamline wiring topologies for S800 I/O components within the System 800xA control framework. Engineered with an expanded physical base, the TU838 provides a true 3-wire termination style per channel. This design allows field engineers to land the signal wire, return loop, and shield drain wire directly onto a single, dedicated hardware slot. This setup eliminates the need for external marshaling terminal blocks for analog transmitters and valves, saving valuable cabinet footprint.

From a lifecycle and maintenance perspective, procurement of this unit as a New Surplus asset directly minimizes your Total Cost of Ownership (TCO). Because the TU838 holds high-density analog connections, its internal backplane traces and screw blocks are highly susceptible to corrosion from atmospheric pollutants and stress-cracking from wiring changes. Refurbished baseplates present major operational hazards: microscopic breakdown within the channel isolation barriers or worn terminal threads can introduce signal noise and crosstalk into sensitive 4-20 mA current loops. Sourcing factory-clean, zero-hour surplus hardware guarantees pristine signal isolation and isolates your distributed network from unpredictable data timeouts.
