3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Function | DC control and regulation |
| Application | Excitation systems, drives |
| Design | High precision feedback control |
| Reliability | Industrial grade components |
| Integration | Compatible with ABB power systems |
| Mounting | Board level in rack or enclosure |
4. Product Introduction

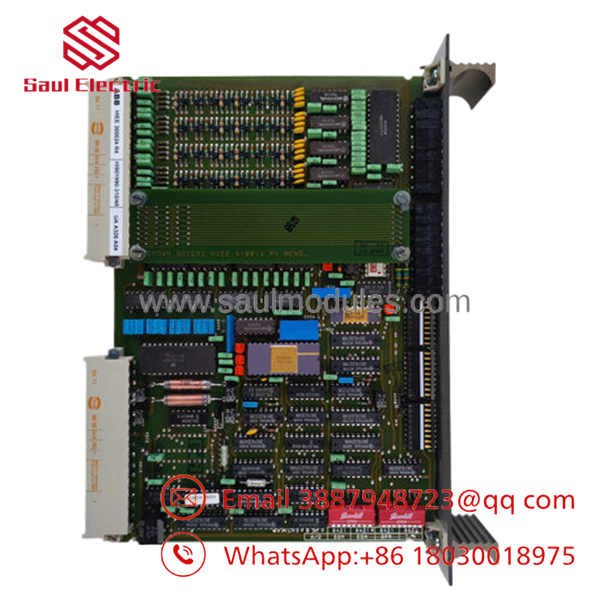

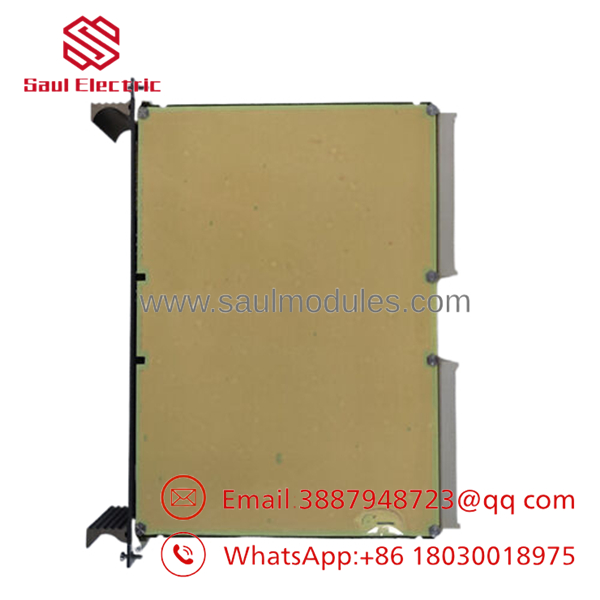

The ABB UAA326A02 (HIEE300024R2) is a DC control board used in excitation and power conversion systems. It provides accurate regulation of DC output based on setpoint and real-time feedback.
In field service on excitation equipment, this board delivers stable control with fast response to load changes. It is a key component for maintaining generator field current or DC bus voltage within tight tolerances.
- UAA326A02
- UAA326A02
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Unstable output | Feedback signal loss | High | Measure input feedback voltages | Verify sensor wiring and scaling |
| No DC output | Power supply or enable issue | High | Check input power and control signals | Confirm enable commands from higher system |
| Overvoltage / Undervoltage | Parameter drift or fault | High | Monitor regulated output vs. setpoint | Review tuning parameters and alarms |
| Communication error | Interface cable problem | Medium | Test connections to main controller | Inspect and reseat cables |
| Overheating | High load or ventilation issue | Medium | Check board and heatsink temperatures | Improve airflow or reduce duty cycle |
Control loop tuning and feedback integrity solve most issues. Always document alarms before replacement.
6. Frequently Asked Questions (FAQ)
What systems use the UAA326A02? It is primarily used in ABB excitation control systems and DC drive applications for precise power regulation.
Is this new original stock? Yes, New Original / New Surplus. Boards receive visual and basic functional checks where possible.
Does it require calibration? Some parameters may need verification or tuning during commissioning. Follow the specific system maintenance manual.
How does it handle redundancy? In dual channel excitation setups, compatible configurations allow seamless switchover. Confirm your system architecture.
What power does the board require? It operates from standard control voltages within the host system. Check the exact requirements in your application drawings.
Do you provide support for integration? Yes. Share details about your excitation or drive system and we can offer guidance on installation and basic commissioning steps.
Are spare parts or repairs available? We stock the board and can advise on repair options for existing units.
