3. Key Technical Specifications
- Module Type: Automatic Voltage Regulator (AVR)
- Excitation Output: Continuous 10 A DC (overload capability higher)
- Input Voltage: AC 0-250 V, DC 0-300 V (nominal ranges)
- Frequency Range: 25-600 Hz
- Auxiliary Supply: 9-250 V AC 3-phase
- Regulation Accuracy: High precision (±0.5% typical)
- Mounting: Direct machine mounting capable, IP20
- Applications: Small to medium synchronous generators up to ~80 MVA
- Environmental: Designed for harsh conditions, vibration resistant
- Control Features: Stable regulation with advanced algorithms
4. Product Introduction & Supply Chain Strategy
The ABB UNITROL1010 (3BHE035301R0004) is a compact automatic voltage regulator that provides reliable excitation control for synchronous generators and industrial machines. It delivers precise voltage regulation, fast response, and robust performance in power plant and marine applications through its static excitation design.
New Surplus availability of the UNITROL 1010 supports strong supply-chain outcomes for generator owners. It ensures immediate parts availability for critical excitation systems without the full cost of current OEM production. This mitigates End of Life risks, reduces unplanned downtime from voltage control failures, and improves Total Cost of Ownership compared to refurbished alternatives that may compromise regulation stability or longevity.

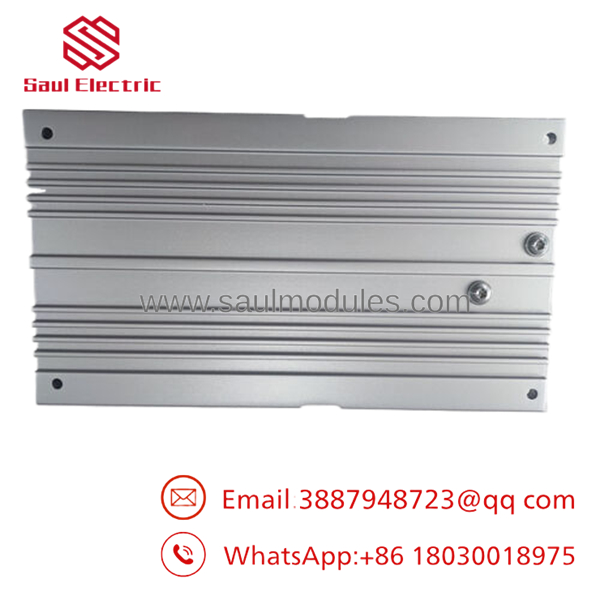

- UNITROL1010 3BHE035301R0004

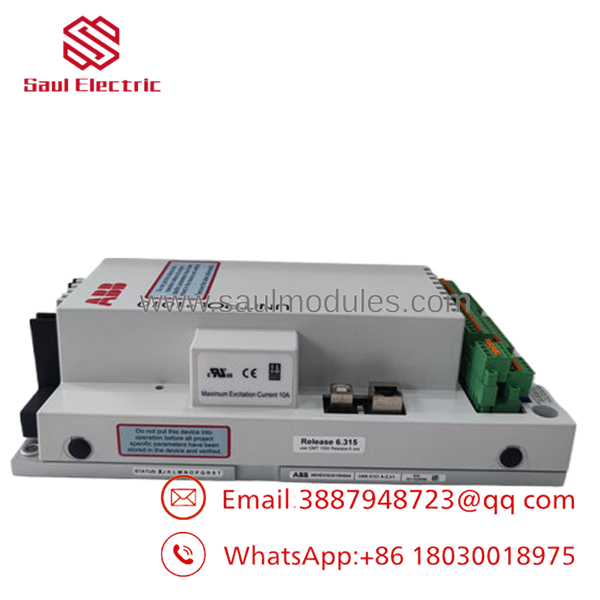

- UNITROL1010 3BHE035301R0004
5. Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety) Lock-out/tag-out the generator excitation system. Use ESD protection. Photograph all wiring, terminal connections, and any parameter settings or jumpers on the existing unit.
Stage 2: Removal De-energize circuits. Disconnect field and power cables carefully, then remove the old AVR module from its mounting location.
Stage 3: Installation (Clone & Seat) Transfer all configuration settings to the new UNITROL 1010. Mount the module securely, reconnect wiring exactly as documented, and verify polarity and tightness.
Stage 4: Power-On & Testing Restore auxiliary power and monitor display/LEDs for startup sequence. Perform no-load voltage buildup, check regulation under load, and verify protection functions before synchronizing to the grid.
6. Firmware/Software Versions & Upgrade Notes
The UNITROL 1010 contains internal firmware for regulation algorithms. Use ABB-approved tools for any updates.
Document the current firmware version before replacement. Firmware mismatches can affect control response or stability. Replace hardware first and validate basic operation, then apply firmware updates only if required and tested in a safe offline condition. Avoid downgrading without manufacturer guidance due to potential compatibility issues.
7. Frequently Asked Questions (FAQ)
Why select New Surplus for the UNITROL 1010 instead of refurbished? Excitation systems directly impact generator stability and uptime. New Surplus units offer full design life and precise performance, unlike refurbished AVRs that may have aged components leading to voltage hunting or failure under load.
Are these UNITROL 1010 modules truly New Original? Yes. They are genuine ABB New Surplus with original factory quality, minimal handling, and full traceability. We do not supply used or repaired excitation equipment.
What is the lifecycle status of the UNITROL 1010? It remains a current solution for many installations. Maintain 1-2 units of buffer stock for quick response to field needs, especially in remote or critical power sites.
Can the UNITROL 1010 be hot-swapped? No. Excitation system replacement requires full isolation and lock-out/tag-out. Offline installation with thorough testing is mandatory for safety and stability.
Will the new AVR require reprogramming? Match all wiring and basic settings from the old unit. Fine-tuning of parameters via the control interface may be needed during commissioning to match site-specific generator characteristics.
What warranty is included? We provide a 1-2 year warranty on New Surplus UNITROL 1010 modules, supported by functional verification testing.
Do you support excitation spares optimization across multiple plants? Yes. We offer vendor consolidation, consignment, and lifecycle tracking services to balance inventory turnover with high availability for UNITROL systems.
