ABB UNITROL1020 3BHE036163R6106 Voltage Regulator Module

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The ABB UNITROL1020 3BHE036163R6106 is a microprocessor-based Automatic Voltage Regulator designed for small and medium synchronous generators and industrial excitation systems. It provides precise control of generator terminal voltage by modulating the exciter field current, ensuring stability across varying grid loads. This module features built-in limiters, power factor regulators, and dual-channel redundancy support, making it standard equipment in peak-shaving plants, marine vessels, and critical emergency power infrastructure.

From a Total Cost of Ownership (TCO) perspective, securing this unit as a New Surplus asset minimizes supply chain risk without paying maximum OEM premiums. Sourcing verified New Surplus units prevents long factory lead times during unplanned forced outages. Avoid the risk of choosing low-cost refurbished alternatives; aged internal capacitors in used AVRs deteriorate over time, exposing your plant to sudden failure, voltage drops, and expensive downstream generator damage.

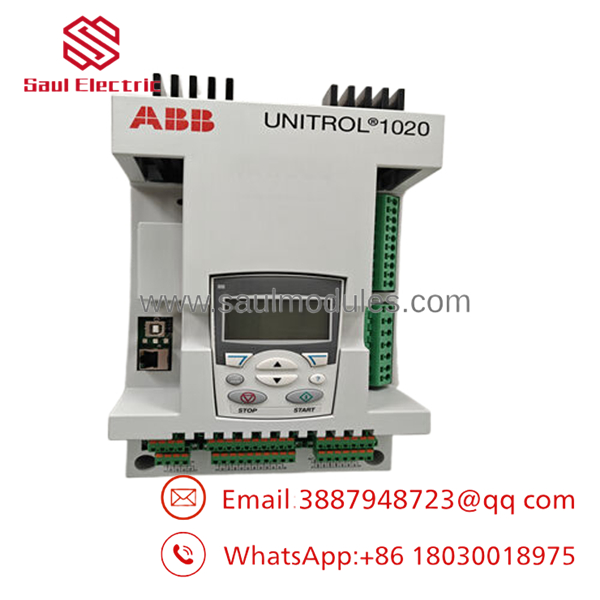

UNITROL1020 3BHE036163R6106

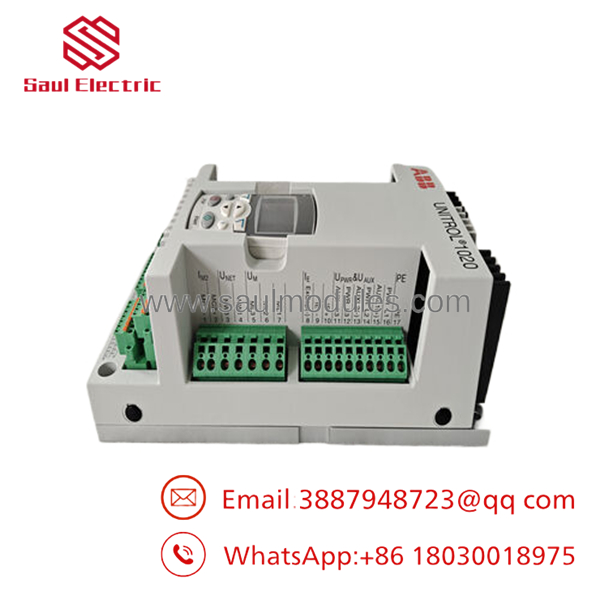

UNITROL1020 3BHE036163R6106

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Execute full lock-out/tag-out (LOTO) procedures on the prime mover (turbine/diesel engine) and isolate the generator stator circuit breaker.
2. Verify all excitation supply transformers and field winding circuits are completely de-energized.
3. Don a grounded, calibrated static dissipation wrist strap before opening the control cabinet.
4. Document the existing parameter configuration via the CMT1000 software tool, and take high-resolution reference photos of all terminal block wiring and internal DIP switch configurations.

Stage 2: Removal

1. Disconnect the removable terminal blocks from the module frame, ensuring no mechanical stress is applied to the internal wiring harness.
2. Label each terminal array clearly to preserve phase-sensing and excitation-current orientation.
3. Unscrew the mounting chassis bolts or release the DIN rail clips holding the unit to the backplate.
4. Extract the regulator straight outward away from the panel enclosure to ensure no scraping occurs along the backplane ground connection.

Stage 3: Installation (Clone & Seat)

1. Verify the replacement unit’s physical switches match the reference photos taken during Stage 1.
2. Align the UNITROL1020 chassis with the mounting holes or DIN rail structure, seating it firmly into place to secure the integrated grounding frame contact.
3. Torque all mounting hardware to the manufacturer-specified values to withstand turbine deck vibrations.
4. Reattach the terminal blocks, ensuring each block clicks firmly into its mating socket.

Stage 4: Power-On & Testing

1. Disconnect the actual field winding connections temporarily to prevent accidental over-excitation during initial power-up.
2. Apply 24 V DC auxiliary control power and verify that the “RUN” LED illuminates green and no “FAULT” indicator triggers.
3. Establish a communication link using the CMT1000 tool and upload the verified parameter file backup.
4. Reconnect the field connections, boot the prime mover to rated speed, and perform a stepped no-load voltage test to verify control loop stability.

Firmware/Software Versions & Upgrade Notes

The 3BHE036163R6106 module ships pre-loaded with application firmware compatible with standard CMT1000 commissioning software profiles. Ensure that your existing setup matches the firmware baseline running on your redundant tracking channel; running mismatched firmware between a primary and backup channel can cause communication timeouts or invalid parameter sync blocks during switchover events.

Downgrading firmware on New Surplus units to match legacy control systems is possible but requires a full parameters backup first, as it wipes any existing configuration matrices. Avoid unnecessary firmware upgrades if the current revision meets your operational requirements; changing firmware builds introduces minor variances in PID response tuning curves that require re-validation on an active load.

Frequently Asked Questions (FAQ)

What exactly is the condition of this unit, and why does the price differ from OEM list price?

This unit is guaranteed Brand New Surplus in its original packaging. It is not an item pulled from active service, nor has it undergone third-party component repairs. Our pricing reflects global stock acquisition; it sits below standard OEM list price because we utilize surplus distributor channels, yet it stays higher than refurbished options because it contains 100% fresh, unaged components with no thermal wear.

Is the UNITROL1020 3BHE036163R6106 fully obsolete, or is it still supported by ABB?

The UNITROL 1020 series is an active, widely used line, but specific sub-assembly numbers like the 3BHE036163R6106 can experience sudden supply shifts or long factory lead times during high-demand cycles. Keeping a dedicated New Surplus unit on site serves as an essential insurance policy against long factory production waits.

Can I hot-swap this module while the generator is running on load?

No. Never attempt to hot-swap or disconnect the while the generator is active. Removing terminal blocks under load can generate inductive field voltage spikes, causing severe electrical arcing that destroys the connector pins and poses an immediate arc-flash hazard to maintenance personnel.

Does this module retain its application tuning parameters when stored as unpowered stock?

Yes. The controller utilizes non-volatile onboard EEPROM memory to store its application logic, configuration sets, and tuning parameters. It will retain this information indefinitely in zero-power storage conditions without requiring an active backup battery package.

What kind of warranty coverage is provided with this New Surplus unit?

We back this unit with a comprehensive 2-year operational warranty. Because it is a verified New Surplus item with zero operating hours on the clock, we provide warranty coverage that matches or exceeds typical factory periods, offering full protection against component defects or startup failures.
