Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | UNITROL1020 UNS0119A-Z,V1 |
| Order Number | 3BHE030579R0007 |
| Product Type | Digital Automatic Voltage Regulator (AVR) |
| Product Family | UNITROL® 1000 Series |
| Version | UNITROL 1020-0007 FULL + PSS |
| Continuous Excitation Output | 20 A DC |
| Overload Current | 38 A DC (short-term) |
| Machine Voltage Input | Up to 500 V AC |
| Machine Current Input | 1 A / 5 A AC |
| Communication | Ethernet (10/100 Mbps), USB, RS-485, CAN |
| Analog I/O | 3 Inputs, 2 Outputs (±10 V) |
| Digital I/O | 4 Inputs, 8 Configurable Digital I/O |
| Protection Rating | IP20 |
| Weight | Approx. 3.8 kg |
The 3BHE030579R0007 order code identifies the UNITROL 1020-0007 FULL + PSS configuration, which includes the integrated Power System Stabilizer (PSS) function in addition to the standard AVR capabilities.
Product Introduction
The ABB UNITROL1020 UNS0119A-Z,V1 (3BHE030579R0007) is a high-performance digital excitation controller designed for small and medium-sized synchronous generators. As part of the ABB UNITROL® 1000 family, it combines automatic voltage regulation, excitation current control, generator protection, and communication functions within a compact industrial controller.
The FULL + PSS version is intended for demanding power generation applications where voltage stability and grid performance are critical. It supports Ethernet networking, Modbus communication, automatic synchronization, event recording, and integrated Power System Stabilizer functionality while maintaining fast AVR response and high excitation capability.

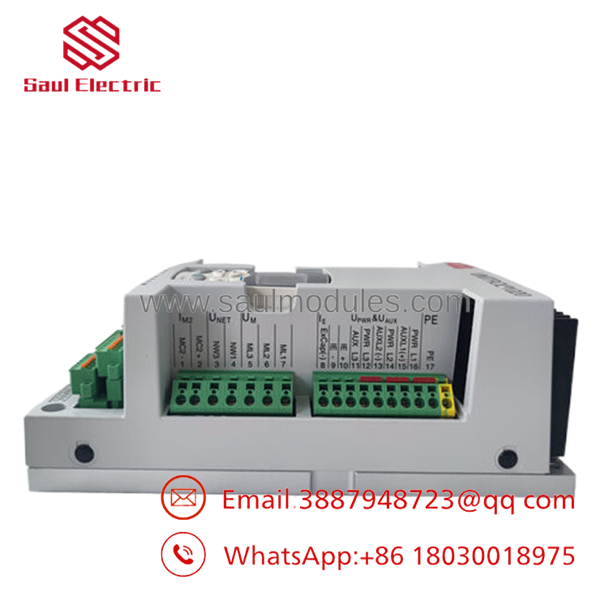

- UNITROL1020 UNS0119A-Z,V1 3BHE030579R0007

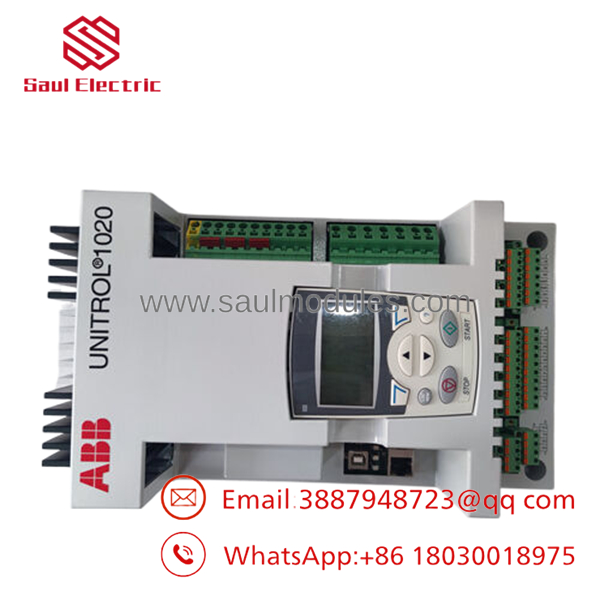

- UNITROL1020 UNS0119A-Z,V1 3BHE030579R0007
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Generator voltage cannot build up | AVR not regulating | ✅ High | Verify excitation output current and AVR status | Check field circuit before replacing AVR |
| Display powers up but no excitation output | Protection limiter active | ✅ High | Review alarm log and limiter status | Clear fault condition before replacing controller |
| Communication with SCADA lost | Ethernet or Modbus configuration | ⚠️ Medium | Ping controller and verify RS-485 parameters | Confirm network settings first |
| Generator hunting or unstable voltage | Incorrect AVR tuning or PSS settings | ✅ High | Review PID parameters using CMT1000 | Verify commissioning parameters |
| Alarm: Rotating diode monitoring | Exciter diode fault | ❌ Low | Measure rotating diode assembly | Generator hardware is more likely than AVR failure |
| Synchronization failure | PT/CT wiring or parameter mismatch | ⚠️ Medium | Verify voltage sensing and synchronization settings | Check instrument transformer wiring |
| Unit will not enter AUTO mode | External interlock active | ⚠️ Medium | Review digital input status | Verify permissive signals before replacing hardware |
Technical Support Note: Export the event recorder, alarm history, parameter file, firmware revision, and excitation trend data before replacing the UNITROL controller. In generator excitation systems, incorrect field wiring or PT/CT feedback issues are more common than AVR hardware failures.
Frequently Asked Questions (FAQ)
Q1. What is the difference between 3BHE030579R0007 and other UNITROL 1020 versions?
The 3BHE030579R0007 corresponds to the UNITROL 1020-0007 FULL + PSS version. It includes all standard UNITROL 1020 functions plus the integrated Power System Stabilizer (PSS) used to improve generator stability during grid disturbances.
Q2. What generators can this controller be used with?
It is designed for small and medium-sized synchronous generators, including:
- Diesel generator sets
- Gas turbine generators
- Steam turbine generators
- Hydroelectric generators
- Marine generators
- Industrial synchronous motors
Q3. Does the UNITROL1020 support remote monitoring?
Yes. It supports:
- Ethernet (10/100 Mbps)
- USB
- RS-485
- CAN
- Modbus communication
ABB’s CMT1000 commissioning software connects through USB or Ethernet for configuration, diagnostics, firmware management, and parameter backup.
Q4. Can I replace the controller without backing up the parameters?
No.
This is probably the biggest mistake made during generator maintenance.
Always save:
- AVR parameters
- PID tuning values
- Limiter settings
- PSS configuration
- Event history
- Firmware revision
Restoring these files can reduce commissioning from several hours to just a few minutes.
Q5. What quality inspections should be completed before shipment?
A qualified supplier should perform:
- OEM serial number verification
- Anti-counterfeit inspection
- Complete visual PCB inspection
- Functional testing on an ABB excitation test bench
- Excitation output verification up to rated current
- Ethernet, USB, and RS-485 communication testing
- Analog and digital I/O verification
- Continuous burn-in testing (>24 hours)
- Firmware documentation
- ESD-safe packaging with QC approval
Test reports, startup videos, and communication screenshots should be be available upon request.
Q6. What installation mistakes create the most downtime?
Based on field experience, these four issues account for most commissioning delays:
- PT/CT wiring errors. I’ve seen a perfectly healthy AVR spend half a day in troubleshooting because two voltage sensing wires were reversed.
- Parameter file mismatch. Never assume another UNITROL1020 has identical settings. Generator characteristics, exciter constants, and limiter values are machine-specific.
- Incorrect PSS commissioning. The FULL + PSS version requires proper tuning. Loading the wrong PSS parameters can cause generator oscillation instead of damping.
- Skipping firmware verification. Always document the existing firmware revision before replacement to avoid unexpected behavior after startup.
Keep these checks in mind and you’ll eliminate most unnecessary AVR replacements while reducing generator commissioning time significantly.
