Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 3BHE014185R0001 |
| Board Designation | UUD148AE01 |
| Brand | ABB |
| Product Type | High-Speed I/O Board / Controller Module |
| Primary Platform | AC 800PEC high-performance controller |
| Processor | 750 MHz RISC + 64-bit FPU + FPGA (nanosecond-level task processing) |
| Architecture | Dual-core processor architecture |
| Control Voltage | 24 V DC via backplane |
| Power Consumption | 6–10 W typical |
| I/O Channels | 16 digital inputs + 16 digital outputs (24 V DC logic) |
| Cycle Time | As low as 100 µs (fast tasks); FPGA-driven tasks down to 25 ns |
| Communication | Fiber optic links, Modbus TCP, Profibus DP, PROFINET, IEC 61850 |
| Programming | IEC 61131-3 (Control Builder M), MATLAB/Simulink model import |
| Dimensions | 6U form factor, plug-in board for PEC subrack |
| Weight | Approx. 0.55–1.2 kg |
| Operating Temperature | 0°C to +60°C |
| Protection Rating | IP20 (board-level) |
| Mounting | Subrack plug-in card |
Product Introduction & Supply Chain Strategy
The ABB UUD148AE01, with part number 3BHE014185R0001, is a high-speed I/O and control board for the AC 800PEC high-performance controller platform. It is the primary control interface between the AC 800PEC’s powerful dual-core processor + FPGA architecture and the field I/O signals in power electronics systems. The board features 16 digital inputs and 16 digital outputs, providing deterministic, microsecond-level signal processing for demanding applications. It integrates galvanic isolation for noise immunity, backplane communication for low-latency data exchange with the CPU, and front-panel status indication for quick diagnostics .
This platform is the control brain for ABB’s most demanding systems: PCS6000 wind turbine full-power converters (up to 12 MW), ACS6000 medium-voltage drives, and UNITROL excitation systems. The UUD148AE01 board is the critical link executing the high-speed control loops that manage IGCT firing, grid synchronization, and fault protection. Refurbished or used I/O boards carry significant risk: degraded opto-isolators, compromised timing accuracy from prior overvoltage events, and latent damage to the FPGA that no functional test can guarantee. A failure in this board trips the entire drive, converter, or exciter. On a wind turbine, a critical compressor, or a generator, unplanned downtime costs exceed the module’s value by orders of magnitude. This unit offers OEM-origin traceability, zero operational hours, and a 1-year warranty.

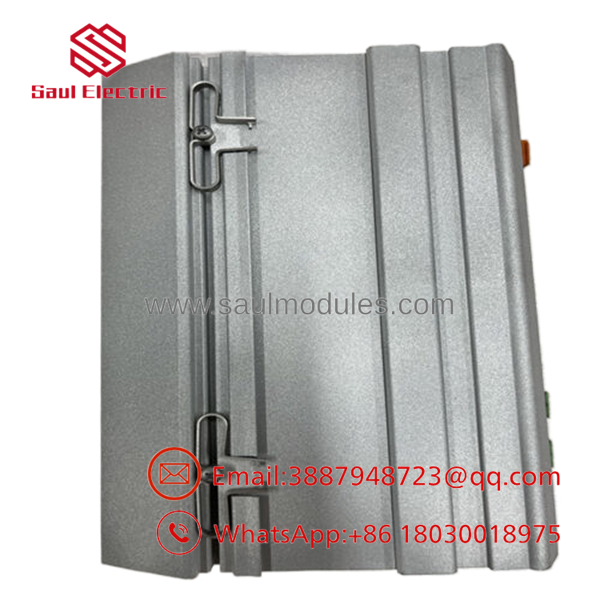

- UUD148AE01 3BHE014185R0001

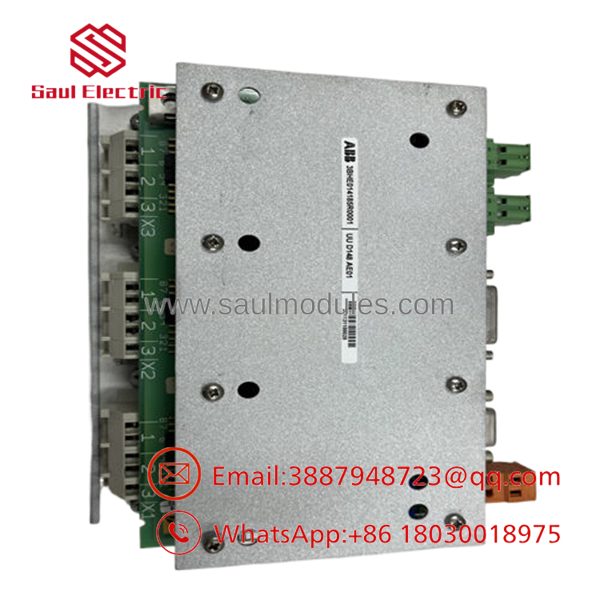

- UUD148AE01 3BHE014185R0001
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- Lock out and tag out the cabinet or subrack. Disconnect primary power. Follow ABB safety procedures for capacitor discharge.
- Wear ESD wrist strap and use ESD-safe work surface. Gather a camera for documentation.
- Critical: Document fiber optic cable positions (Tx/Rx polarity) before disconnection. Identify the board slot position in the subrack.
Stage 2: Removal
- Gently disconnect fiber optic cables from the board. Label each cable end.
- Disengage any front-panel retaining screws or fasteners.
- Carefully pull the board straight out from the backplane connector using the extraction handles. Do not rock side-to-side.
Stage 3: Installation
- Align the new board with the subrack guide rails.
- Press firmly and evenly until fully seated into the backplane connector.
- Secure with retaining screws.
- Reconnect fiber optic cables to the exact ports from which they were removed.
Stage 4: Power-On & Testing
- Re-energize control power. Observe LED status indicators on the board front panel .
- Verify the CPU recognizes the board. Run the self-test or diagnostic routine from the engineering software.
- Confirm I/O functionality by toggling outputs and monitoring inputs from the application code.
Firmware/Software Versions & Upgrade Notes
The UUD148AE01 board works with onboard firmware on the AC 800PEC CPU. The board itself has no field-upgradeable firmware, but the system firmware must be compatible .
Version compatibility note: The board is designed for the AC 800PEC subrack and works with ABB Control Builder M and PCS6000 system software . The AC 800PEC CPU utilizes a 750 MHz RISC processor with 64-bit FPU and supports MATLAB/Simulink model import . Verify the system software version in your installed base before replacement to ensure compatibility.
Critical warning: Only qualified ABB service personnel should handle this board. Always follow ESD precautions. Hot-swapping is not supported.
Frequently Asked Questions (FAQ)
Q: Why is this New Surplus cheaper than ABB list price but more expensive than refurbished units?
A: The price reflects sourcing verified, OEM-origin new units from global inventory. You avoid OEM full retail margin and the hidden failure risk of refurbished stock — degraded opto-isolators, compromised FPGA timing, and latent damage. The cost of a single drive, converter, or generator trip dwarfs the price difference.
Q: Is this module still active or is it EOL?
A: This module remains active for the AC 800PEC installed base, which supports ABB’s PCS6000, ACS6000, and UNITROL systems. Securing a new surplus unit now protects against future lead time increases as ABB focuses on newer platforms.
Q: What systems use this board?
A: The board is used in AC 800PEC-based systems, including PCS6000 wind turbine converters, ACS6000 MV drives, and UNITROL excitation controls.
Q: Does replacement require reloading system parameters?
A: No. Parameters reside on the AC 800PEC CPU. The board is recognized by the CPU after installation. Verify firmware compatibility before replacement.
Q: What is the warranty period and coverage?
A: The module carries a standard 1-year warranty against manufacturing defects. All units are QC-tested before shipment to verify I/O functionality and communication handshake.
