3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 3BHE021083R0101 |
| Module Type | Digital Output / Interface Board |
| Function | Signal processing and control interfacing |
| Application | ABB drives and automation systems |
| Operating Temperature | -20°C to +70°C (typical) |
| Power Consumption | Low power design |
| Mounting | Internal drive or cabinet |
| Reliability | Industrial grade, tested for harsh environments |
4. Product Introduction

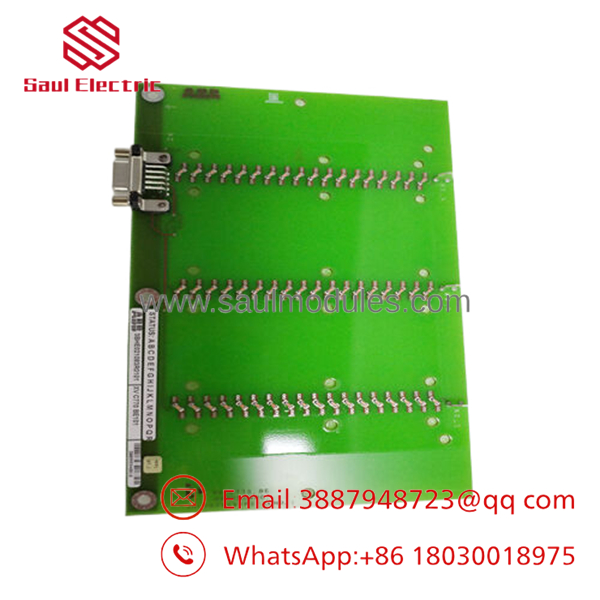

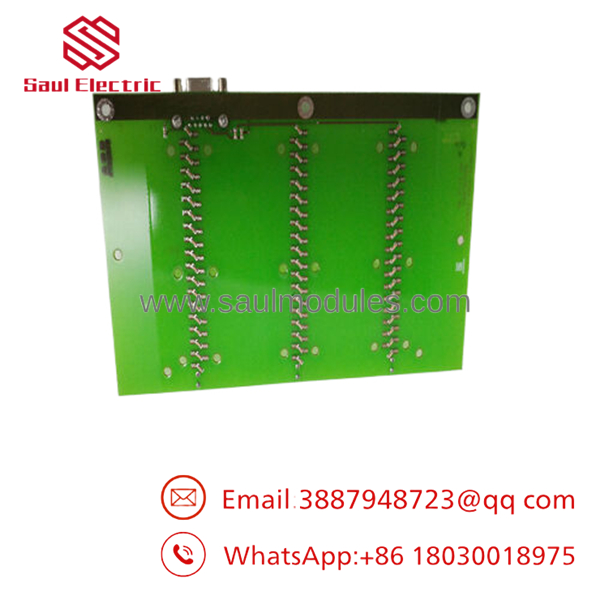

The ABB XVC770BE101 (3BHE021083R0101) is a control circuit board providing digital output and interface functions in ABB drive and automation systems. It handles signal processing and I/O tasks critical for reliable operation.
This board integrates well into existing ABB drive architectures. Technicians value it for straightforward installation and proven field performance in industrial motor control applications.
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No digital outputs | Power or configuration issue | ✅ High | Measure supply voltage and check parameters | Verify drive configuration and power rails |
| Output stuck on/off | Board fault or wiring short | ✅ High | Test outputs with multimeter in offline mode | Isolate wiring; replace if outputs fail |
| Communication loss | Interface problem | ✅ Medium | Check status LEDs and bus diagnostics | Inspect connectors and cables |
| Intermittent operation | Loose connection or heat | ✅ Medium | Visual inspection and thermal check | Reseat board and improve cooling |
| False signals | EMI or grounding | ✅ Medium | Review cable shielding | Reroute cables and confirm grounding |
Capture drive fault logs and output status before contacting support.
- XVC770BE101
- XVC770BE101
6. Frequently Asked Questions (FAQ)
Is the XVC770BE101 hot-swappable? No. De-energize the drive system before removal or installation to avoid damage or safety risks.
What is the main use of this board? It serves as a digital output and interface board in ABB drive systems for control signal handling and I/O expansion.
Is this New Original stock? Yes. New Original / New Surplus units with traceability. Boards are inspected and tested for functionality.
Does it directly replace earlier versions? It does in compatible systems. Match the exact part number and note any configuration settings on the original board.
How do I configure or test it? Use the drive engineering tools to set parameters and run I/O diagnostics. Follow the system manual for output testing procedures.
What warranty is provided? 1-year warranty from shipment on New Original boards covering manufacturing defects under normal conditions.
Why choose surplus for this board? Quicker availability than factory orders. Each board goes through visual inspection, power testing, and I/O verification. Detailed test reports available on request.
