ADVANTEST R6552T-R Digital Multimeter 5½ Digit DMM Tester

Description

Product Introduction & Engineering Value

Measurement uncertainty becomes a serious production issue when test equipment drifts beyond acceptable limits. The ADVANTEST R6552T-R provides a precision 5½-digit measurement platform with high sensitivity, fast sampling, and remote-control capability for engineers maintaining electronic production and verification systems.

This instrument is commonly integrated into automated measurement benches, component evaluation systems, and laboratory setups where repeatability matters. Its GPIB and RS232 interfaces allow engineers to maintain existing test programs without replacing the entire measurement architecture.

Technical Specifications

The R6552T-R supports high-speed sampling, true-RMS AC measurement, automated data collection, and multiple measurement operations including NULL, smoothing, scaling, comparator, and MAX/MIN functions.

Field Application & The “Trench” Experience

A contract electronics manufacturer operating a long-running automated PCB verification station began receiving inconsistent test results during final inspection. The production team initially suspected fixture contacts and probe wear, but calibration checks showed the aging measurement instrument was the actual source of variation.

The maintenance engineer replaced the existing R6552T-R with a verified spare unit, restored the GPIB communication settings, loaded the original test sequence, and repeated calibration checks. Production resumed without redesigning the test platform.

The practical lesson: precision instruments are part of the production process. A replacement multimeter must match both electrical performance and software communication requirements.

Typical applications include:

• Semiconductor component characterization benches
• Automated PCB functional test systems
• Power supply verification stations
• Precision electronic calibration laboratories

Transparency SOP: QA & Testing

A used or surplus ADVANTEST R6552T-R requires more than a cosmetic inspection before entering a critical test environment.

Verification procedure:

1. Physical evaluation
   • Inspect front panel controls and display condition
   • Check input terminals and connectors
   • Verify model identification label
2. Measurement validation
   • Test DC voltage accuracy
   • Verify resistance measurement stability
   • Check AC true-RMS response
   • Confirm range switching operation
3. Communication testing
   • Verify GPIB or RS232 communication
   • Confirm remote command response
   • Validate data output functions

A precision measurement instrument should be shipped only after confirming measurement performance, not simply after confirming that it powers on.

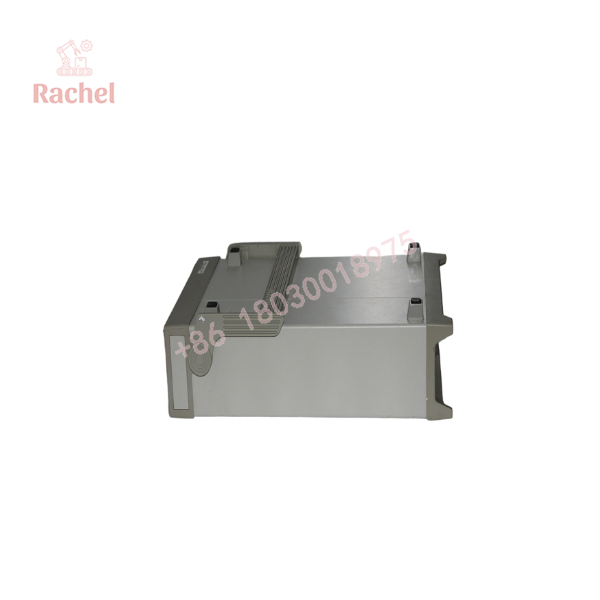

R6552T-R

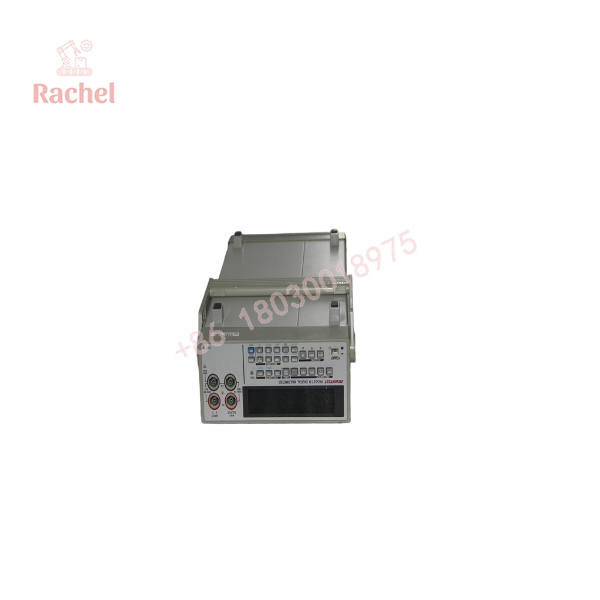

R6552T-R

The Veteran’s Tech Trap Guide

⚠️ Calibration history matters

A multimeter may display readings correctly while still exceeding calibration limits. Always check calibration status before returning an R6552T-R to production testing.

⚠️ Remote interface settings are easy to overlook

Existing automated systems may depend on GPIB address settings, communication parameters, and command sequences. A replacement unit may require configuration before the test software recognizes it.

PRO TIP: Save the original instrument setup parameters before removal. This prevents unnecessary debugging of the test program.

⚠️ Input protection should be verified

Precision DMM input circuits can be damaged by accidental overvoltage events. Inspect protection status before connecting the instrument to expensive test fixtures.

Dynamic FAQ

Q1. What is the ADVANTEST R6552T-R used for?

The R6552T-R is a precision 5½-digit digital multimeter used for electrical measurement in automated test systems, laboratories, and electronic production environments.

Q2. What measurements can the R6552T-R perform?

It supports DC voltage, AC voltage, DC current, AC current, resistance, frequency, and diode measurements.

Q3. Does the R6552T-R support automated testing?

Yes. The instrument includes standard GPIB and RS232 interfaces for remote control and integration with automated measurement systems.

Q4. What should be checked when replacing an R6552T-R?

Verify:

• Calibration condition
• GPIB address and communication settings
• Test software compatibility
• Measurement accuracy requirements
• Input terminal condition

Q5. Is the ADVANTEST R6552T-R still manufactured?

The R6552 series is a legacy ADVANTEST instrument family. Availability generally depends on remaining inventory, refurbished units, and specialized test equipment suppliers.

Q6. Are refurbished R6552T-R units tested before shipment?

A qualified refurbished unit should undergo power-up checks, measurement verification, interface testing, and functional inspection before being supplied as a replacement instrument.

Q7. What warranty applies to a surplus R6552T-R?

Warranty terms depend on supplier testing procedures and product condition. Industrial test equipment suppliers typically provide limited functional warranty coverage for tested surplus or refurbished instruments.
