Alcatel-Lucent 8DG09183AA PFC Power Filter

Description

Product Introduction & Engineering Value

The Alcatel-Lucent 8DG09183AA 01 is a shelf-level power component for the 1830 PSS-36, rather than an optical transponder or service card. Its job sits underneath the network traffic: power conditioning and distribution have to be correct before the optical and control cards can operate normally.

The PSS-36 architecture uses dedicated power modules and power-filter hardware. Alcatel-Lucent’s 1830 PSS documentation identifies two power modules (PF) as mandatory equipment in the PSS-36 shelf.

Technical Specifications

The 1830 PSS-36 is a large photonic transport shelf with up to 18 full-height slots and 32 switch-capable half-height slots. Its documented mandatory equipment includes two power modules (PF) and a fan module.

Important distinction

Do not classify this part as a generic “power supply.” The available equipment description specifically calls it a PFC Power Filter Distribution Module, which is a more precise description of its role in the shelf power architecture.

Field Application & the “Trench” Experience

A realistic failure scenario is a node that begins generating shelf-level power alarms while the installed transponders and optical modules remain operational. An engineer tracing the fault discovers that the problem is upstream of the service cards and eventually isolates the PFC/power-filter distribution hardware.

This is where the 8DG09183AA 01 becomes a maintenance spare rather than a network-capacity component. The correct replacement must match the shelf’s power architecture. Swapping in a visually similar power-related module from another 1830 PSS variant is not a sensible shortcut.

Specific applications

1. 1830 shelf power distribution — support the electrical power path serving the shelf’s installed circuit packs.
2. Telecom DWDM node maintenance — replace failed shelf power-filter hardware without redesigning the optical node.
3. preventive spare inventory — hold the module as a shelf-level contingency component where prolonged power faults could affect multiple optical cards.

Alcatel-Lucent’s product documentation confirms that the has dedicated power-module positions and that its mandatory shelf equipment includes two PF modules.

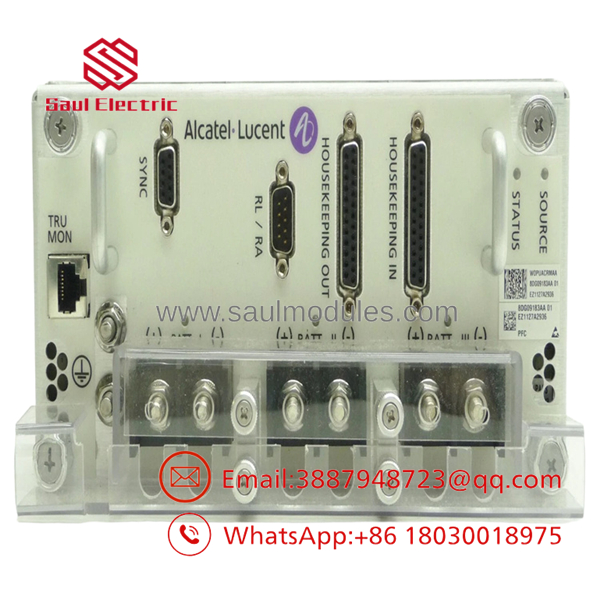

8DG09183AA

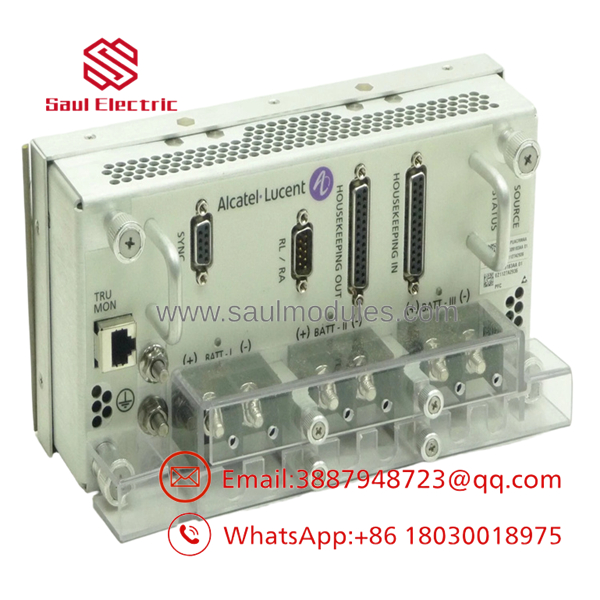

8DG09183AA

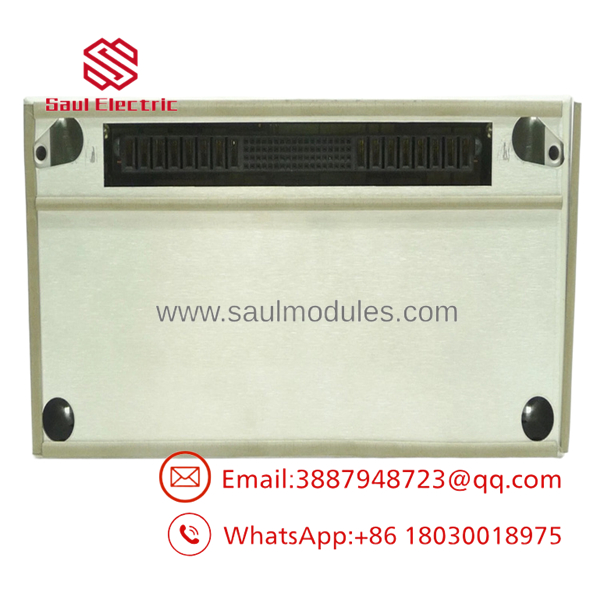

8DG09183AA

Transparency SOP — QA & Testing

For New Surplus or refurbished stock, I would treat this component as an electrical maintenance item and inspect it accordingly:

Identity

• Confirm 8DG09183AA.
• Confirm revision 01.
• Verify the Alcatel-Lucent label and serial information where present.

Physical condition

• Inspect power connectors for discoloration, arcing marks, bent contacts, or contamination.
• Check the housing and mounting hardware for deformation.
• Look for evidence of overheating around connector and power-contact areas.

Electrical verification

• Where the appropriate test environment exists, verify correct installation and shelf recognition.
• Confirm the expected power path and alarm state.
• Check for abnormal heating or electrical fault indications during controlled operation.

Documentation

Record the exact part number, revision, serial number, inspection results, and stock condition. This is particularly important because a marketplace listing currently identifies this exact part as pre-owned, not New Surplus.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Calling it a generic PSU

The 8DG09183AA 01 is identified as a PFC Power Filter Distribution Module. Don’t order a generic PSS power supply simply because the failed component is associated with shelf power.

PRO TIP: Put the complete identifier on the procurement request:

Alcatel-Lucent 1830 — 8DG09183AA — Rev. 01 — PFC Power Filter Distribution Module

⚠️ Trap #2 — Ignoring the shelf model

The 1830 family includes multiple shelf architectures. The documentation specifically describes different /PSS-32/PSS-16 hardware configurations and warns that not every card/module is targeted for every shelf.

⚠️ Trap #3 — Installing or removing it without considering shelf power state

This is power-distribution hardware. Treat the replacement procedure as an electrical maintenance operation, not like replacing a passive optical module. Follow the applicable 1830 PSS service procedure and site lockout/tagout requirements.

⚠️ Trap #4 — Assuming revision 01 is interchangeable with every revision

If your failed unit is marked with a different hardware revision, verify the approved replacement relationship first. Do not infer interchangeability from physical appearance alone.

Dynamic FAQ

Q1. What is Alcatel-Lucent 8DG09183AA 01?
It is a PFC Power Filter Distribution Module associated with the Alcatel-Lucent 1830 shelf.

Q2. Is 8DG09183AA an optical transponder?
No. It is a shelf-level power component. It does not provide an optical transport or client-service interface.

Q3. How many power modules does the architecture use?
Alcatel-Lucent’s documentation specifies two PF power modules as mandatory shelf equipment.

Q4. Can I use a power module from another 1830 PSS shelf?
Do not assume compatibility. Verify the exact shelf architecture, part number, hardware revision, and approved BOM before substitution.

Q5. Is 8DG09183AA 01 available as New Surplus?
Condition varies by supplier. A current marketplace listing identifies an exact 8DG09183AA 01 unit as pre-owned, so a supplier claiming New Surplus should provide label photographs, serial/traceability information, condition confirmation, and warranty terms.

Q6. What should I include on a replacement RFQ?
Specify Alcatel-Lucent 1830 , 8DG09183AA, Rev. 01, PFC Power Filter Distribution Module, together with the required stock condition, test requirements, warranty period, and DOA/return terms.
