Description
Product Introduction & Engineering Value
When a large motor drive fails, replacing the entire VFD is not always the most practical repair path. The Allen-Bradley 1336-BDB-SP31D is a gate driver circuit board designed for legacy 1336 adjustable frequency drives, providing the switching control interface required between the drive control electronics and power semiconductor section.
This board is commonly maintained as a critical spare in plants operating older 1336 platforms. A failed gate driver board can cause drive faults, loss of motor control, or complete drive shutdown, making verified replacement inventory valuable for minimizing production interruptions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Part Number | 1336-BDB-SP31D |
| Product Type | Gate Driver Printed Circuit Board |
| Drive Family | Allen-Bradley 1336 Series |
| Compatible Drives | 1336 PLUS, PLUS II, FORCE, IMPACT, REGEN |
| Voltage Class | 460 VAC |
| Horsepower Rating | 125 HP |
| Power Rating | Approximately 93 kW |
| Operating Frequency | 50–60 Hz |
| Frame Compatibility | Frame sizes A, B, C, D, and E |
| Board Quantity per Drive | One gate driver board |
| Replacement Category | Legacy VFD repair component |
([turn0search0]turn0search6)
Field Application & The “Trench” Experience
A steel processing facility operating a large conveyor system experienced repeated drive trips during acceleration. The motor, feedback devices, and mechanical load checked correctly, but the Allen-Bradley 1336 drive would intermittently fault before reaching operating speed.
Maintenance technicians inspected the power section and found abnormal gate switching behavior. Instead of replacing the complete 125 HP drive assembly, the team replaced the failed 1336-BDB-SP31D gate driver board, performed insulation checks, verified parameter settings, and completed a controlled motor startup test.
The conveyor returned to production with the original drive configuration preserved.
Typical application scenarios include:
- Large Conveyor Motor Drives
- Maintaining speed control for material handling systems.
- Pump and Fan VFD Applications
- Supporting legacy variable frequency drives in continuous-duty installations.
- Heavy Industrial Drive Repair
- Restoring 460 VAC Allen-Bradley 1336 systems where replacement drives require engineering changes.

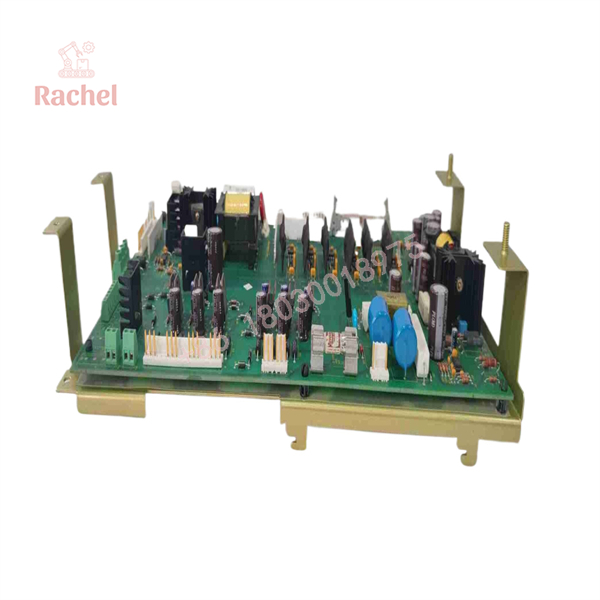

1336-BDB-SP31D

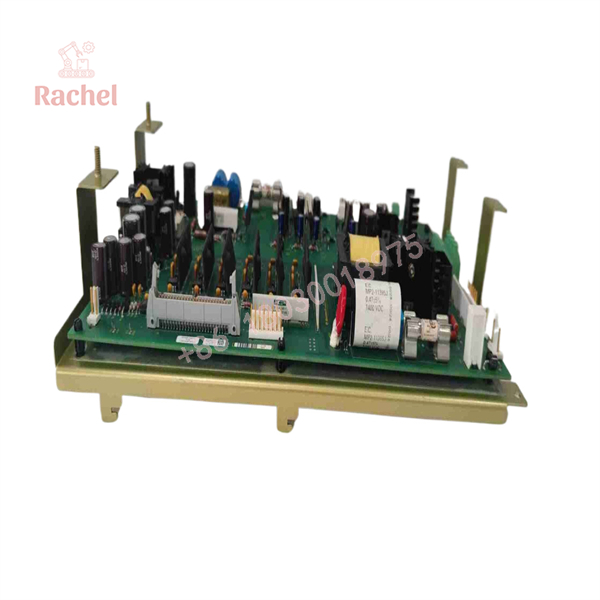

1336-BDB-SP31D
Transparency SOP: QA & Testing
A proper evaluation process for a New Surplus or Refurbished 1336-BDB-SP31D includes:
Inspection Sequence
- Part Authentication
- Verify Allen-Bradley label and part number.
- Confirm revision markings.
- Compare board layout with known specifications.
- Physical Examination
- Inspect PCB traces, connectors, and mounting points.
- Check for burned components, corrosion, or contamination.
- Electrical Screening
- Test board continuity where applicable.
- Inspect gate driver circuitry and connector interfaces.
- Drive-Level Validation
- Install in a compatible 1336 drive platform.
- Verify fault-free startup.
- Test motor acceleration and switching performance.
The Veteran’s Tech Trap Guide
⚠️ Do Not Replace Only the Board Without Checking the Power Section
A failed gate driver board is sometimes a symptom of damaged IGBT modules or power components. Installing a replacement board into a damaged power stage can result in immediate failure.
⚠️ Match the Voltage and Horsepower Rating
The 1336-BDB-SP31D is associated with 460 VAC, 125 HP applications. Similar-looking 1336 boards may not have the same drive ratings.
PRO TIP: Before powering up after replacement, perform DC bus checks and insulation testing. A five-minute electrical verification can prevent another board failure.
⚠️ Record Drive Parameters Before Repair
Legacy 1336 drives often contain application-specific settings. Save parameter information before replacing hardware.
Dynamic FAQ
Q1. What is the Allen-Bradley 1336-BDB-SP31D used for?
The 1336-BDB-SP31D is a gate driver circuit board used in Allen-Bradley 1336 adjustable frequency drives.
Q2. Which drives use the 1336-BDB-SP31D?
It is designed for compatible 1336 PLUS, PLUS II, FORCE, IMPACT, and REGEN drive families.
Q3. What are the main ratings for this board?
The board is associated with 460 VAC drive applications and approximately 125 HP ratings.
Q4. Is the 1336-BDB-SP31D still supported by Rockwell Automation?
The 1336 drive family is a legacy platform, and this spare part is typically sourced through surplus, repair, or aftermarket channels.
Q5. What should buyers verify before purchasing New Surplus inventory?
Confirm:
- Exact part number
- Board revision
- Drive model compatibility
- Storage condition
- Inspection or test documentation
Q6. Can refurbished 1336-BDB-SP31D boards be used in production equipment?
Yes. Refurbished boards can be suitable when they have passed electrical inspection, compatibility verification, and operational testing before installation.
