Allen-Bradley 1394-SR9A 300W 4-Ohm External Shunt Resistor Module

Description

Product Introduction

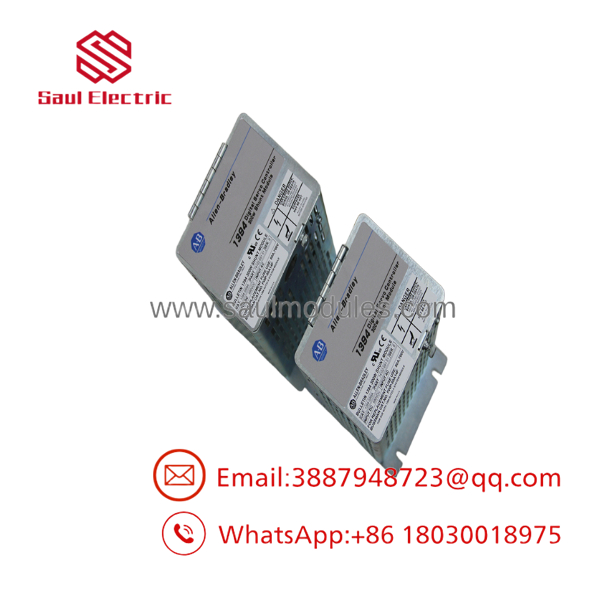

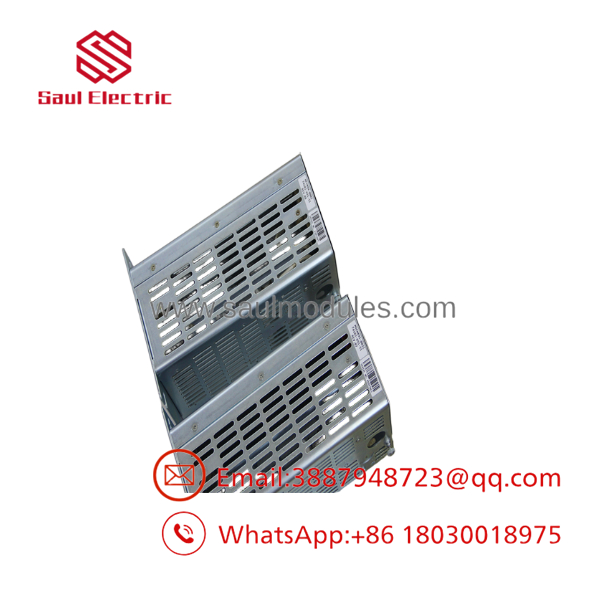

The Allen-Bradley 1394-SR9A is an external passive shunt resistor module designed for the Bulletin 1394 Digital AC Multi-Axis Motion Control System. Connected directly across the shared DC bus of 1394 system modules (such as the 1394C-SJTxx series powering 1394C-AM75-IH axis drives), it absorbs and bleeds off excess kinetic kinetic energy converted back into electrical voltage during high-inertia motor deceleration.

When aggressive deceleration profiles or high rotational inertia exceed the energy dissipation capacity of the 1394 system module’s internal shunt circuit, the 1394-SR9A safely clamps the DC bus voltage. Housed in a heavy-duty, panel-mounted protective enclosure designed for natural convection cooling (no external cooling fan required), it prevents overvoltage trips (E-05 DC Bus Overvoltage) and protects sensitive power IGBTs in connected axis drives.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It is 3:15 AM on a high-speed gantry packaging line. A 1394 multi-axis drive rack running a 1394C-AM75-IH high-output axis keeps dropping offline on Bus Overvoltage every time the main gantry executes an emergency stop ramp. The maintenance team finds that the internal shunt resistor can’t dissipate the kinetic energy fast enough, causing the 600V DC bus to spike above 800V. Mounting a 1394-SR9A external shunt module next to the 1394 rack and wiring it to the shunt terminals provides the extra 300W dissipation capacity needed to clamp the voltage surge and keep the production line running without faulting.

• High-Inertia Servo Axes – Flying Shears & Rotary Cutters – Dissipates high regenerative energy spikes during repetitive, rapid deceleration cycles.
• Vertical Lift & Hoist Applications – Gravity-Loaded Motors – Safely absorbs continuous negative torque generated when lowering heavy mechanical loads.
• Multi-Axis Servo Racks – Combined System Dissipation – Supplements the central system module (1394C-SJT) on racks powering multiple high-amp axis drives (AM50 / AM75).

1394-SR9A

1394-SR9A

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we bench-test them under live high-voltage load conditions.

1. Inbound Visual & Housing Audit: Inspection of heat sink fins, mounting flanges, terminal block screws, and metal housing panel integrity.
2. Resistance & Continuity Test: Precision milliohm-meter verification to confirm internal resistor element is exactly 4 Ω with zero thermal resistance drift.
3. Internal Fuse Inspection: Verified high-speed semiconductor DC fuse continuity and correct Bussmann amperage rating.
4. Insulation Breakdown Test (Megger Check): High-voltage Megger tested at 1000 VDC between the shunt power terminals and the metal chassis ground (≥ 100 MΩ required).
5. ESD & Protective Packaging: Cleaned, sealed in heavy static-shielding wrap, and packaged inside shock-resistant foam crates.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Do NOT Exceed 3 Meters (10 Feet) Cable Length!

  The high-power DC cable connecting the 1394- to the 1394 system module carries steep high-frequency voltage pulses when the shunt transistor switches on. Keep wire runs under 3.05 m (10 ft) using 8 AWG shielded wire. Excessive cable length introduces line inductance that generates voltage spikes, damaging the shunt switching IGBT.

• ❗ Allow Vertical Mounting Clearance for Natural Convection!

  The 1394- relies on natural air convection to dissipate up to 300W of heat. Mount the unit vertically on an enclosure panel with at least 150 mm (6 inches) of clearance above and below the heat sink fins. Never mount it horizontally or directly underneath heat-sensitive PLCs or axis drive modules!

• ⚠️ Verify Internal Fuse Style Before Powering Up

  If an overvoltage fault blew the internal fuse on your old shunt module, replace it only with the OEM-specified Bussmann high-speed semiconductor fuse (e.g., FWP50A14F for UL-marked units). Standard slow-blow or glass fuses will explode under 600V DC inductive switching arcs.

• ❗ Hot Surface Hazard!

  During continuous decelerations, the metal housing of the 1394- can reach temperatures above 100°C (212°F). Ensure warning labels are visible and route motor control wiring away from physical contact with the resistor shell.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the difference between 1394- and 1394-SR9AF?

A: The 1394- is a natural convection-cooled module (no fan required), whereas the 1394-SR9AF includes an integrated 115V/230V forced-air cooling fan and thermal switch for applications requiring higher thermal dissipation in tight enclosures.

Q: Can I use the 1394- with Kinetix 6000 or Ultra 3000 drives?

A: Yes. While originally designed for the 1394 Digital AC Multi-Axis system, the 1394- passive 4-ohm 300W resistor module is cross-compatible with other Rockwell/Allen-Bradley motion platforms (like Kinetix 6000 / Bulletin 2090 accessories) requiring a 4 Ω external shunt.

Q: Does the 1394- include a built-in thermal overload switch?

A: Standard 1394- modules rely on internal high-speed semiconductor fuses for short-circuit protection. Forced-air variants (like SR9AF or SR36AF) feature dedicated thermal switch contacts to wire into a control safety circuit.

Q: Are these units brand new from Rockwell Automation?

A: Rockwell Automation officially discontinued the 1394 product line and accessories. We maintain inventory of high-grade New Surplus (unused factory spares) and fully bench-tested, refurbished original Allen-Bradley 1394- modules.

Q: What warranty comes with this shunt module?

A: Every Allen-Bradley 1394- external shunt module includes a full 12-month replacement warranty. If the resistor element or internal fusing fails under normal operating conditions within one year, we replace it directly from stock.
