Description
Product Introduction & Engineering Value
The 140G-M6X3 is the mechanical and current-carrying foundation of an Allen-Bradley Bulletin 140G MCCB assembly. It is a 3-pole, 800 A M-frame, but the base catalog number does not itself define the complete overcurrent protection characteristics because the trip unit is selected separately.
That distinction is critical during procurement. Rockwell lists the base device as “Adjustment Type: Frame Only” and specifies thermal-magnetic/electronic protection as a family capability rather than indicating that a particular trip unit is included with this catalog number.
Technical Specifications
| Specification | 140G-M6X3 |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Bulletin | 140G |
| Frame | M |
| Frame Current | 800 A |
| Poles | 3 |
| Configuration | Frame only |
| UL Voltage Class | Up to 600 VAC |
| UL Interrupting Rating | 65 kA @ 480 VAC |
| IEC Icu | 70 kA @ 415 VAC |
| IEC Icu | 22 kA @ 690 VAC |
| IEC DC Application | Up to 750 VDC with 3 poles in series, depending on trip-unit configuration |
| Rated Insulation Voltage | 800 V RMS |
| Protection | Trip-unit dependent |
| Standards | UL 489, CSA 22.2 No. 5, IEC |
| Country of Origin Listed by Rockwell | Italy |
| UPC | 885630443478 |
| Lifecycle | Active |
Rockwell’s technical data confirms the 800 A M-frame platform and provides the applicable AC/DC interrupting data for the 800 A 100%-rated frame family. The exact short-circuit protection characteristics must be evaluated together with the selected trip unit.
Important: Frame vs. Complete Breaker
140G-M6X3 is not the same thing as a fully configured protective breaker.
The catalog number identifies the M-frame, 800 A, three-pole frame. A complete installation normally requires the appropriate trip unit and any required accessories.
Rockwell’s own product page describes the adjustment type as Frame Only.

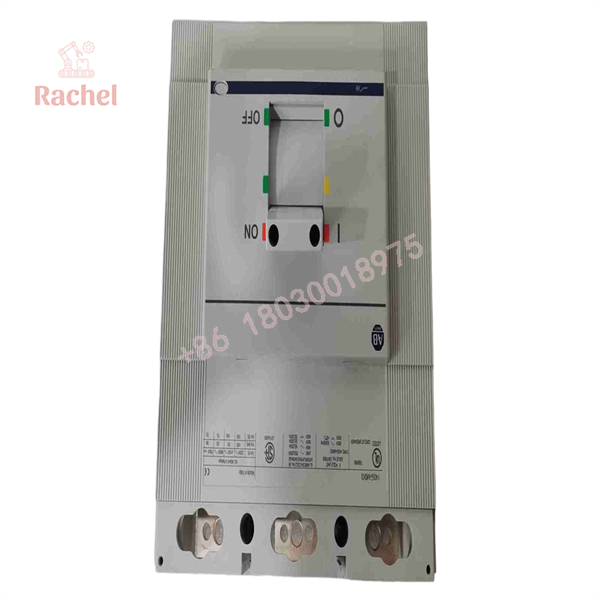

140G-M6X3
Field Application & “Trench” Experience
Field Scenario: Main Feeder Breaker Replacement
A manufacturing plant has an aging 800 A feeder breaker supplying a large MCC. During a planned outage, maintenance discovers mechanical wear in the existing MCCB assembly.
The replacement request comes through purchasing as:
“Allen-Bradley 140G-M6X3, 800 A breaker.”
That description is incomplete.
Before ordering, engineering should identify:
- Existing trip-unit catalog number.
- Thermal-magnetic vs. electronic trip technology.
- Long-time pickup and delay.
- Short-time protection requirements.
- Instantaneous pickup.
- Ground-fault requirements, if applicable.
- Voltage and system fault-current level.
- Existing accessories.
- Terminal configuration.
- Enclosure and mounting arrangement.
If purchasing supplies only the 140G-M6X3 frame, the plant may receive the correct mechanical frame but still lack the overcurrent-protection hardware needed for service.
Niche Applications
- 800 A MCC feeder protection in large industrial motor-control centers.
- Plant main distribution feeders where a 3-pole high-current MCCB is required.
- Process-plant power distribution serving large drives, MCCs, and auxiliary switchgear.
- Industrial utility distribution panels where Bulletin 140G accessories and trip units are already standardized.
QA & Testing SOP
For a New Surplus or Refurbished 140G-M6X3, inspection should focus heavily on the mechanical frame because the catalog number itself does not identify the installed trip unit.
1. Catalog Identity
Verify:
- 140G-M6X3
- Bulletin 140G
- M-frame
- 800 A
- 3-pole configuration
- Manufacturer markings
- Serial/date information where available
2. Mechanical Inspection
Check:
- Main terminals
- Line/load connection surfaces
- Operating mechanism
- Toggle/handle mechanism
- Molded insulation
- Pole barriers
- Mounting points
- Evidence of arcing
- Cracks or carbonization
- Signs of overheating
3. Trip-Unit Verification
This is the most important procurement step.
Document the actual trip unit installed with the frame, if one is supplied. Confirm its:
- Catalog number
- Protection technology
- Current rating
- Long-time setting
- Short-time setting
- Instantaneous setting
- Ground-fault capability
- Revision
A seller should not advertise a complete “140G-M6X3 breaker” while omitting the fact that the base catalog number is frame-only.
4. Mechanical Functional Test
Verify:
- ON/OFF operation
- Trip mechanism operation
- Reset mechanism
- Pole synchronization
- Mechanical interlocks
- Accessory operation where installed
5. Electrical Testing
For a complete configured breaker, qualified personnel should perform appropriate:
- Insulation resistance testing
- Contact-resistance testing
- Trip-unit functional testing
- Primary-injection testing where required
- Dielectric testing according to the applicable maintenance procedure
For high-energy equipment, testing should be performed under the plant’s electrical-safety program by appropriately qualified personnel.
⚠️ Veteran’s Tech Trap Guide
⚠️ Trap #1 — Buying the frame when you need the complete breaker
This is the biggest issue with 140G-M6X3.
The base part is frame only. Rockwell explicitly lists the adjustment type as “Frame Only.”
If a plant requires a complete functioning MCCB, the trip unit and required accessories must be specified separately.
⚠️ Trap #2 — Assuming every M-frame trip unit has the same protection settings
The 140G platform supports different protection technologies and configurations. The frame itself does not establish the actual trip curve.
PRO TIP: Photograph the existing trip-unit label before ordering a replacement frame or complete breaker assembly.
⚠️ Trap #3 — Using the 65 kA rating without checking voltage
The commonly quoted 65 kA value applies at 480 VAC for the relevant UL configuration. Interrupting capacity changes with system voltage and standards basis. Rockwell’s technical data shows different values at 240, 480, and 600 VAC.
⚠️ Trap #4 — Confusing 140G-M6X3 with 140G-M6X3-Z1
These are not simply interchangeable suffix variations. Rockwell lists 140G–Z1 as an 800 A, M-frame, 100%-rated configuration with 70 kA IEC breaking capacity at 415 V and 65 kA UL interrupting rating at 480 V.
Lifecycle & Spare-Inventory Strategy
Unlike many of the legacy Quantum automation components in this product range, the 140G-M6X3 is currently listed by Rockwell Automation as Active. Rockwell’s current page also shows an estimated lead time of approximately five days and a standard one-year warranty.
That changes the inventory strategy.
For an installed 140G power-distribution system:
- Record the complete breaker configuration, not just 140G-M6X3.
- Maintain the correct trip-unit catalog number separately.
- Record accessory combinations such as auxiliary contacts, shunt trip, undervoltage release, or motor operator where applicable.
- Maintain the manufacturer’s interrupting-rating documentation.
- Verify the plant’s available short-circuit current before selecting the final breaker configuration.
- Keep one complete tested assembly for critical feeders where downtime costs are high.
Procurement Control
A good purchase description should look more like:
Allen-Bradley Bulletin 140G, M-frame, 800 A, 3-pole, 140G-M6X3 frame + specified trip unit + specified accessories
rather than simply:
“140G-M6X3 breaker.”
That difference prevents a common and expensive procurement error.
Dynamic FAQ
What is the Allen-Bradley 140G-M6X3?
It is an 800 A, 3-pole M-frame molded case circuit breaker frame in the Allen-Bradley Bulletin 140G family. The base catalog number is a frame-only configuration.
Does 140G-M6X3 include a trip unit?
No. Rockwell specifies the catalog number as Frame Only. A compatible trip unit must be selected to establish the actual overcurrent-protection characteristics.
What is the interrupting rating?
The Rockwell product listing specifies 65 kA at 480 VAC. The IEC breaking capacity is 70 kA at 415 VAC for the applicable 800 A frame configuration.
How many poles does the 140G-M6X3 have?
It is a 3-pole M-frame device.
Is 140G-M6X3 still available?
Rockwell currently lists the product as Active. Its U.S. product page currently shows an estimated five-day lead time, although actual availability can vary by configuration and region.
Is 140G-M6X3 the same as 140G-M6X3-Z1?
No. Rockwell lists 140G–Z1 separately and identifies it as a 100%-rated configuration. Do not substitute the suffix variant without checking the required ratings and installation requirements.
Is New Surplus 140G-M6X3 worth buying?
It can be, particularly as a strategic spare for an installed 800 A Bulletin 140G system. However, verify whether the purchase is frame only or includes the exact trip unit and accessories required by the plant.
What warranty applies to a surplus or refurbished unit?
Rockwell’s current product page lists a one-year standard warranty for its product, but secondary-market New Surplus and Refurbished units may carry supplier-specific terms. The actual seller’s warranty should be confirmed in writing before purchase.
Bottom Line
Allen-Bradley 140G-M6X3 is an active Bulletin 140G 800 A, 3-pole M-frame molded case circuit breaker frame. It carries a 65 kA UL interrupting rating at 480 VAC, while the applicable IEC configuration reaches 70 kA at 415 VAC.
The critical procurement detail is simple: 140G-M6X3 is a frame-only catalog number. The trip unit determines the actual protection characteristics, so a replacement order should identify the complete breaker configuration rather than relying on the frame number alone.
