Allen-Bradley 1440-TB-H XM Terminal Base

Description

Product Introduction & Engineering Value

A vibration monitoring system is only as reliable as the connection between the sensor and the measurement module. The 1440-TB-H terminal base provides that critical interface point for XM monitoring installations, allowing maintenance teams to connect field wiring while retaining the modular design of the XM platform.

For plants operating legacy machinery protection systems, this terminal base is often the forgotten spare. The XM module may receive attention during troubleshooting, but a damaged terminal base, loose screw connection, or degraded interface can create unstable vibration readings and unnecessary equipment alarms.

Technical Specifications

Rockwell Automation lists the 1440-TB-H as an XM Series screw clamp terminal base with DeviceNet interface. The product was discontinued by the manufacturer, making surplus and refurbished inventory important sources for maintaining installed systems.

Field Application & The “Trench” Experience

A chemical processing facility was monitoring a large centrifugal compressor using an Allen-Bradley XM vibration monitoring system. Operators began seeing intermittent vibration alarms even though field measurements showed the machine was mechanically healthy.

The maintenance team traced the problem to the terminal connection area. Years of cabinet vibration had affected the field wiring interface, creating unstable signal transmission between the vibration probes and the XM monitoring module. Replacing the worn 1440-TB-H terminal base restored stable sensor readings and eliminated false shutdown events.

Common application scenarios include:

1. Compressor Machinery Protection Systems
   Connection point for vibration probes monitoring radial vibration, axial position, and speed signals.
2. Large Pump Condition Monitoring
   Interface base for rotating equipment predictive maintenance systems.
3. Turbine Auxiliary Equipment Monitoring
   Used in machinery health systems requiring continuous vibration signal acquisition.

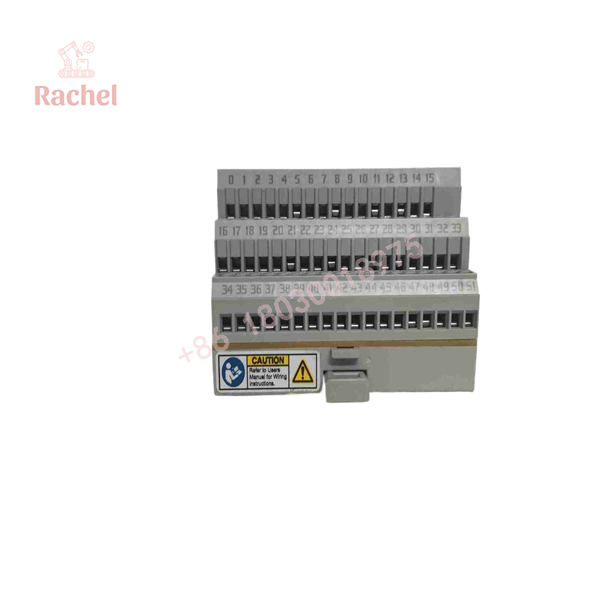

1440-TB-H

1440-TB-H

Transparency SOP: QA & Testing

A proper inspection process for a 1440-TB-H spare should include:

1. Mechanical Inspection

• Verify Allen-Bradley label and catalog number.
• Inspect screw terminals for damage.
• Check DIN rail mounting clips and side connectors.

2. Electrical Verification

• Confirm terminal continuity.
• Check connector integrity.
• Inspect DeviceNet interface contacts.

3. Final Preparation

• Clean external surfaces.
• Package in ESD-safe material.
• Record inspection status and inventory condition.

The Veteran’s Tech Trap Guide

⚠️ Do not replace only the XM module when the problem is wiring-related.
Many vibration faults originate from loose terminal connections, damaged terminal bases, or poor sensor wiring.

⚠️ Verify XM module compatibility before installation.
The 1440-TB-H is designed for specific XM monitoring modules. It is not a universal terminal base for every Rockwell measurement module.

PRO TIP:
Before removing the old terminal base, label every sensor cable. Vibration systems often use multiple similar-looking inputs, and a single channel swap can create misleading machinery diagnostics.

⚠️ Avoid live replacement.
Rockwell documentation warns that removing or installing XM terminal components while powered can create electrical hazards and unintended operation.

Dynamic FAQ

1. What is the Allen-Bradley 1440-TB-H used for?

The 1440-TB-H is an XM Series screw clamp terminal base used to connect field wiring to compatible vibration monitoring modules.

2. Which modules are compatible with the 1440-TB-H?

The terminal base is designed for XM-16x series monitoring modules, including XM-160, XM-161, and XM-162 style applications.

3. Is the 1440-TB-H still manufactured?

No. Rockwell Automation has listed the 1440-TB-H as discontinued, so industrial users typically source replacements through surplus or refurbished inventory channels.

4. Can the 1440-TB-H replace other XM terminal bases?

Not automatically. XM terminal bases are matched to specific measurement modules and applications. Confirm the exact catalog number before replacement.

5. What should be checked when replacing a 1440-TB-H?

Verify:

• Existing XM module model
• Terminal wiring diagram
• DeviceNet connection
• Sensor channel assignments
• Mounting arrangement

6. Does New Surplus 1440-TB-H include warranty coverage?

New Surplus units are unused industrial inventory items. Warranty depends on the supplier’s inspection process and commercial warranty terms. Refurbished units typically include supplier-backed testing and warranty options.
