Allen-Bradley 1747-L532 SLC 500 SLC 5/03 CPU 16K

Description

Product Introduction

The Allen-Bradley 1747-L532 is a central processing unit for the modular SLC 500 system architecture, commonly known as the SLC 5/03 controller. Built with 16K of configurable instruction and data memory, this processor manages discrete, analog, and specialty I/O modules across local and expansion racks in mid-sized industrial automation control systems.

Unlike lower-tier entry processors in the SLC family (such as the 5/01 or 5/02), the 1747-L532 features a dedicated RS-232 serial communication port that supports DF1 full-duplex, Modbus RTU master/slave, and ASCII protocols alongside its primary DH-485 network port. This dual-communication interface enables direct HMI panel connections, modem telemetry setups, or barcode reader integration without requiring expensive external comm modules.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 2:30 AM on a critical production run, and the main packaging line goes completely dark because the CPU’s battery failed during a facility power blip, wiping the volatile RAM on an unbacked-up 1747-L532 processor. The plant is losing $3,000 every hour in unproduced product. You need a pre-tested replacement CPU module immediately, along with an engineer who knows how to re-establish DF1 driver baud rates and reload the ladder logic program before the morning shift arrives.

• Material Handling & Conveyors – Sortation and routing control – Handles high-density discrete I/O scans across multi-chassis layouts.
• Water & Wastewater Treatment – Remote lift stations and filtration control – Uses RS-232 channel for radio modem telemetry data logging.
• Industrial Chemical Processing – Batch mixing and tank level monitoring – Executes timed PID closed-loop control blocks with low scan overhead.
• Stamping & Metal Fabrication – Automated press feeder lines – Interlocks safety circuits and part-present sensor grids directly to local I/O cards.

Field Case Study

A food processing facility in Wisconsin experienced an unexpected processor lockup (CPU fault code 0020h) on a 1747-L532 driving a commercial baking oven line after a severe lightning strike. The OEM estimated six weeks for a control panel redesign to CompactLogix hardware. We pulled a fully bench-tested 1747-L532 processor from inventory, verified firmware revisions on our test rack, and courier-shipped it overnight. The site technician plugged in the CPU, burned the backup project file from the 1747-M11 EEPROM memory card, and had the oven line up and running within 30 minutes.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Allen-Bradley SLC 500 test racks:

1. Inbound Mechanical Inspection: Check plastic housing latches, front key-lock switch, pin connectors, and PCB surfaces for heat damage.
2. Backplane & Bus Power Test: Install unit into a 1747-A10 chassis; verify internal power rail health and status LED self-tests (RUN, FAULT, BAT, FORCE, DH485, RS232).
3. Dual Communication Port Audit: Establish active communication links over both the RJ45 DH-485 port and the DB9 RS-232 port using RSLogix 500 and RSLinx classic drivers.
4. I/O Expansion & Scan Test: Run complex ladder logic routines while scanning full discrete and 1746-NI8 analog I/O rack configurations.
5. Memory & Battery Verification: Verify NVRAM retention with a fresh 1747-BA battery and test program loading/clearing cycles via EEPROM sockets.
6. ESD & Protective Packaging: Clean front faceplate, set keyswitch to PROG mode, wrap in static-shielding film, and package inside heavy foam boxes.

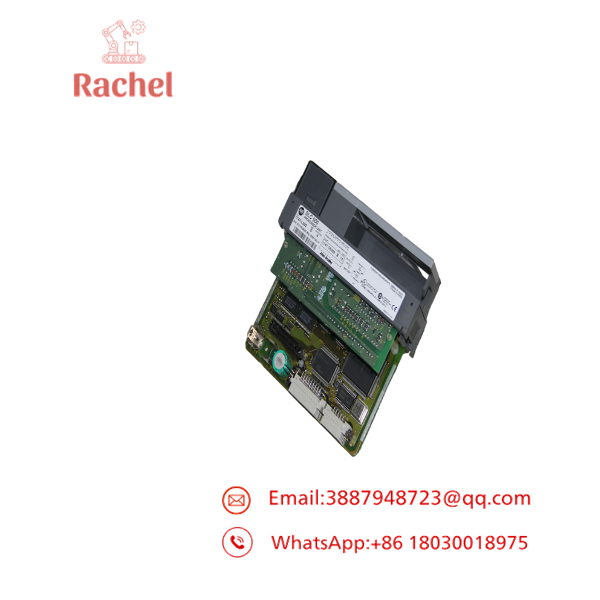

1747-L532

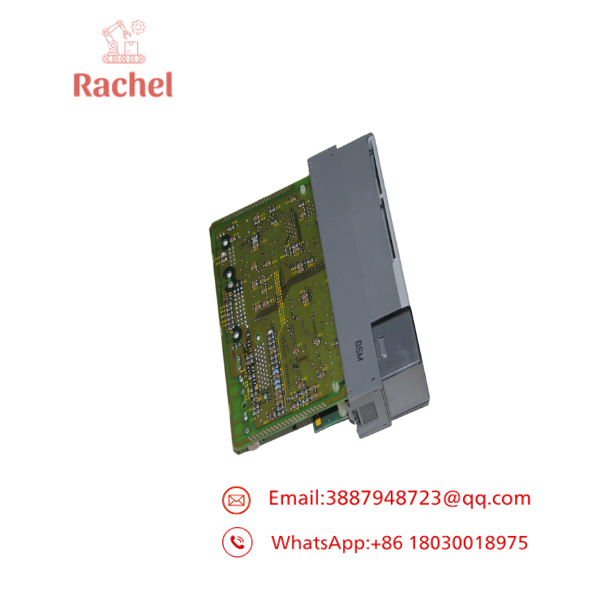

1747-L532

The Veteran’s Tech Trap Guide

• ⚠️ Watch out for RS-232 Cable Pinouts: The DB9 port on the 1747-L532 is wired as a DCE/DTE interface that requires a proper null-modem cable (like the Allen-Bradley 1747-CP3 or 2711-NC13) to talk to a PC serial port. Plugging in a standard straight-through serial cable will result in RSLinx driver errors every single time.
• ❗ Never Force the Key-Lock Switch: The front 3-position mode switch (RUN, PROG, REM) is delicate. If the plastic key is turned with channel locks or excessive force, the internal rotary switch contacts break, locking the processor permanently in RUN or PROG mode.
• ⚠️ Check Firmware Compatibility (OS302): Earlier firmware revisions of the 1747-L532 may not support certain expanded instruction sets or passthrough routing options available in later OS302 series C or D releases. Check your program file’s OS requirements in RSLogix 500 before commissioning.
• ❗ Always Install a Fresh Battery: The 16K RAM inside the 1747-L532 is volatile. If you turn off cabinet power without a good 1747-BA lithium battery connected (or an EEPROM module installed), the ladder program vanishes completely. Replace the battery every 2 years regardless of the BAT LED status.

Frequently Asked Questions

Q: Can I replace a 1747-L531 (SLC 5/03 8K) with a 1747-L532 (SLC 5/03 16K)?

A: Yes. The 1747-L532 is 100% backward compatible with the 1747-L531. It shares the exact same hardware footprint and communication interfaces while offering double the internal user memory capacity.

Q: What software is required to program the Allen-Bradley 1747-L532?

A: The processor is programmed using Rockwell’s RSLogix 500 software package via RSLinx drivers over either DF1 serial (RS-232) or DH-485 communications.

Q: Is the 1747-L532 processor hot-swappable in the SLC chassis?

A: Absolutely not. Removing or inserting any SLC processor or I/O card while the rack power supply (e.g., 1746-P1 or 1746-P2) is energized can arc backplane pins, corrupt memory, or permanently destroy the CPU circuit board. Always disconnect 120/240V main power first.

Q: What does a flashing red FAULT LED on the front panel mean?

A: A flashing red FAULT LED indicates a recoverable major error (such as a memory clearing event, battery failure, or I/O configuration mismatch). A solid red FAULT LED usually points to an unrecoverable hardware failure on the main processor board.

Q: What warranty comes with this component?

A: All our Allen-Bradley 1747-L532 processors—whether New Surplus or bench-tested Refurbished—come backed by a full 12-month operational warranty covering memory, communication ports, and backplane execution logic.
