Description
Product Introduction
The Allen-Bradley 1756-IF8 is a high-density, non-isolated analog input card for the ControlLogix platform. Designed to process continuous field variables, it monitors pressure transmitters, flow meters, thermocouple transmitters, and temperature sensors across complex industrial processes.
Unlike low-density I/O modules, the 1756-IF8 flexibly configures as either 8 differential, 16 single-ended, or 4 high-speed differential channels. Built-in digital filtering and onboard scaling handle raw engineering units directly on the card, offloading processing overhead from the ControlLogix CPU and reducing overall scan times.
Key Technical Specifications
| Parameter | Value |
| Inputs | 8 Differential, 16 Single-Ended, or 4 High-Speed Differential |
| Input Ranges | ±10V, 0 to 10V, 0 to 5V, 0 to 20 mA |
| Resolution | 16 Bits across 10.5V (320 µV/bit) or 21 mA (650 nA/bit) |
| Backplane Current | 150 mA @ 5.1V DC, 65 mA @ 24V DC |
| Power Dissipation | 2.3 W (Voltage mode) / 3.3 W (Current mode) |
| Input Impedance | > 10 MΩ (Voltage), 249 Ω (Current) |
| Module Conversion Time | 16 ms to 488 ms (dependent on notch filter selection) |
| Isolation Voltage | 250V continuous (Basic Insulation Type, Inputs-to-Backplane) |
| Removable Terminal Block (RTB) | 1756-TBCH or 1756-TBS6H (36-pin) |
| Operating Temperature | 0 °C to 60 °C (32 °F to 140 °F) |
Application Scenarios & The “Trench” Experience
Picture this: It’s 3:30 AM, and an old analog input card fails on the main boiler feed line. The draft fan pressure signal drops to zero, triggering an emergency burner trip. The entire plant drops offline, costing $15,000 every 20 minutes the steam header sits cold. Dropping in a replacement 1756-IF8 gets those pressure loops reading accurately so the plant engineer can clear the trip and restart the firing sequence.
- Oil & Gas Processing – Tank Level Monitoring – Captures 4-20mA loops from guided-wave radar transmitters across multiple storage vessels simultaneously.
- Plastics Extrusion – Melt Pressure & Temperature Control – Converts 0-10V feedback signals from pressure transducers to adjust feed screw speed in real time.
- Municipal Water Systems – Lift Station Telemetry – Reads flow rates and pump discharge pressures over long cable runs using differential current loops.
- Metals & Mining – Furnace Airflow Control – Feeds high-speed differential flow sensor inputs into PID loops for precise combustion air balancing.
Field Case Study: A chemical plant in Texas had an aging 1756-IF8 die during a lightning storm due to a ground loop on a long 0-10V sensor run. The process line went down hard. We pulled a fully bench-tested 1756-IF8 from surplus stock, shipped it via counter-to-counter air freight, and had the plant back up and running within 6 hours.

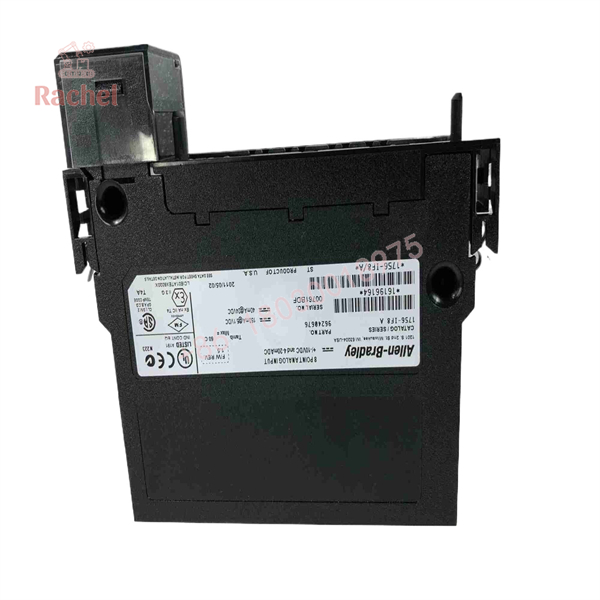

1756-IF8

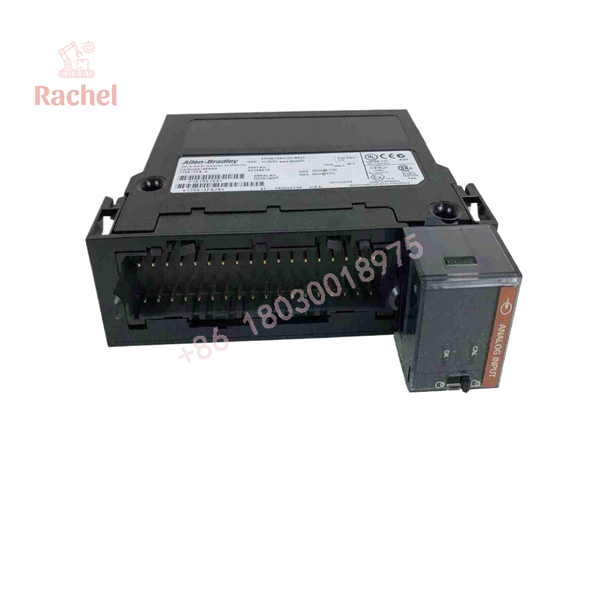

1756-IF8

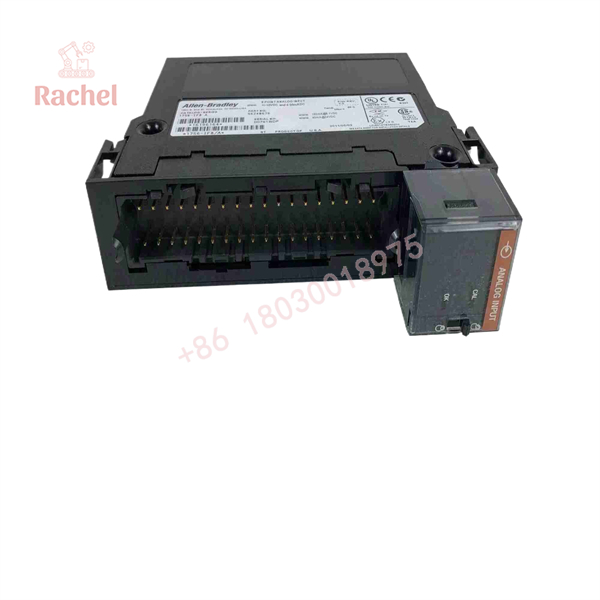

1756-IF8
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Allen-Bradley ControlLogix racks. Every 1756-IF8 undergoes our strict 5-stage bench verification process:
- Inbound Physical Inspection: Check housing tabs, backplane pins, trace integrity, and verify anti-counterfeit markings and OEM serial numbers.
- Live Rig Power-On Testing: Seat the module into an active 1756-A7 chassis and verify power-on diagnostic routines (OK LED transitions to solid green).
- Signal Generator Calibration Check: Wire a calibrated Fluke 754 Process Calibrator to input channels. Inject 4mA, 12mA, and 20mA current signals along with 0V, 5V, and 10V signals to verify 16-bit analog-to-digital conversion accuracy.
- Firmware Logging & Studio 5000 Audit: Connect via RSLinx/Studio 5000 to verify hardware revision, log firmware revisions, and confirm zero active backplane faults.
- ESD Cleaning & Static Packaging: Deep-clean the plastic housing with isopropyl solution, seal the card in anti-static shielding bags, and pack it in high-density foam casing.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ External 249 Ω Resistors for Current Loops: The 1756-IF8 does NOT have internal current-limiting shunts for 4-20mA signals! You must install external 249 Ω precision resistors across the input terminals on the 1756-TBCH terminal block. Forget this, and your 4-20mA loop will read flat zero or fail completely.
- ❗ Single-Ended vs. Differential Wiring: Check your Studio 5000 module configuration before touching a screwdriver! Wiring a transmitter for single-ended operation when the software profile is set to differential will cause cross-channel crosstalk, wildly drifting values, or negative off-scale errors.
- ⚠️ Grounding and Shield Termination: Since the 1756-IF8 is non-isolated channel-to-channel, improper shield grounding on sensor cables will cause ground loops that destroy your readings. Always ground cable shields at ONE end only (preferably at the RTB chassis ground bar).
- ❗ Notch Filter vs. Response Time: Selecting a 60 Hz notch filter cleans up AC line noise, but it slows the module update time to ~80 ms. If you’re running tight, high-speed PID loops, adjust the filter settings in Studio 5000 to balance noise rejection with scan time.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the 1756-IF8 channel-to-channel isolated?
A: No. The 1756-IF8 features group isolation (inputs-to-backplane), but channels share a common ground reference. If your application requires channel-to-channel isolation to prevent ground loops between field devices, you need the 1756-IF8I module instead.
Q: Does the 1756-IF8 come with the wiring arm (RTB)?
A: No. Removable Terminal Blocks (1756-TBCH 36-pin cage clamp or 1756-TBS6H spring clamp) are sold separately. If you are replacing an existing card, your old RTB clips directly onto the new module.
Q: Can I hot-swap the 1756-IF8 while the ControlLogix rack is running?
A: Yes. The 1756-IF8 supports Removal and Insertion Under Power (RIUP). You can pull a damaged module and snap in a replacement without interrupting processor execution or powering down the chassis backplane.
Q: How do I measure 4-20mA signals on this module?
A: You set the module configuration in Studio 5000 to 0-20mA or 4-20mA mode and land a 249 Ω precision resistor across the (+) and (-) terminals of the channel on the RTB. The module then measures the 1-5V drop across the resistor and converts it to digital data.
Q: What is the difference between Series A, B, and C modules?
A: Component revisions and internal manufacturing updates distinguish the series over time. Series B and C offer improved noise immunity and minor component upgrades, but all series share the same core functionality and slot footprint in Studio 5000.
Q: Why buy New Surplus over direct OEM channels?
A: OEM distributor lead times for specialized analog cards can run weeks or months during supply chain pinches. Our surplus stock sits on our shelves ready to ship today, giving you factory-tested hardware at a significantly reduced price with zero lead-time headache.
Q: What warranty do you offer on this module?
A: Every 1756-IF8 unit (New Surplus or Refurbished) comes backed by our standard 12-month full-replacement warranty. If it fails in the field during normal operation, we ship a replacement immediately.
