Product Introduction & Engineering Value
The Allen-Bradley 1756-IF8H brings smart process instrumentation data into the ControlLogix architecture without requiring dedicated HART multiplexers or secondary communication gateways. The “H” designation indicates native HART (Highway Addressable Remote Transducer) protocol modem capabilities built directly into each channel.
In addition to acquiring fast primary analog values (4–20 mA) for real-time PLC loop control, the 1756-IF8H continuously monitors digital HART field data. It passes secondary process variables, calibration status, device diagnostics, and sensor health metrics directly into Studio 5000 tags. This gives plant operators and asset management systems (such as FactoryTalk AssetCentre) instant access to field device health before a transmitter fails.
Technical Specifications
| Specification | Parameter Value |
| Module Type | HART Analog Input Module |
| Number of Inputs | 8 Differential Channels |
| Input Signal Range | 0 to 20 mA / 4 to 20 mA (HART active on 4–20 mA) |
| HART Protocol Support | HART Revision 5, 6, and 7 |
| A/D Conversion Resolution | 16-Bit Resolution |
| Module Scan Time | 80 ms (all channels) |
| Input Impedance | 249 Ω (internal precision shunt) |
| Calibrated Accuracy | Better than 0.1% of range |
| Backplane Current (5.1V DC) | 280 mA |
| Backplane Current (24V DC) | 100 mA |
| Power Dissipation | 3.8 Watts |
| Removable Terminal Block (RTB) | 1756-TBCH or 1756-TBS6H (36-pin) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Field Application & The “Trench” Experience
In an oil refinery tank farm, temperature variations in holding tanks required operators to monitor both level (Primary Variable) and internal sensor temperature (Secondary Variable) from smart radar level transmitters. Previously, retrieving the secondary HART temperature data required costly external HART modems wired in parallel across every loop.
Upgrading the control rack with 1756-IF8H cards allowed technicians to read both 4–20 mA level signals and HART secondary variables natively in Studio 5000 over a single 2-wire cable per transmitter. Furthermore, when an upstream valve began leaking, the 1756-IF8H picked up a HART Sensor Drift Warning diagnostic alert directly from the transmitter, allowing maintenance to flush the impulse lines before the loop tripped the refinery unit.
- Refineries & Petrochemical Plants: Monitoring smart pressure, temperature, and radar level transmitters with real-time asset health diagnostics.
- Water & Wastewater Facilities: Reading flow rates and totalized volume HART data from electromagnetic and ultrasonic flow meters.
- Predictive Asset Management: Streaming field calibration status and HART diagnostic tags into plant-wide maintenance management software.
Transparency SOP: QA & Testing
- Terminal Pin & Modem Audit: Inspecting 36-pin RTB alignment pins, HART status LEDs, chassis backplane edge contacts, and internal 249 Ω shunt resistors.
- Precision 4–20 mA & HART Communication Test: Testing all 8 channels with a HART-compliant process calibrator (e.g., Fluke 754) to verify analog measurement accuracy (< 0.1% error) and simultaneous HART variable (PV, SV, TV, QV) polling.
- Asset Management Pass-Through Test: Verifying FDT/DTM dynamic pass-through communication from a ControlLogix CPU through the 1756-IF8H to field instruments.
- Thermal Chamber Burn-In: Running full 8-channel active HART polling inside a 60°C test chamber for 12 hours while checking for packet drops, thermal stability, and backplane power draw.

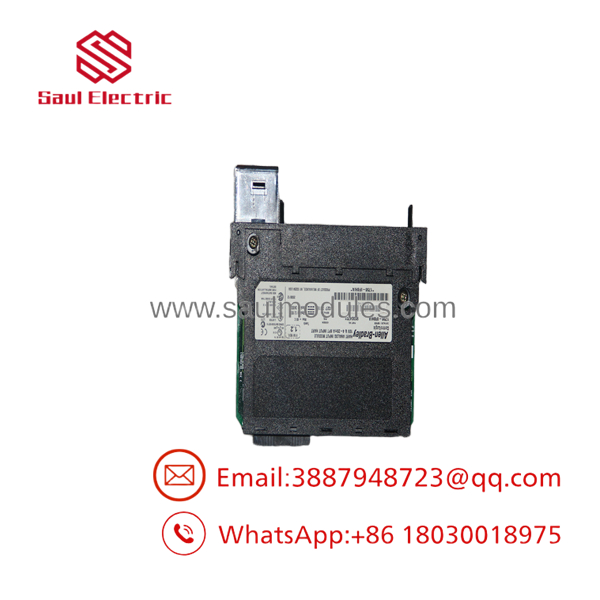

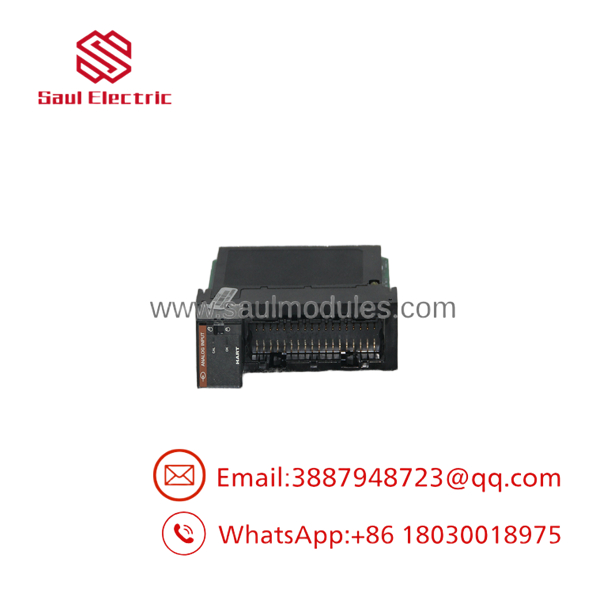

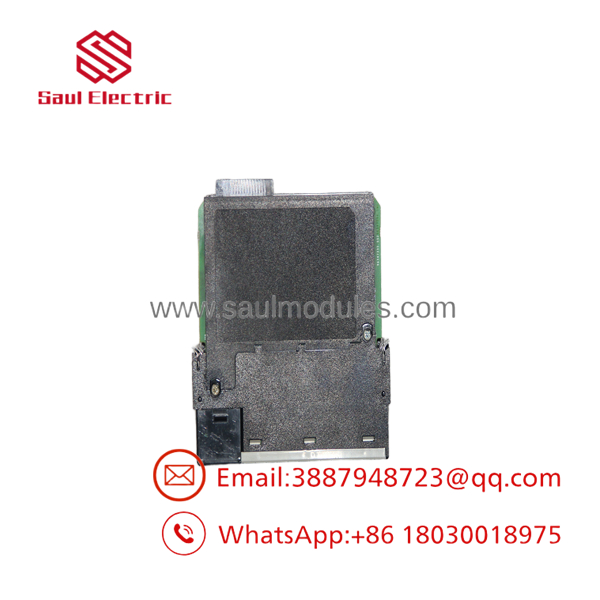

- 1756-IF8H
The Veteran’s Tech Trap Guide
- ⚠️ 249 Ω Internal Shunt Impedance & Loop Voltage: The 1756- includes built-in 249 Ω precision shunt resistors required for HART communication. Ensure your 24V DC field loop power supply accounts for the ~5V DC drop across the module terminals at 20 mA to guarantee smart transmitters maintain minimum operating terminal voltage.
- PRO TIP: Enable HART Device Pass-Through in Studio 5000: To allow maintenance technicians to configure smart field devices remotely using tools like Endress+Hauser FieldCare or PDM over Ethernet, ensure HART Pass-Through is enabled in the 1756- module properties within Studio 5000 / RSLogix 5000.
- ⚠️ 1756-IF8 vs. 1756- Compatibility: Standard non-HART 1756-IF8 cards cannot decode HART digital signals. While a 1756- will read standard 4–20 mA loops from non-HART devices without issue, replacing an with a standard IF8 will drop all HART diagnostic tags in your PLC logic.
Dynamic FAQ
Q: Does the 1756- provide 24V DC loop power for 2-wire HART transmitters?
A: No. The 1756- is an analog signal acquisition module and does not supply loop power. Field transmitters must be powered by an external 24V DC power supply wired in series with the loop.
Q: Can I use the 1756- with standard non-HART 4–20 mA instruments?
A: Yes. The 1756- functions as a high-precision 4–20 mA analog card for standard non-HART instruments. You can simply disable HART polling on specific channels in Studio 5000.
Q: Which removable terminal block (RTB) is required for the 1756-?
A: The module requires a 36-pin terminal block—either the 1756-TBCH (cage-clamp) or 1756-TBS6H (spring-clamp). Standard 20-pin RTBs are not compatible.
Q: Are replacement 1756- modules fully bench-tested before shipping?
A: Yes. Every 1756- module undergoes 8-channel analog accuracy checks, active HART protocol communication testing, pass-through verification, and 12-hour thermal chamber burn-in.
