Allen-Bradley 1756-L71 Logix5571 PLC CPU USB Programming Controller

Product Introduction

The Allen-Bradley 1756-L71 is a ControlLogix 5571 processor module designed for industrial automation systems requiring higher performance than the older ControlLogix L6x platform. It provides 2MB of user memory, USB programming connectivity, and support for large ControlLogix I/O architectures.

The L71 is commonly installed in manufacturing lines, process systems, and OEM equipment where application stability and long service life matter. Compared with legacy L55/L6x processors, it provides a newer Logix execution platform, SD card support, and improved engineering workflow through Studio 5000 Logix Designer.

Key Technical Specifications

1756-L71

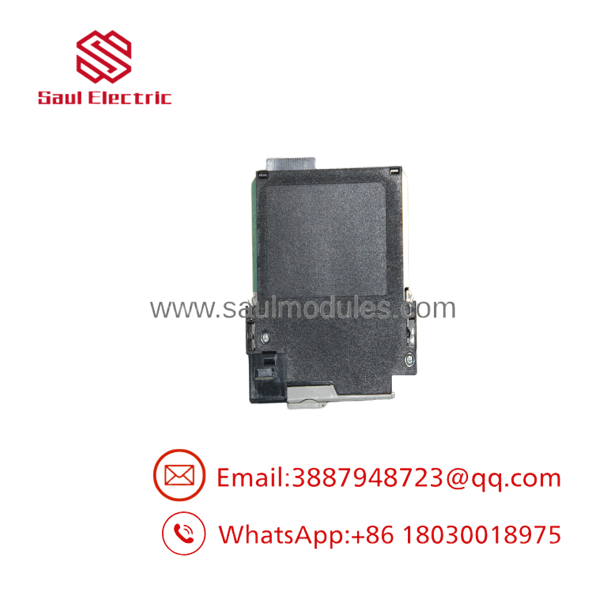

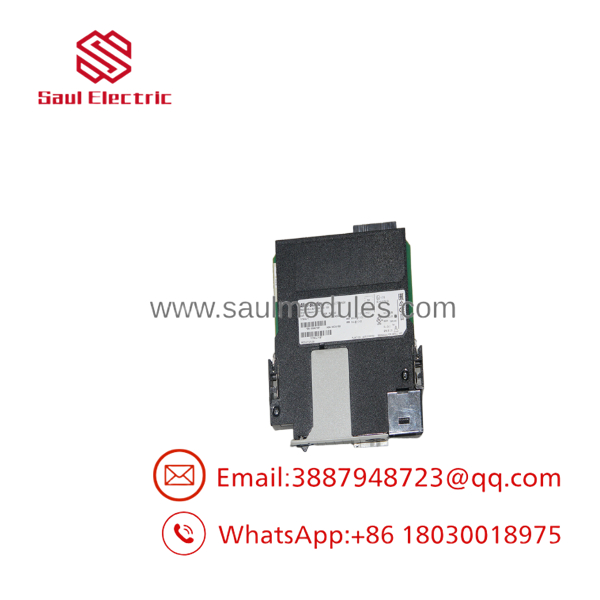

1756-L71

Application Scenarios & The “Trench” Experience

The maintenance call comes in at 3:15 AM.

“The controller is healthy, but the machine will not transition to automatic mode.”

That sounds like a program problem.

Sometimes it is.

Sometimes it is a firmware mismatch, an incomplete project restore, or a communication configuration issue.

The 1756-L71 belongs to the ControlLogix L7x generation. It is often selected as a replacement path for older L6x processors because it supports newer Studio 5000 environments while maintaining the same chassis-based architecture.

Typical applications include:

• Automotive Manufacturing – Robotic assembly cell control – The 1756-L71 executes sequencing, interlocks, and motion coordination logic.
• Packaging Industry – High-speed production equipment – Provides processor capacity for complex machine programs and distributed I/O.
• Oil & Gas – Process control systems – Manages PLC logic connected through ControlNet or EtherNet/IP communication modules.
• Water Treatment – Pump station automation – Controls remote I/O networks and process sequences.
• Material Handling – Conveyor and sorting systems – Handles large-scale discrete control applications.

Field Case

A production facility running an older ControlLogix L6x processor experienced repeated CPU faults.

The plant had already purchased a 1756-L71 spare.

The hardware installation was straightforward.

The problem appeared during project download.

The engineering workstation did not have the correct controller support package installed, and the firmware revision did not match the existing project.

After installing the proper Studio 5000 support files, verifying firmware, and restoring the project archive, the system returned to service.

The lesson was simple.

A PLC spare is not only a hardware part. It is a complete recovery package: processor, firmware, software version, and project backup.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Allen-Bradley ControlLogix racks.

• Inbound Inspection
  • Verify Allen-Bradley label, catalog number, serial information, and hardware revision.
  • Inspect USB port, SD card slot, and chassis connector.
  • Check for corrosion, impact damage, or unauthorized repairs.
• Live Rack Testing
  • Install processor into a ControlLogix chassis.
  • Verify controller recognition through Studio 5000 Logix Designer.
  • Establish online connection.
  • Check controller status indicators and diagnostics.
• Electrical Parameter Checks
  • Measure backplane current behavior.
  • Perform repeated power-cycle testing.
  • Verify stable controller startup.
• Firmware Verification
  • Record exact firmware revision.
  • Confirm compatibility with available Studio 5000 versions.
  • Verify controller identity and configuration data.
• Final QC & Anti-static Packaging
  • Remove test project data.
  • Protect chassis contacts from ESD.
  • Package using anti-static materials.

The Veteran’s Tech Trap Guide

⚠️ Do not assume an L71 is a direct replacement for an L61/L63. The chassis fits, but firmware, project conversion, and software support still need verification.

❗ Check Studio 5000 compatibility before installation. The controller revision must match the programming environment.

⚠️ Do not forget the SD card. Many plants use SD backups for disaster recovery. Verify whether the original system depends on stored controller data.

⚠️ The L71 does not have built-in Ethernet. You still need a separate 1756 communication module such as EN2T, EN2TR, or EN3TR for EtherNet/IP networks.

⚠️ Check controller keying settings. Electronic Keying mismatches can prevent a replacement processor from accepting the project.

Take a screenshot of the Controller Properties window before removing the old CPU. Trust me. Firmware revision details are worth more than people realize during emergency replacement.

Frequently Asked Questions (FAQ)

Q1. What is the Allen-Bradley 1756-L71?

The 1756-L71 is a ControlLogix 5571 processor module with 2MB user memory used for industrial PLC control applications.

Q2. Is the 1756-L71 still available?

Yes. Rockwell Automation lists the 1756-L71 as Active Mature, meaning it remains supported but is no longer considered a primary new-product platform.

Q3. What software is required for the 1756-L71?

The processor requires Studio 5000 Logix Designer. The exact version depends on the installed firmware revision.

Q4. Does the 1756-L71 have built-in Ethernet/IP?

No.

The L71 includes a USB programming port only. Ethernet/IP communication requires a separate ControlLogix communication module.

Q5. Can the 1756-L71 replace a 1756-L61 or 1756-L63?

It can often replace older L6x processors, but it is not a simple plug-in swap. Verify:

• Controller firmware
• Studio 5000 version
• Project conversion requirements
• Communication module compatibility

Q6. What is the difference between 1756-L71 and 1756-L72?

The main difference is memory capacity.

• 1756-L71: 2MB user memory
• 1756-L72: 4MB user memory

Both belong to the ControlLogix 5570 L7x processor family.

Q7. Can the 1756-L71 be used for motion applications?

Yes. The controller supports motion applications with compatible ControlLogix motion modules and networks. Rockwell Automation specifies support for up to 100 motion axes.

Q8. Why is a surplus 1756-L71 cheaper than buying directly from Rockwell Automation?

Industrial surplus units often come from plant spare inventories, equipment upgrades, and system replacements. The price difference usually reflects sourcing channel, not necessarily product capability. The critical checks are firmware verification, testing records, and physical condition.

Q9. What warranty is typically provided?

Qualified automation suppliers commonly provide a 12-month warranty on tested new surplus and refurbished 1756-L71 processors. Rockwell Automation lists a standard one-year warranty duration.
