Allen Bradley 1756-OA16I ControlLogix 16 Point AC Output Module

Description

Product Introduction & Engineering Value

The Allen Bradley 1756-OA16I is built for ControlLogix applications that require individually isolated AC output channels. Unlike standard grouped output modules, each channel provides electrical isolation, making it suitable for systems where multiple AC loads operate independently and fault separation is important.

In field maintenance work, this module is often replaced during production recovery rather than planned upgrades. Engineers should verify output voltage range, terminal block type, load current requirements, and project configuration before installing a replacement unit.

Technical Specifications

Field Application & The “Trench” Experience

A water treatment facility experienced repeated failures on a motorized valve control panel. The original ControlLogix rack used a 1756-OA16I module to control multiple 120 VAC actuators, alarm beacons, and auxiliary devices. One failed output channel forced operators to manually control several process valves.

The maintenance team replaced the module during a short shutdown window. The replacement process focused on verifying the existing output mapping, confirming the removable terminal block wiring, and checking each field device individually before returning the system to automatic operation.

Typical application scenarios:

1. Motorized Valve Control Panels
Independent AC control of actuators, solenoids, and process isolation valves.

2. Burner Management Auxiliary Outputs
Switching ignition-related equipment, annunciators, and permissive devices.

3. Packaging Machine Control Systems
Controlling AC-powered contactors, indicators, and auxiliary machine functions.

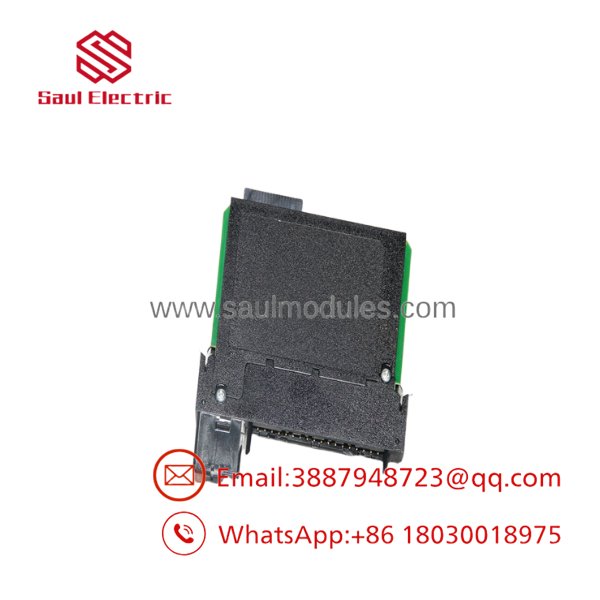

1756-OA16I

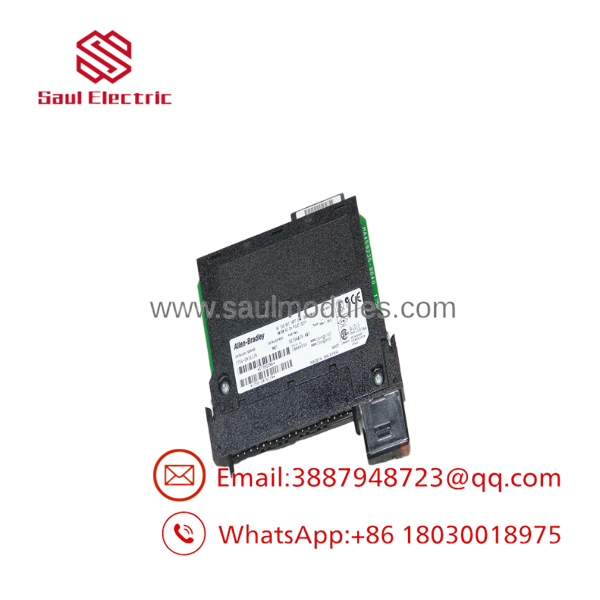

1756-OA16I

Transparency SOP: QA & Testing

A professional inspection process for a 1756-OA16I includes:

1. Physical Examination
   • Confirm catalog number and hardware condition.
   • Inspect chassis connector pins and module housing.
   • Check label information and revision details.
2. Electrical Verification
   • Confirm module power-up behavior.
   • Verify status indicator operation.
   • Check output channel response using appropriate test equipment.
3. Configuration Review
   • Confirm compatibility with the ControlLogix project.
   • Verify module recognition in Studio 5000.
   • Record inspection results and test observations.

The Veteran’s Tech Trap Guide

⚠️ Do not confuse 1756- with 1756-OA16.
Both are 16-point AC output modules, but the version provides individually isolated outputs and uses a different terminal arrangement. A wiring mistake during substitution can create unexpected field problems.

⚠️ Check load current before replacement.
A failed output channel may not mean the module is defective. Excessive inrush current from contactors, valves, or transformers can damage AC output devices.

⚠️ Verify the terminal block.
The module requires the correct 36-pin removable terminal block interface. Reusing an incorrect RTB can create installation delays or wiring errors.

PRO TIP: When replacing a failed output module, document every connected field device. Output cards often fail because of external loads, not because of internal electronics.

Dynamic FAQ

1. What is the Allen Bradley 1756- used for?

The 1756- is a ControlLogix 16-point isolated AC output module used to control AC-powered field devices in industrial automation systems.

2. What voltage does the 1756- support?

The module supports 74–265 VAC output operation with individual output channels rated up to 1.0 A per point.

3. What is the difference between 1756- and 1756-OA16?

The main difference is output isolation and terminal configuration. The 1756- provides individually isolated outputs, while the standard 1756-OA16 uses a non-isolated output arrangement.

4. Can the 1756- be installed in any ControlLogix chassis?

Yes, it is designed for ControlLogix 1756 chassis installations, but the project configuration and Studio 5000 module definition must match the installed hardware.

5. What should be checked before buying a New Surplus 1756-?

Verify:

• Exact catalog number
• Series and revision
• Terminal block compatibility
• Output voltage requirements
• Supplier testing documentation

6. Is a refurbished 1756- reliable for production equipment?

A properly tested refurbished unit can be suitable for industrial service when it has passed visual inspection, power-up testing, output verification, and compatibility checks before shipment.
