Allen-Bradley 1756-OB16E ControlLogix 16 Point DC Output Module

Description

Product Introduction

The Allen-Bradley 1756-OB16E is a ControlLogix discrete output module designed for 24VDC industrial control applications. It provides 16 electronically fused sourcing outputs in a single-slot ControlLogix chassis module, allowing PLC programs to directly control solenoids, relays, contactors, indicators, and other DC field devices.

In our field experience, the 1756-OB16E is popular because it adds individual electronic protection without requiring external fuse blocks for every output point. The trade-off is current capacity. This is a control output module, not a power distribution device. Verify actuator current requirements before installation; oversized loads will still require interposing relays or contactors.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A common production floor problem:

A machine stops because one valve bank is not responding. The PLC scan is healthy. The program shows the output turning ON. The technician measures the output terminal and finds nothing.

The first assumption is usually a failed PLC card.

Sometimes it is.

But with the 1756-OB16E, the electronic fuse diagnostic is often the clue. A shorted solenoid or damaged field cable may have protected itself by shutting down that output channel.

Typical applications include:

• Automotive Manufacturing – Robotic fixture control – The module provides protected 24VDC outputs for clamps, valves, and pneumatic devices.
• Packaging Equipment – Conveyor and actuator control – The 16-point density helps reduce chassis slot usage in machine panels.
• Water Treatment – Pump auxiliary controls – Used for controlling solenoid valves, alarms, and motor starter interfaces.
• Food Processing – Automated filling and handling systems – Provides PLC control for distributed DC devices.
• OEM Machinery – Standard ControlLogix machine platforms – Simplifies spare inventory by using common output hardware.

Field Case

A packaging line experienced repeated faults on a pneumatic valve bank. Operators reported that the machine would run normally after a reset but stop again several hours later.

The maintenance team initially replaced the 1756-OB16E output module.

The replacement failed again.

During troubleshooting, technicians discovered insulation damage on a valve cable causing intermittent shorts. The electronic protection inside the module was doing its job. Replacing hardware without correcting the field wiring would have only repeated the failure.

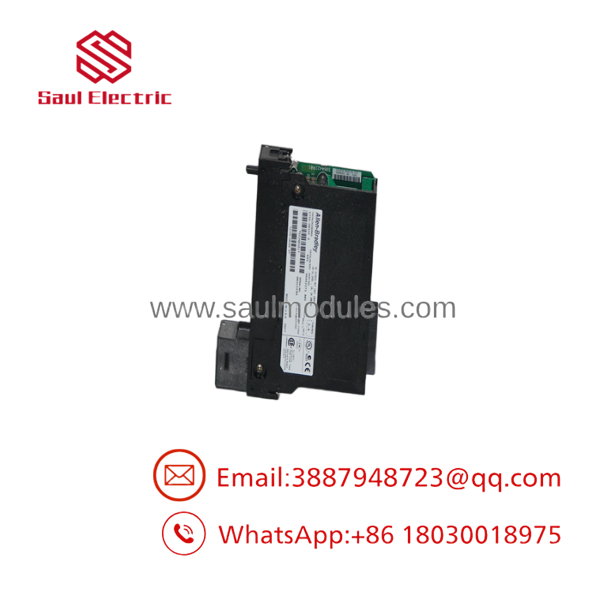

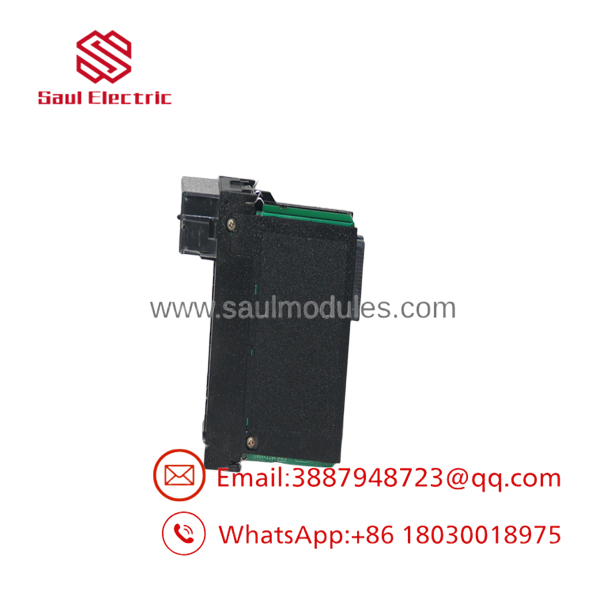

1756-OB16E

1756-

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Allen-Bradley ControlLogix racks.

• Inbound Inspection
  • Verify Allen-Bradley label, catalog number, series, and hardware revision.
  • Inspect terminal connection area and backplane interface.
  • Check for damaged housings, corrosion, or counterfeit markings.
• Live Rack Testing
  • Install module in a ControlLogix chassis.
  • Verify controller recognition through Studio 5000 Logix Designer.
  • Test all 16 output channels using simulated loads.
• Electrical Parameter Checks
  • Verify output switching behavior.
  • Test electronic fuse response.
  • Confirm voltage range operation from 10–31.2 VDC.
• Firmware Verification
  • Record firmware revision.
  • Confirm Add-On Profile compatibility.
  • Verify module identity and communication diagnostics.
• Final QC & Anti-static Packaging
  • Complete functional output testing.
  • Protect module contacts against ESD.
  • Package using anti-static materials.

The Veteran’s Tech Trap Guide

⚠️ Do not connect high-current loads directly. The 1756- is rated for control applications. Large valves, motors, and heaters usually need an interposing relay or contactor.

⚠️ Check sourcing versus sinking before wiring. The 1756- provides sourcing outputs. A wiring mistake here can create immediate troubleshooting problems.

❗ Check the output fuse diagnostic before replacing the module. If only one channel fails, investigate the field device and wiring first.

⚠️ Verify terminal block compatibility. The module requires the correct removable terminal block. The I/O module and terminal block are separate catalog items.

⚠️ Do not remove the module under power unless the system design specifically allows it. Standard ControlLogix systems require proper procedures for energized module replacement.

Take a meter reading at the field device first. A dead output does not always mean a dead module.

Frequently Asked Questions (FAQ)

Q1. What is the Allen-Bradley 1756-?

The is a ControlLogix 16-point 24VDC digital output module with electronic fuse protection for industrial automation applications.

Q2. Is the 1756- compatible with ControlLogix processors?

Yes. It is designed for the ControlLogix platform and installs in a standard 1756 chassis with a compatible controller and communication architecture.

Q3. What voltage does the 1756- support?

The module operates from 10–31.2 VDC, with typical applications using 12VDC or 24VDC field devices.

Q4. Does the 1756- have built-in protection?

Yes. Each output group includes electronic fuse protection. This helps protect the module from short-circuit conditions, but it does not replace proper field protection and wiring practices.

Q5. Can the 1756- replace a 1756-OB16?

Not always. Both are digital output modules, but protection features and electrical characteristics differ. Verify the Logix project configuration, load requirements, and module revision before substitution.

Q6. Why is a surplus 1756- cheaper than buying directly from Rockwell Automation?

Surplus pricing usually comes from excess inventory, plant spare stock, or equipment decommissioning channels. The important point is verification. A tested module with documented inspection history has more value than an untested unit sitting on a shelf.

Q7. Is the 1756- hot-swappable?

ControlLogix supports removal and insertion under specific system conditions, but only when the application, chassis, and controller configuration allow it. Follow Rockwell procedures before removing an energized module.

Q8. What warranty is typically provided?

Qualified automation suppliers commonly provide a 12-month warranty on tested new surplus and refurbished 1756- modules. Warranty coverage should always be confirmed before purchase.
