Allen Bradley 1756-OF4 Voltage Current Analog Output Module

Description

Product Introduction & Engineering Value

The Allen Bradley 1756-OF4 is a ControlLogix analog output module designed for applications requiring precise voltage or current control signals. It provides four configurable analog outputs that can be used for drive references, valve positioning, process control signals, and other continuous control functions.

In plant environments, analog output failures are often difficult to diagnose because the issue may involve the module, field wiring, scaling configuration, or the connected device. Replacing a 1756-OF4 requires checking the complete signal chain, including engineering units, output range settings, and Studio 5000 configuration.

Technical Specifications

Field Application & The “Trench” Experience

A chemical processing facility experienced unstable valve positioning on a temperature control loop. Operators noticed the control valve occasionally stopped responding correctly, causing process fluctuations. Initial troubleshooting focused on the valve actuator, but signal measurement showed the analog command from the ControlLogix rack was inconsistent.

The maintenance team replaced the aging 1756-OF4 module, restored the original configuration, verified the 4–20 mA loop behavior, and recalibrated the control output scaling. The process returned to normal operation without replacing the field valve.

The important field lesson: analog modules rarely fail in obvious ways. A small configuration error can look exactly like a hardware problem.

Typical application scenarios:

1. Variable Frequency Drive Speed References
Generating ±10V or current signals for motor speed control and process adjustment.

2. Control Valve Positioning Systems
Providing continuous output signals for pneumatic and electric valve actuators.

3. Process Skid Control Panels
Managing flow, pressure, temperature, and level control loops.

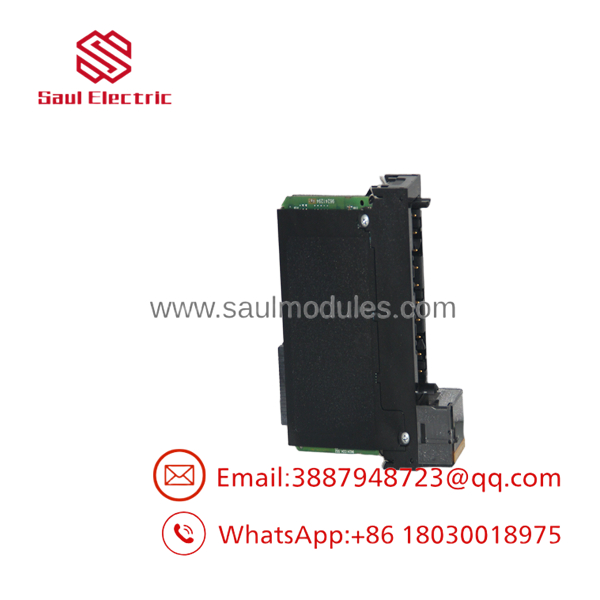

1756-OF4

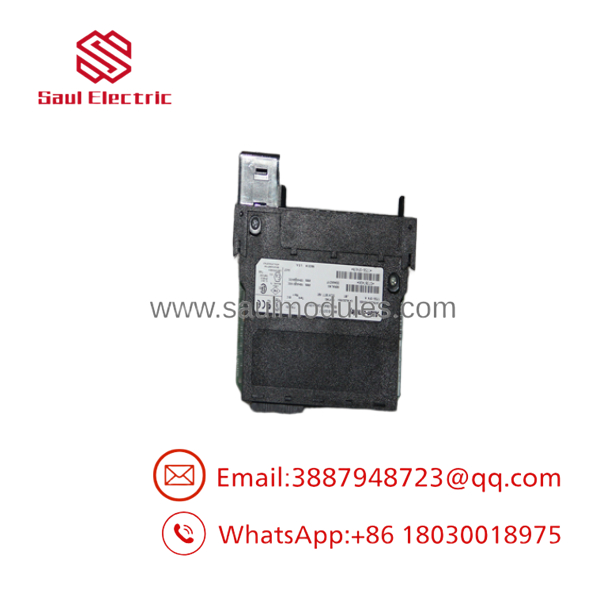

1756-OF4

Transparency SOP: QA & Testing

A 1756-OF4 inspection procedure should include:

Hardware Verification

• Confirm catalog number and series revision.
• Inspect module housing, label, and chassis connector.
• Check the 20-pin RTB interface condition.

Functional Testing

• Install in a compatible ControlLogix chassis.
• Verify module recognition in Studio 5000.
• Confirm status indicators and diagnostic behavior.

Analog Output Validation

• Test voltage output channels.
• Test current output channels where applicable.
• Verify scaling response and channel stability.

A properly tested New Surplus or refurbished module should have documented inspection results before shipment.

The Veteran’s Tech Trap Guide

⚠️ Do not assume the output value equals the engineering value automatically.
The 1756-OF4 depends on module configuration and scaling. A command value in the controller may not directly represent volts or milliamps unless the project scaling is configured correctly.

⚠️ Check whether the loop requires voltage or current.
A valve positioner expecting 4–20 mA will not operate correctly from a voltage output configuration without the correct signal conversion hardware.

⚠️ Watch for grounding issues.
Analog signals are sensitive to wiring practices. Poor shielding, incorrect grounding, or shared power references can create unstable readings that appear to be module faults.

PRO TIP: Before replacing an analog output card, capture:

• Module configuration
• Channel scaling values
• Output range selection
• Connected field device requirements

This information prevents unnecessary troubleshooting after installation.

Dynamic FAQ

1. What is the Allen Bradley 1756-OF4 used for?

The 1756-OF4 is a ControlLogix four-channel analog output module used to generate voltage or current control signals for industrial field devices.

2. What output signals does the 1756-OF4 support?

The module supports voltage and current output modes, including ±10V DC voltage output and 0–20 mA current output ranges.

3. How many analog outputs are available on the 1756-OF4?

The module provides four analog output channels.

4. Can the 1756-OF4 replace another ControlLogix analog output module?

Only after confirming signal requirements, channel count, scaling configuration, and Studio 5000 compatibility. Different analog modules may use different output ranges and resolution.

5. What should be checked before installing a replacement 1756-OF4?

Verify:

• Exact catalog number
• Series revision
• Output signal type
• Engineering unit scaling
• Terminal block compatibility
• Field device requirements

6. Is a New Surplus 1756-OF4 tested before shipment?

A qualified supplier should inspect the hardware, verify module startup, check ControlLogix recognition, and perform analog output testing before supplying the module for production service.
