Allen Bradley 1756-OF8 ControlLogix 8 Channel Analog Output Module

Description

Product Introduction & Engineering Value

The Allen Bradley 1756-OF8 is an 8-channel ControlLogix analog output module designed for continuous process control applications. It converts digital controller commands into precise voltage or current signals used by drives, actuators, valves, and instrumentation systems. The module supports configurable current and voltage outputs through a standard ControlLogix chassis installation.

In field service work, analog output failures are rarely solved by simply replacing the card. Signal scaling, loop wiring, grounding, and device compatibility all affect system behavior. The 1756-OF8 remains widely used in existing ControlLogix installations where maintaining original I/O architecture is important.

Technical Specifications

Field Application & The “Trench” Experience

A chemical blending facility experienced unstable flow control on several dosing skids. Operators noticed that valve position commands were fluctuating even though the PLC logic appeared normal. Troubleshooting showed that one analog output channel from the existing ControlLogix rack was producing inconsistent current signals.

The maintenance team replaced the 1756-OF8 module, restored the original Studio 5000 configuration, checked the 4–20 mA loop wiring, and verified valve response through manual control. The process returned to stable operation.

The important lesson: analog output modules sit between software and physical equipment. A problem anywhere in that chain can appear as a module failure.

Common application scenarios:

1. Process Control Valve Positioning
Generating continuous signals for pneumatic positioners, electric actuators, and flow control equipment.

2. Variable Frequency Drive Speed References
Providing analog speed commands for motor drives and process equipment.

3. Utility Skid Automation
Controlling pressure regulators, pump speed references, and temperature control loops.

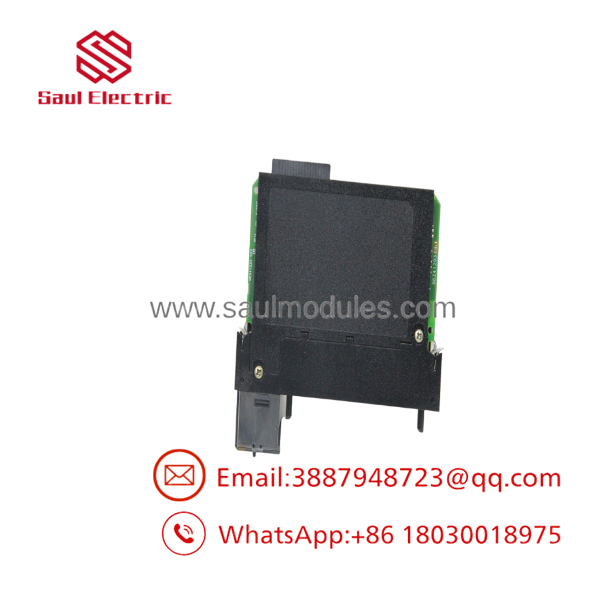

1756-OF8

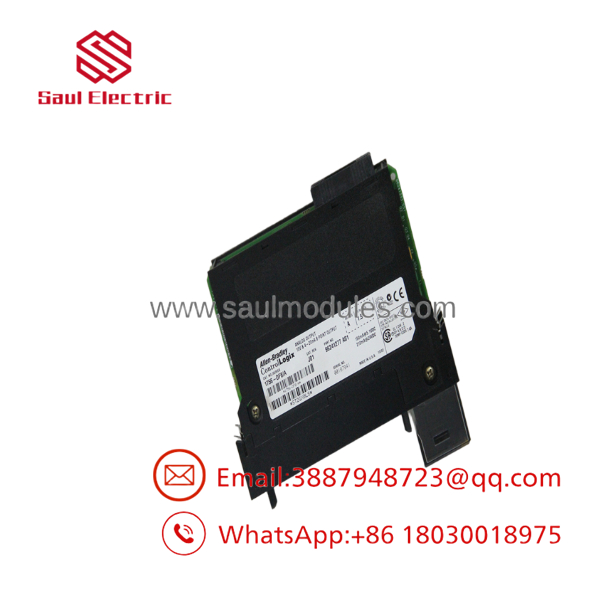

1756-OF8

Transparency SOP: QA & Testing

A proper 1756-OF8 evaluation should include:

1. Hardware Inspection

• Confirm catalog number and series information.
• Inspect module housing, label, and chassis connector.
• Check terminal block interface condition.

2. Controller Recognition Test

• Install the module into a compatible ControlLogix chassis.
• Verify processor recognition.
• Confirm module status indicators.

3. Analog Signal Verification

• Test voltage output channels.
• Test current output channels.
• Verify output stability and scaling response.

For New Surplus and refurbished inventory, test documentation should identify the inspection steps completed before shipment.

The Veteran’s Tech Trap Guide

⚠️ Do not overlook scaling configuration.
A correctly operating 1756-OF8 can still produce the wrong field signal if the engineering scaling inside Studio 5000 does not match the connected device.

⚠️ Do not replace it with an isolated version without checking the design.
The standard 1756-OF8 and isolated analog variants are not always interchangeable. Isolation requirements must match the original panel design.

⚠️ Check current loop wiring carefully.
A broken return wire, incorrect polarity, or poor shielding can create symptoms that look like analog module failure.

PRO TIP: Before removing the module, save:

• Module configuration settings
• Output range selection
• Channel scaling values
• Controller project archive

This information prevents unnecessary commissioning work after replacement.

Dynamic FAQ

1. What is the Allen Bradley 1756-OF8 used for?

The 1756-OF8 is a ControlLogix 8-point analog output module used to generate voltage and current signals for industrial control applications.

2. How many analog outputs does the 1756-OF8 provide?

The module provides eight configurable analog output channels.

3. What signal types are supported by the 1756-OF8?

The module supports ±10V DC voltage output and 0–20 mA current output ranges.

4. Can the 1756-OF8 replace a 1756-OF4?

Only if the application requirements match. The OF8 provides additional channels, but engineers must verify project configuration, terminal wiring, and signal requirements before substitution.

5. What should be checked before installing a replacement 1756-OF8?

Verify:

• Exact catalog number
• Series revision
• Studio 5000 compatibility
• Output signal type
• Field device requirements
• Terminal block compatibility

6. Is a New Surplus 1756-OF8 tested before shipment?

A properly prepared New Surplus or refurbished unit should undergo visual inspection, ControlLogix startup verification, module recognition testing, and analog output checks before being released for industrial service.
