Description
Product Introduction
The Allen-Bradley 1761-L32BWA is a popular 32-point fixed I/O programmable logic controller from the MicroLogix 1000 family. Designed for cost-effective stand-alone machine control, it integrates an 85–264V AC power supply, 20 digital 24V DC inputs (including high-speed counting capabilities), and 12 mechanical relay outputs into a single compact housing.
Unlike modular PAC systems (such as ControlLogix 1756 racks), the 1761-L32BWA features a fixed non-expandable architecture with 1K words of EEPROM program memory. Its isolated dry-contact relay outputs enable flexible switching across mixed AC and DC field loads, making it a reliable workhorse for OEMs, material handling skids, and simple standalone automation processes.
Key Technical Specifications
| Parameter | Value / Specification |
| Power Supply Voltage | 85 to 264V AC @ 47 to 63 Hz |
| Power Consumption | 30 VA maximum |
| Digital Inputs | 20 Channels (24V DC Sink/Source) |
| High-Speed Input Capability | Inputs 0–3 support up to 6.6 kHz High-Speed Counter (HSC) |
| Digital Outputs | 12 Individually Isolated Relay Contacts (Form A N.O.) |
| Continuous Current per Relay | 2.5 A @ 120V AC / 24V DC (20A max total load per controller) |
| User Memory Size | 1K Words EEPROM (approx. 737 Instruction Words) |
| Communication Port | 8-pin Mini-DIN RS-232 (DF1 Full-Duplex, DH-485, Modbus RTU Slave) |
| Sensor Power Output | 24V DC @ 200 mA auxiliary power source |
| Dimensions (H x W x D) | 80 x 200 x 73 mm (3.15 x 7.87 x 2.87 in) |
| Mounting Options | DIN Rail or Direct Panel Mount |
Application Scenarios & The “Trench” Experience
A field technician servicing an older packaging line faces a sudden machine halt: a shorted solenoid coil destroyed the output board on a legacy controller. Because the machine requires mixing 120V AC interlocks with 24V DC indicator lights, installing a transistor-only output card would require adding a dozen interposing relays. Replacing the faulty unit with a 1761-L32BWA solves the problem instantly—its 12 mechanical relay outputs handle mixed AC/DC voltages directly on the terminal strip, getting the line back up and running with minimal rewiring.
Target Application Scenarios
- Standalone Packaging Machinery: Controls cartooning, sealing, and wrapping equipment with straightforward sequential logic.
- Pump & Compressor Control Skids: Manages pressure switch monitoring, runtime alternation, and alarm staging via dry contact relay outputs.
- HVAC & Building Automation: Operates damper actuators, fan starters, and temperature limit switches using universal AC input power.
- Legacy System Drop-In Replacements: Serves as a direct replacement for aging MicroLogix 1000 units in existing RSLogix 500 applications.

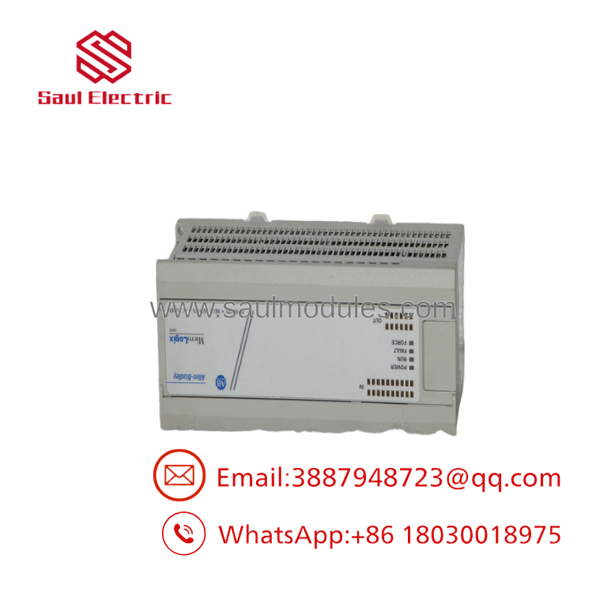

- 1761-L32BWA

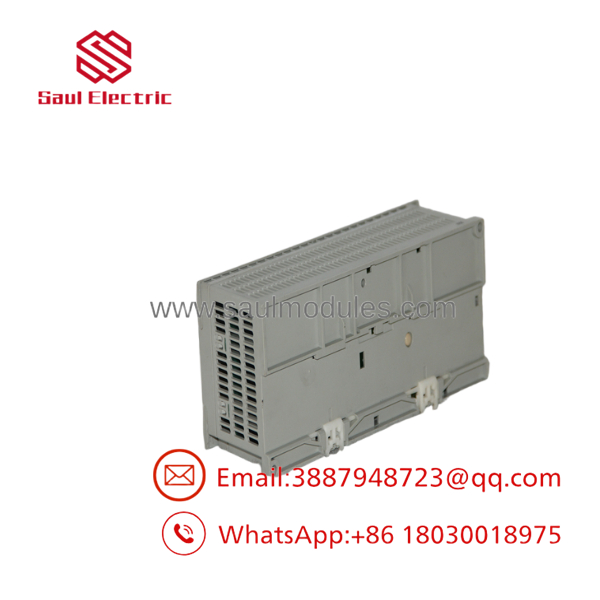

- 1761-L32BWA

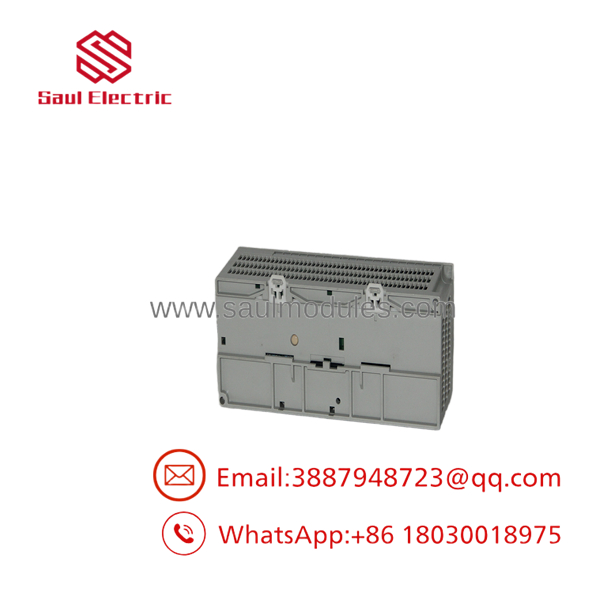

- 1761-L32BWA
Transparency SOP: Quality Assurance & Testing
We thoroughly inspect and test every 1761- controller before it leaves our warehouse:
- Physical & Terminal Inspection: Checking terminal screws, housing latches, 8-pin Mini-DIN port alignment, and verifying that the internal EEPROM retention circuit is intact.
- Power Supply & Aux Voltage Test: Applying 120V/240V AC line power to verify internal DC bus initialization and measuring the 24V DC auxiliary sensor power rail.
- I/O Channel Verification: Wiring test toggles to all 20 DC inputs (including High-Speed Counter inputs) and toggling all 12 relay outputs under active electrical load to ensure low contact resistance.
- Comms & Firmware Audit: Connecting via RSLogix 500 using a 1761-CBL-PM02 cable to verify DF1/DH-485 communication, program download/upload capabilities, and memory clearing.
- ESD Static Neutralization & Packaging: Cleaning the unit at an ESD-safe workbench before sealing it in protective static-shielding material with shock-absorbent packaging.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Watch the Programming Cable Pinout: The 1761- uses a 90-degree 8-pin Mini-DIN RS-232 port. You cannot use a standard round serial cable; you must use an authentic 1761-CBL-PM02 (DB9 to Mini-DIN) or a compatible USB-to-Mini-DIN programming adapter (like the 1761-CBL-PM02 USB clone) to communicate via RSLogix 500 or MicroLogix Starter Lite.
❗ Fixed I/O—No Expansion Slots: The MicroLogix 1000 series is a completely fixed controller platform. It does not support 1769 or 1762 expansion I/O modules. If your process requires more than 20 inputs or 12 outputs, you will need to upgrade to a MicroLogix 1100 (e.g., 1763-L16AWA) or MicroLogix 1400.
⚠️ Programming Software Requirements: The 1761- is programmed using RSLogix 500 or the free RSLogix Micro Starter Lite software. It cannot be programmed using Connected Components Workbench (CCW) or Studio 5000 / Logix Designer.
Frequently Asked Questions (FAQ for Conversion)
Q: What is the difference between 1761- and 1761-L32AWA?
A: The has 24V DC digital inputs (sink/source). The 1761-L32AWA features 120V AC digital inputs. Both models use 120/240V AC line power and feature 12 relay outputs.
Q: Can I back up the logic program on a 1761- without a battery?
A: Yes. The 1761- uses non-volatile EEPROM memory to store the ladder logic program and data file settings, so it does not require an internal backup battery to retain memory during power outages.
Q: Does the 1761- support Ethernet communications?
A: Not natively. To connect a 1761- to an Ethernet/IP network, you must use an external serial-to-Ethernet converter module such as the Allen-Bradley 1761-NET-ENNI connected to the RS-232 Mini-DIN port.
Q: What warranty is included with this controller?
A: Every New Surplus and fully tested refurbished 1761- controller is backed by our full 12-month operational warranty.
