Product Introduction & Engineering Value
The Allen-Bradley 1761-NET is a communication interface accessory designed for MicroLogix controller installations where reliable serial connectivity is required. It addresses a common challenge in older automation systems: connecting legacy PLC hardware with programming terminals, operator interfaces, and third-party communication devices.
Many plants still operate MicroLogix systems because the control logic remains stable and proven. The 1761-NET provides a practical way to maintain those installations without unnecessary controller replacement, especially during maintenance upgrades or communication troubleshooting.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model Number | 1761-NET |
| Product Family | MicroLogix |
| Module Type | Communication Interface Adapter |
| Communication Port | RS-232 Serial Interface |
| Supported Protocol | DF1 Serial Communication |
| Application | PLC communication expansion |
| Compatible Controllers | MicroLogix controller platforms |
| Mounting Style | Compact accessory module |
| Communication Method | Point-to-point serial communication |
| Typical Use | Programming, HMI connection, device integration |
| Product Status | Legacy / discontinued support category |
Field Application & The “Trench” Experience
A packaging facility had several MicroLogix controllers installed on older carton sealing machines. During a scheduled maintenance review, the engineering team needed to replace a failed communication adapter that prevented the maintenance laptop from accessing PLC diagnostics.
The replacement controller option was considered, but the machine documentation, spare logic files, and operator familiarity were all built around the existing MicroLogix platform. Installing a compatible 1761-NET restored the serial communication path and avoided a larger control system redesign.
Typical application scenarios include:
- Packaging Line Machine Diagnostics — connecting MicroLogix PLCs with maintenance programming equipment.
- Legacy HMI Serial Integration — maintaining RS-232 links between operator panels and older controllers.
- Small Skid Control Systems — supporting standalone pump, motor, or process packages using MicroLogix controllers.

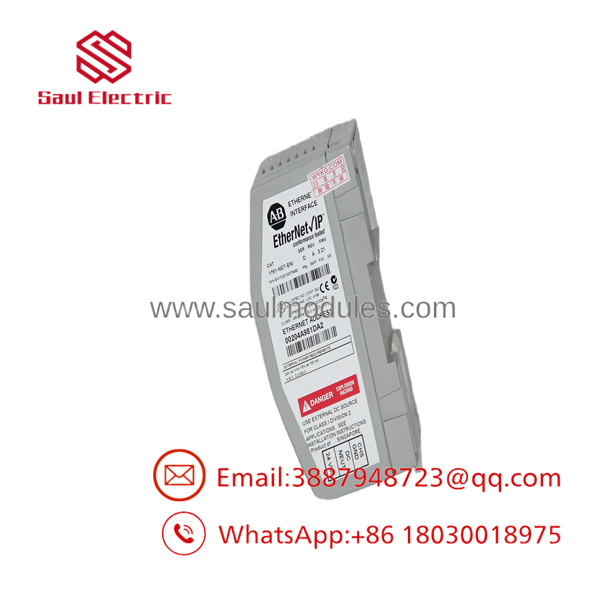

- 1761-NET

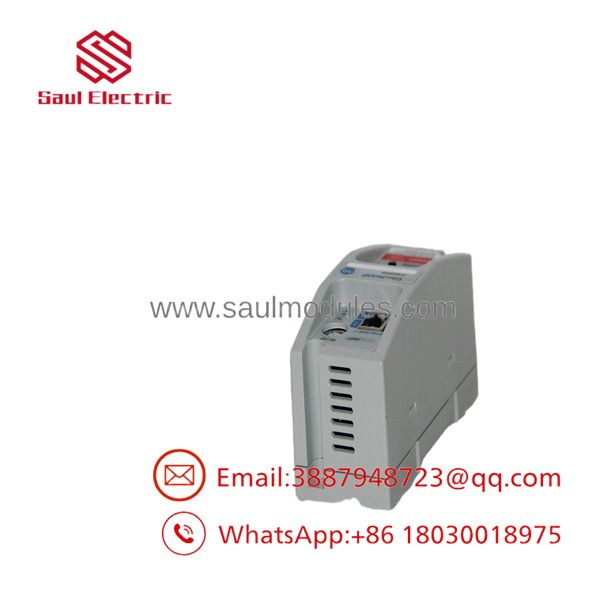

- 1761-NET

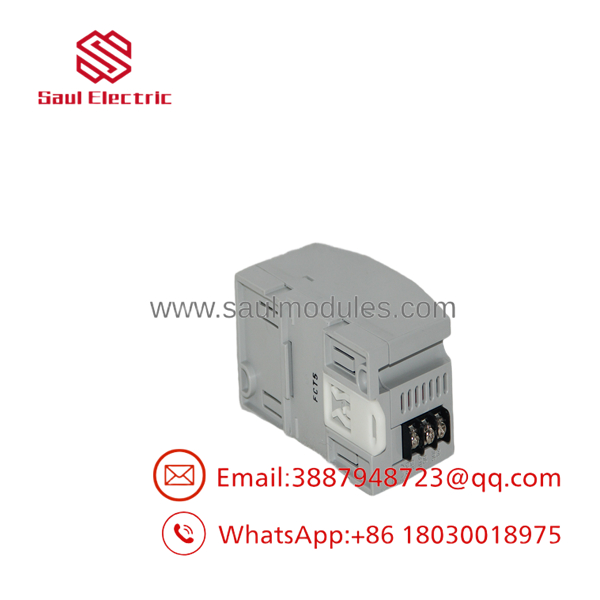

- 1761-NET
Transparency SOP: QA & Testing
Every 1761-NET unit should be verified before installation into an operating control system.
Our inspection process typically includes:
- Visual Examination
- Check housing condition, connectors, labeling, and terminal integrity.
- Confirm model identification matches the required application.
- Communication Verification
- Test serial communication capability.
- Confirm expected communication parameters and protocol behavior.
- Compatibility Review
- Validate controller compatibility.
- Check application requirements before shipment.
- Final Quality Documentation
- Record inspection results.
- Confirm whether the unit is New Surplus or Refurbished inventory.
The Veteran’s Tech Trap Guide
⚠️ PRO TIP: Confirm the Communication Settings First
A replacement 1761-NET may physically install correctly but fail communication if baud rate, parity, node settings, or DF1 configuration do not match the existing system.
⚠️ Watch Legacy Cable Requirements
RS-232 systems are sensitive to cable type and pin configuration. A standard serial cable is not always interchangeable with industrial automation communication cables.
⚠️ Avoid Unplanned PLC Downtime
Before removing an existing communication adapter, document the controller setup, connected devices, and communication parameters. Small configuration details are often lost during emergency replacements.
Dynamic FAQ
Q: What PLC systems are compatible with the Allen-Bradley 1761-NET?
The 1761-NET is designed for use with Allen-Bradley MicroLogix controller systems requiring serial communication capability. Compatibility should be confirmed against the specific controller model and application setup.
Q: Is the 1761-NET still manufactured by Allen-Bradley?
The 1761-NET belongs to the legacy MicroLogix accessory family. Availability today is typically through surplus, refurbished, or industrial automation spare-part suppliers.
Q: Can the 1761-NET replace a failed communication adapter directly?
In many existing installations, yes. However, engineers should verify cable configuration, communication parameters, and connected device requirements before installation.
Q: Does the 1761-NET require PLC programming changes?
Normally, the module itself does not require PLC logic changes, but communication settings within connected equipment may need adjustment.
Q: How is New Surplus 1761-NET inventory verified?
New Surplus units should be inspected for original condition, correct labeling, connector integrity, and communication functionality before being released for industrial use.
Q: What warranty options are available for a 1761-NET replacement module?
Warranty coverage depends on the supplier and inventory classification. Buyers should confirm warranty terms, testing documentation, and return conditions before purchase.
