Product Introduction & Engineering Value
The Allen-Bradley 1762-IF4 solves a common control system requirement: bringing real-world analog measurements into a compact PLC platform. Pressure transmitters, flow meters, level sensors, and position feedback devices can be connected directly through its four-channel analog input architecture.
For maintenance teams supporting older MicroLogix installations, this module remains valuable because many machines still rely on proven analog instrumentation. Replacing a failed input card does not always require redesigning the control system. A correctly configured 1762-IF4 can restore the original measurement path with minimal disruption.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Catalog Number | 1762-IF4 |
| Compatible Platform | MicroLogix 1200 |
| Module Type | Analog Input Expansion Module |
| Number of Inputs | 4 differential inputs |
| Input Type | Voltage and current |
| Current Range | 4–20 mA configurable |
| Voltage Range | ±10V DC |
| Analog Resolution | 15-bit |
| Input Update Time | Selectable: approximately 130–530 ms |
| Isolation | 30V AC / 30V DC rated working voltage |
| Operating Temperature | -20 to 65 °C (-4 to 149 °F) |
| Dimensions | 87 mm depth × 90 mm height × 40 mm width |
| Connection Type | Screw terminal |
Field Application & The “Trench” Experience
A water treatment skid manufacturer had several packaged pump stations running with MicroLogix 1200 controllers. One remote pressure monitoring channel began producing unstable readings after years of operation. The maintenance team initially suspected the transmitter, but testing confirmed the analog input module was no longer processing the 4–20mA signal correctly.
A replacement 1762-IF4 was installed after verifying channel configuration, transmitter loop wiring, and scaling parameters. The system returned to normal operation without changing the PLC program structure.
Common applications include:
- Boiler Feedwater Pressure Monitoring — receiving 4–20mA pressure transmitter signals.
- Catalytic Cracking Unit Temperature Feedback — integrating analog temperature transmitters through signal converters.
- Packaging Machine Servo Position Feedback — monitoring analog position sensors in legacy equipment.

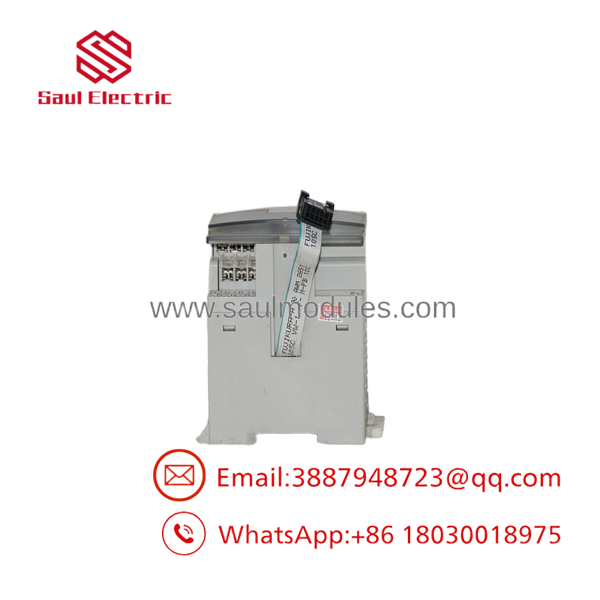

- 1762-IF4

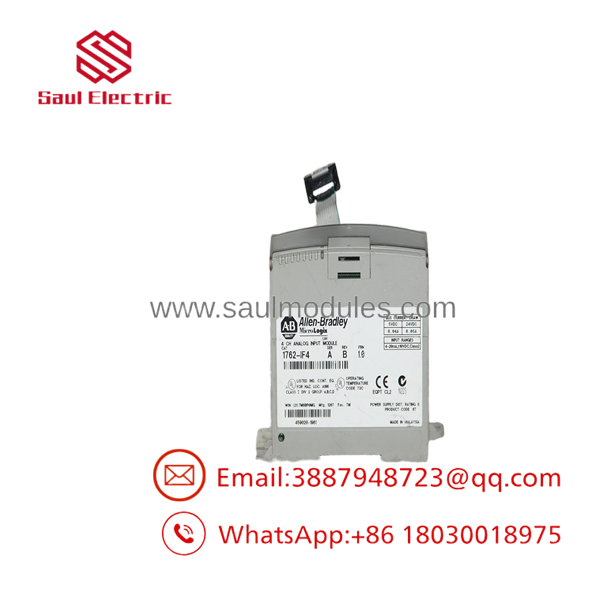

- 1762-IF4
Transparency SOP: QA & Testing
Before a 1762-IF4 module enters inventory as a replacement component, inspection should include:
- Physical Inspection
- Verify catalog number and label markings.
- Check terminal blocks, housing condition, and module connectors.
- Analog Channel Verification
- Apply known voltage and current signals.
- Confirm channel response and scaling behavior.
- Communication Check
- Verify proper recognition by the MicroLogix controller.
- Confirm module configuration parameters.
- Final Review
- Document test results.
- Classify unit condition as New Surplus or Refurbished.
The Veteran’s Tech Trap Guide
⚠️ PRO TIP: Analog Scaling Errors Are More Common Than Hardware Failures
A new 1762-IF4 can appear defective when the real issue is incorrect RSLogix configuration. Each channel must be configured for the correct signal type before troubleshooting hardware.
⚠️ Do Not Ignore Shielding
Long analog cable runs can introduce noise. Use appropriate shielded cable and maintain proper grounding practices, especially near variable frequency drives.
⚠️ Check the Current Loop Before Replacing the Module
A broken transmitter loop, incorrect polarity, or missing 24VDC instrument supply can produce symptoms that look like a failed analog card.
Dynamic FAQ
Q: What type of signals does the 1762-IF4 accept?
The module accepts configurable analog voltage and current inputs, including common industrial 4–20mA transmitter signals and voltage measurement ranges.
Q: Is the 1762-IF4 compatible with MicroLogix 1400 controllers?
The 1762-IF4 was designed for the MicroLogix 1200 expansion system. Compatibility with other MicroLogix platforms should be confirmed based on the controller hardware and project requirements.
Q: Does replacing a 1762-IF4 require PLC program changes?
Usually, no major logic changes are required. However, module configuration, input scaling, and channel settings must match the original application.
Q: What should be checked before installing a replacement 1762-IF4?
Verify the controller model, I/O configuration, analog signal type, wiring polarity, and channel setup before startup.
Q: How can buyers verify New Surplus 1762-IF4 authenticity?
A proper inspection should confirm original labeling, physical condition, correct catalog number, and functional analog input testing before shipment.
Q: Is warranty available for refurbished 1762-IF4 modules?
Warranty availability depends on the supplier and testing process. Buyers should confirm coverage terms and return conditions before purchasing.
