Description
Product Introduction & Engineering Value
The 1762-OW16 gives MicroLogix 1200 controllers additional relay-based control capability where standard transistor outputs are not suitable. Its relay contacts allow engineers to interface with a wide range of field devices, including contactors, solenoid valves, indicator circuits, and motor control relays.
In older machine installations, this module often becomes a critical spare because a single failed output point can stop an entire production sequence. Replacing the I/O module with the correct catalog number helps maintain the original wiring design and PLC program structure.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Catalog Number | 1762-OW16 |
| Compatible System | MicroLogix 1200 |
| Module Type | Digital Relay Output Module |
| Number of Outputs | 16 points |
| Output Type | Normally open relay |
| Voltage Range | 5–265V AC/DC |
| Maximum Current Per Point | 2.5A |
| Maximum Continuous Current Per Module | 16A |
| Maximum Current Per Common | 8A |
| Output Groups | Two isolated groups (Outputs 0–7 and 8–15) |
| Signal Delay | 10 ms ON / 10 ms OFF maximum |
| Power Consumption | 180 mA at 24V DC bus current draw |
| Connection Method | Screw terminal |
| Operating Temperature | -20 to 65 °C (-4 to 149 °F) |
| Dimensions | 90 mm × 40.4 mm × 87 mm |
| Weight | Approx. 285 g |
Field Application & The “Trench” Experience
A food processing facility operated several compact packaging machines controlled by MicroLogix 1200 processors. During a weekend production run, several valve actuators stopped responding. Troubleshooting showed that the PLC processor and program were healthy, but multiple relay outputs on the existing expansion module had failed after years of switching inductive loads.
The maintenance team replaced the damaged output module with a 1762-OW16 after confirming the output voltage requirements and wiring arrangement. Production returned without modifying the control logic.
Common real-world applications include:
- Automated Filling Systems — controlling pump starters, pneumatic valves, and machine status indicators.
- Water Treatment Skids — switching chemical dosing pumps and motor contactors.
- Material Handling Equipment — controlling conveyors, diverters, and actuator solenoids.

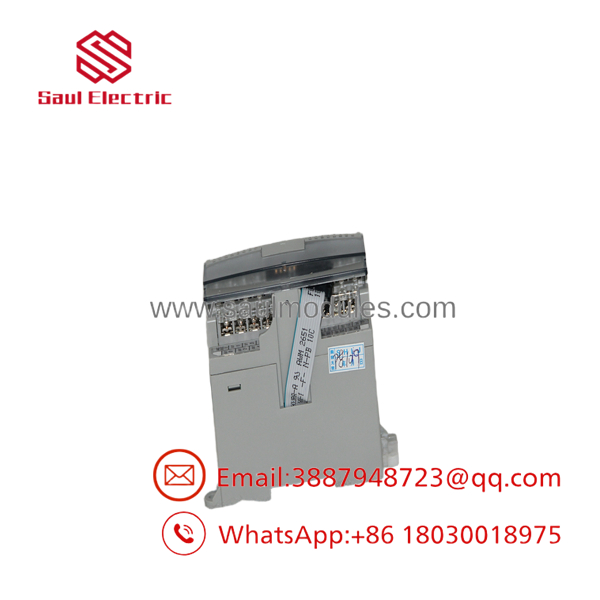

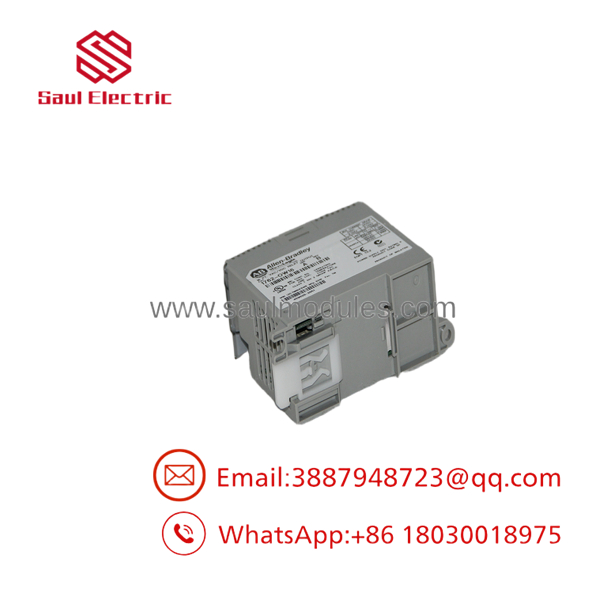

- 1762-OW16
- 1762-OW16
- 1762-OW16
Transparency SOP: QA & Testing
Before a 1762- replacement module is released, the evaluation process should include:
1. Hardware Inspection
- Confirm catalog number and manufacturer markings.
- Inspect relay terminals, housing, and connector condition.
- Check for corrosion, damage, or contamination.
2. Output Function Testing
- Verify each relay channel switches correctly.
- Test contact continuity under simulated load conditions.
- Confirm LED status indication.
3. Compatibility Review
- Confirm MicroLogix 1200 system compatibility.
- Verify power supply distance limitations and I/O configuration.
4. Documentation
- Record inspection results.
- Identify inventory condition as New Surplus or Refurbished.
The Veteran’s Tech Trap Guide
⚠️ PRO TIP: Relay Outputs Are Not Unlimited Switching Devices
The 1762- uses mechanical relay contacts. High-cycle switching applications can shorten relay life, especially with motors, solenoids, and other inductive loads.
⚠️ Check the Load Type Before Installation
A relay contact that handles a resistive heater load may behave differently when switching a motor starter coil. Suppression components may be required to reduce contact wear.
⚠️ Do Not Mix Output Groups Without Reviewing Wiring
The module contains two isolated output groups. Incorrect grouping can create wiring problems during retrofit projects.
Dynamic FAQ
Q: What is the Allen-Bradley 1762- used for?
The 1762- is a 16-point relay output expansion module used with MicroLogix 1200 controllers for controlling AC or DC field devices.
Q: Can the 1762- directly replace a transistor output module?
Not always. Relay outputs and transistor outputs have different electrical characteristics, switching speeds, and load considerations. The replacement must match the original application requirements.
Q: What voltage can the 1762- switch?
The module supports AC/DC loads within its rated operating range of approximately 5–265V AC/DC.
Q: Does the 1762- require changes in RSLogix programming?
Normally, no logic changes are required if the replacement module matches the original I/O configuration. However, the controller project should be checked before startup.
Q: How can buyers verify a New Surplus 1762- module?
Verification should include label inspection, physical examination, relay channel testing, and confirmation that the module matches the required MicroLogix configuration.
Q: Is refurbished 1762- inventory suitable for industrial spare use?
A properly tested refurbished module can be suitable for legacy systems when inspection records, functional testing, and warranty terms are clearly provided.
