Allen-Bradley 1769-IF8 CompactLogix Analog Input Module

Description

Product Introduction & Engineering Value

The Allen-Bradley 1769-IF8 provides eight configurable analog inputs for CompactLogix systems. It accepts common industrial voltage and current signals, including ±10 V, 0–10 V, 0–5 V, 1–5 V, 0–20 mA, and 4–20 mA. The module uses a Delta-Sigma converter and provides up to 16-bit unipolar resolution.

This module is particularly useful when an existing CompactLogix installation needs additional analog measurement without changing the controller platform. Its eight inputs can be configured for differential or single-ended operation, making it suitable for process transmitters, pressure sensors, temperature transmitters, flow instruments, and other analog field devices.

Technical Specifications

Rockwell’s technical data confirms the eight-channel configuration, supported voltage/current ranges, converter type, resolution, power consumption, and mounting arrangements.

Input Filter and Response Time

The 1769-IF8 provides selectable input filtering. This matters when the module is being used for process measurements rather than simple slow-changing signals.

The tradeoff is straightforward: higher filtering reduces response time, while lower-frequency filtering provides greater rejection of line-frequency noise.

Field Application & The “Trench” Experience

A maintenance team is troubleshooting unstable pressure readings on a legacy CompactLogix-controlled chemical dosing skid. The transmitter is healthy, but the PLC value occasionally jumps several percent. The first suspect is the transmitter. It turns out the analog input configuration and filtering are the real issue.

The technician checks the 1769-IF8 channel configuration, confirms the transmitter’s 4–20 mA range, verifies the field wiring, and selects an appropriate input filter. The reading stabilizes without replacing the transmitter or controller.

That’s a typical 1769-IF8 problem: the module can be electrically healthy while the configuration is wrong for the signal being measured.

Specific application scenarios

• 4–20 mA chemical dosing feedback for pump flow and pressure control.
• 0–10 V valve-position feedback on HVAC or process-control equipment.
• 1–5 V pressure-transmitter inputs in legacy process skids.
• Multi-channel tank-level monitoring using several independent analog transmitters.
• Flow measurement loops where filtering must balance noise rejection against control-loop response.

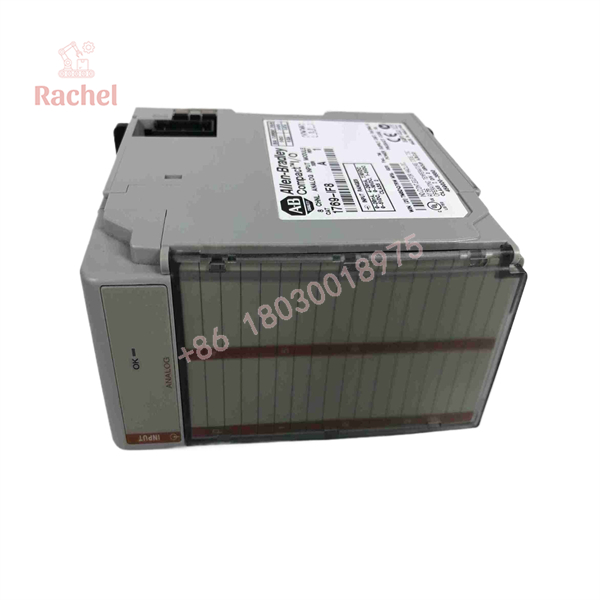

1769-IF8

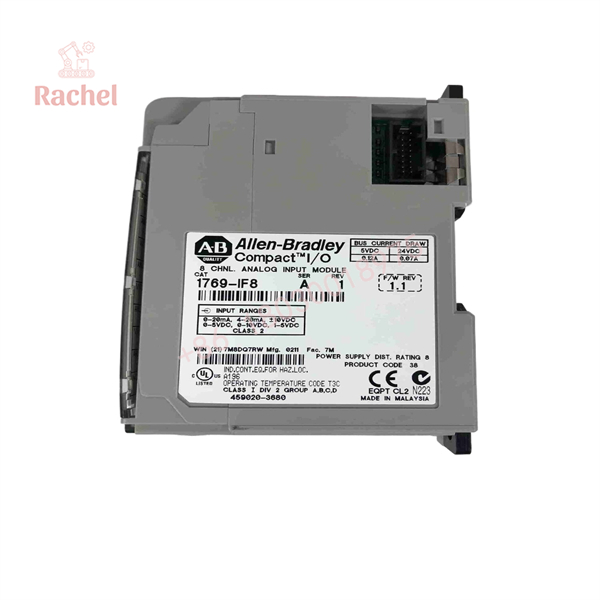

1769-IF8

Transparency SOP: QA & Testing

For New Surplus or Refurbished 1769-IF8 inventory, inspection should include both electrical and configuration checks:

1. Catalog verification — Confirm the module is specifically marked 1769-IF8, not the similar 1769-IF8K or another 1769 analog module.
2. Physical inspection — Check the terminal block, side connectors, mounting tabs, housing, and label.
3. Power test — Install the module in a compatible 1769 Compact I/O test assembly and verify normal startup.
4. Channel test — Apply controlled voltage and current signals to representative channels.
5. Range verification — Test representative 0–10 V and 4–20 mA configurations.
6. Scaling verification — Confirm that the controller receives expected digital values from known analog inputs.
7. Final inspection — Record catalog number, condition, test status, and applicable warranty.

Rockwell currently lists a one-year standard warranty for the 1769-IF8.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Mixing up 1769-IF8 and 1769-IF8K.
They are closely related catalog numbers, but don’t order by appearance alone. Confirm the exact catalog number on the module label and purchase documentation. Rockwell lists both products separately.

⚠️ Trap #2 — Ignoring the signal type.
A 4–20 mA transmitter and a 0–10 V instrument require different channel configurations. Verify the field instrument, wiring, and software configuration together.

⚠️ Trap #3 — Choosing the filter without considering process dynamics.
The 10 Hz filter produces a 100 ms per-channel update time, while the 500 Hz setting reduces that to 6 ms. A filter setting that works for a slow tank level can be inappropriate for a faster control loop.

PRO TIP: When troubleshooting a questionable analog channel, use a calibrated signal source to inject a known current or voltage directly into the 1769-IF8. This separates field-device problems, wiring problems, and module/configuration problems quickly.

Dynamic FAQ

What is the Allen-Bradley 1769-IF8?

The 1769-IF8 is an 8-channel Compact I/O analog input module for CompactLogix systems. It accepts both voltage and current signals.

What input signals does the 1769-IF8 support?

Supported normal operating ranges include ±10 V, 0–10 V, 0–5 V, 1–5 V, 0–20 mA, and 4–20 mA.

Is the 1769-IF8 isolated?

The module is not an individually isolated input module in the same sense as dedicated isolated analog modules. Its specifications include a 30 V AC/DC rated working voltage and ±10 VDC maximum common-mode voltage per channel. Verify the field wiring arrangement against the installation manual before connecting grounded instruments.

What resolution does it provide?

Maximum resolution is 16 bits for unipolar signals and 15 bits plus sign for bipolar signals. Actual resolution depends on the selected filter.

Is the 1769-IF8 still available?

Rockwell currently identifies the product lifecycle status as Active Mature and indicates that a replacement is available.

How do I verify New Surplus authenticity?

Check the physical 1769-IF8 catalog number, manufacturer labeling, serial/identification information, and condition. Rockwell’s product page also provides product registration and authenticity-related functions.

What warranty applies?

Rockwell Automation currently lists a one-year standard warranty for the 1769-IF8. For New Surplus or Refurbished units supplied by an independent distributor, verify the supplier’s specific warranty terms before purchase.
