Allen-Bradley 1769-L30ERM CompactLogix 1 MB Controller

Description

Product Introduction & Engineering Value

The 1769-L30ERM combines standard CompactLogix control with integrated EtherNet/IP communications and motion control. Its two Ethernet ports support network architectures including DLR, while the integrated motion capability supports up to four CIP Motion axes. This makes the controller suitable for compact machines where PLC sequencing, Ethernet communications, and coordinated servo control need to reside in one controller.

The important procurement detail is the exact suffix. 1769-L30ERM is not the same product as 1769-L30ERMS or 1769-L30ERMK. The “S” version is a Compact GuardLogix safety controller, while the “K” version is the conformally coated variant. Rockwell lists these as separate catalog numbers.

Technical Specifications

Rockwell’s current product information confirms the 1 MB memory, Ethernet/USB connectivity, 105 mm depth, and 1-year standard warranty.

Firmware Considerations

Firmware deserves particular attention with this controller. Rockwell’s current compatibility database lists Series A firmware revisions through 38.011, and Rockwell identifies Version 38 as the last major release supported for the 1769-L30ERM/1769-L30ERMK family.

When replacing a controller, match the firmware revision to the Studio 5000 project rather than assuming the newest available firmware is automatically appropriate.

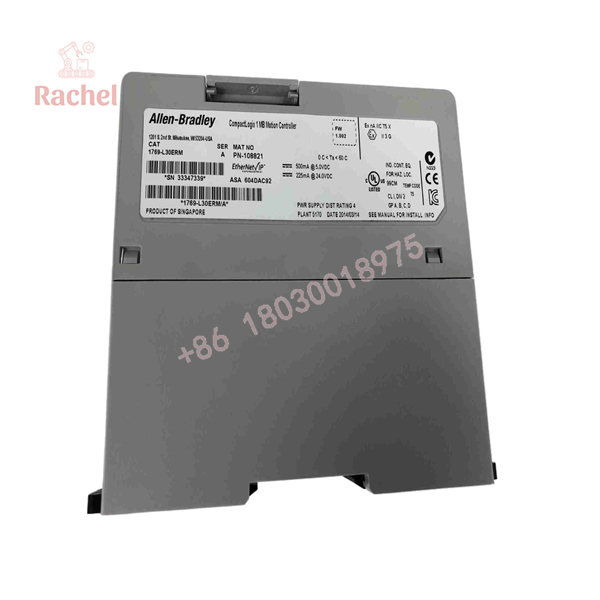

1769-L30ERM

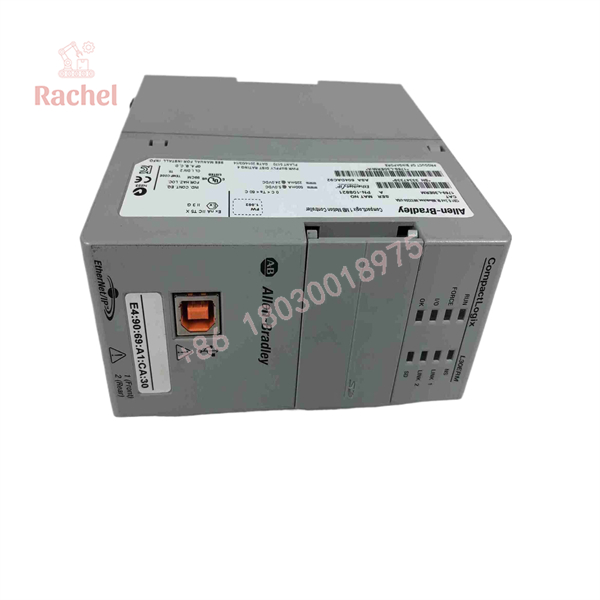

1769-L30ERM

Field Application & The “Trench” Experience

A machine builder has a compact indexing machine with four servo axes, several EtherNet/IP I/O adapters, and a small number of local 1769 I/O modules. The original controller fails during a scheduled maintenance window.

The spare arrives with the correct 1769-L30ERM catalog number, but the maintenance engineer checks one more thing before installing it: the firmware revision. The machine’s Studio 5000 project was created around a specific controller revision. After confirming compatibility, the technician installs the controller, verifies the SD card contents, restores the Ethernet configuration, and checks each motion axis before releasing the machine.

The lesson is straightforward: controller replacement is a project-compatibility exercise, not merely a hardware swap.

Specific application scenarios

• Four-axis packaging machinery using CIP Motion for coordinated servo positioning.
• Indexing and pick-and-place equipment where controller logic and servo motion share an EtherNet/IP architecture.
• Compact assembly machines requiring up to eight local Compact I/O expansion modules.
• Machine cells using DLR where dual Ethernet ports provide the physical network topology required for ring-based EtherNet/IP communication.

Transparency SOP: QA & Testing

For New Surplus or Refurbished 1769-L30ERM inventory, the inspection process should include:

Catalog verification: Confirm the exact 1769-L30ERM identifier and distinguish it from L30ERMS and L30ERMK.

Physical inspection: Examine the Ethernet connectors, USB port, SD card slot, terminal connections, housing, and mounting hardware.

Controller power-up: Install the controller in a compatible CompactLogix test assembly and verify normal startup behavior.

Communication test: Establish communication through the Ethernet interface and confirm controller identification.

Memory verification: Confirm the controller reports the expected 1 MB user memory.

Motion verification: Where suitable test equipment is available, verify CIP Motion communication with a compatible test axis.

Final QA: Record catalog number, Series, firmware revision, serial information, test status, and warranty condition.

Rockwell currently lists a one-year standard warranty for the 1769-L30ERM.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Confusing L30ERM with L30ERMS.
The 1769-L30ERMS is a Compact GuardLogix safety controller, with 1 MB standard memory plus 0.5 MB safety memory. It is not simply a safety-enabled version that can be substituted without engineering review.

⚠️ Trap #2 — Ignoring the firmware revision.
The current Rockwell compatibility information reaches revision 38.011, but the existing application may use an earlier revision. Verify the project before updating firmware.

⚠️ Trap #3 — Forgetting the SD card.
The controller ships with a 1 GB SD card and supports up to 2 GB. Do not assume that moving the controller automatically transfers every aspect of the original application environment. Check the controller’s memory and SD-card configuration before commissioning.

PRO TIP: For a motion-control replacement, record the controller firmware, Studio 5000 project revision, Ethernet configuration, motion-axis configuration, and SD-card contents before removing the original CPU.

Dynamic FAQ

What is the Allen-Bradley 1769-L30ERM?

It is a CompactLogix 5370 L3 controller with 1 MB memory, dual Ethernet ports, DLR capability, and integrated CIP Motion functionality.

How many motion axes does the 1769-L30ERM support?

Rockwell specifies up to four CIP Motion axes, including kinematics capability.

How many local I/O modules can it support?

The 1769-L30ERM supports up to eight local I/O expansion modules.

Does the 1769-L30ERM have two Ethernet ports?

Yes. Rockwell describes the controller as having dual Ethernet with DLR capability.

Is the 1769-L30ERM the same as the 1769-L30ERMK?

No. The L30ERMK is the conformally coated version of the 1 MB CompactLogix motion controller. Rockwell lists it separately from the standard L30ERM.

What is the difference between 1769-L30ERM and 1769-L30ERMS?

The L30ERM is a standard CompactLogix motion controller. The L30ERMS is a Compact GuardLogix safety controller with 1 MB standard memory plus 0.5 MB safety memory.

How do I verify New Surplus authenticity?

Verify the physical catalog number, Series, serial/identification information, and product labeling against Rockwell documentation. For a controller, also record the firmware revision and confirm that the unit communicates correctly in a controlled test environment.

What warranty is available?

Rockwell currently lists a one-year standard warranty for the 1769-L30ERM. For independent New Surplus or Refurbished inventory, confirm the seller’s separate warranty terms before purchase.
