Description
Product Introduction

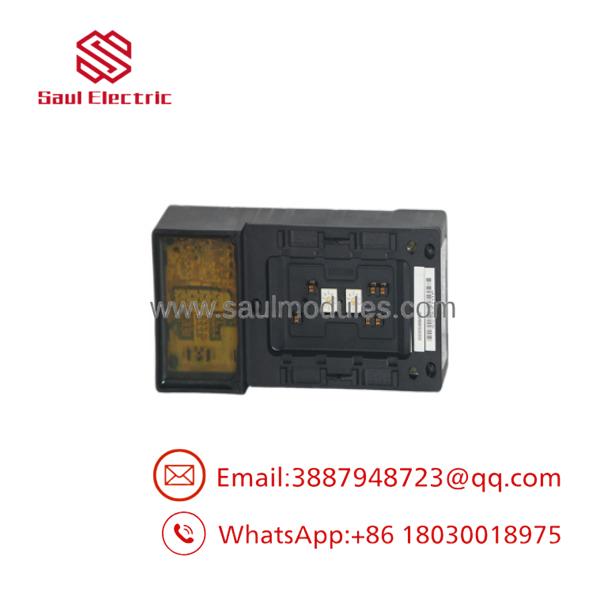

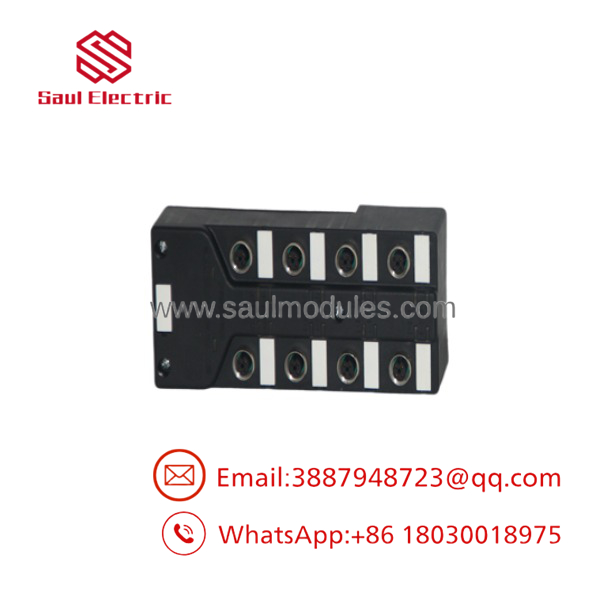

The Allen-Bradley 1792D-8BVT8D is an IP67-rated, on-machine digital I/O block designed for direct installation on equipment without an external control cabinet. Communicating across standard DeviceNet networks, it handles 8 universal 24V DC inputs alongside 8 sourcing 24V DC outputs. This module moves I/O termination out of distant junction boxes and mounts it directly onto machine frames, drastically reducing wire runs.
Unlike standard panel-mounted flex I/O racks, the 1792D-8BVT8D combines input and output channels onto dense M12 micro-connectors using Y-splitter cables. It integrates DeviceLogix smart component technology for fast, localized logic execution right at the node level. That capability offloads repetitive sub-routines from your main PLC CPU while maintaining full network visibility.
Key Technical Specifications
| Parameter | Value / Technical Specification |
| Catalog Number | 1792D-8BVT8D |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Network Protocol | DeviceNet (Poll, Change-of-State, Cyclic) |
| Node Address Range | Rotary Switches / Software Configuration (00 to 63) |
| Digital Inputs | 8 Points, 24V DC Universal PNP (Sourcing) or NPN (Sinking) |
| Digital Outputs | 8 Points, 24V DC Sourcing (PNP), 0.5A per channel |
| Max Output Current | 4.0A total per block |
| Connector Interface | 5-pin M12 Micro-style ports (Requires Y-splitters for dual channels) |
| Inrush Current (Outputs) | 1.2A for 10ms |
| Diagnostics | Short circuit, off-wire detection, and output overload indicators |
| Ingress Rating | IP67 (NEMA 4X/6P equivalent when mated) |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
Application Scenarios & The “Trench” Experience
It’s 2:15 AM on a Tuesday. A high-speed automotive stamping line grinds to a halt because a coolant-soaked I/O block lost communication on the DeviceNet trunk line. The line loses $3,500 every minute it stays down. The maintenance crew swaps out three prox switches before realizing the physical housing on the field I/O block cracked, shorting out the 24V DC auxiliary power rail. Having a drop-in 1792D-8BVT8D ready on the shelf turns a potential 8-hour nightmare into a simple 15-minute module replacement.
Field Applications
- Automotive Body-in-White Lines: Direct tool-tray mounting where weld spatter and high vibration ruin standard enclosure-bound modules.
- High-Speed Packaging Machinery: Machine-frame mounting near photoeyes and solenoids, keeping sensor cable runs under three feet.
- Bottling and Conveyor Systems: Decentralized sorting stations that require local DeviceLogix processing to trigger pneumatic pushers instantly.
1792D-8BVT8D
1792D-8BVT8D
Transparency SOP: Quality Assurance & Testing
We don’t ship untested surplus boxes. Every 1792D-8BVT8D goes through rigorous physical and functional verification before it leaves our facility:
- Inbound Visual Inspection: We check for housing cracks, pin corrosion on M12 ports, torn backplane gaskets, and missing rotary switch covers.
- DeviceNet Handshake Test: The block mounts to a physical Allen-Bradley test rack. We power up the module and establish a live DeviceNet connection via RSNetWorx.
- Full I/O Channel Simulation: Every input channel is forced high/low with NPN and PNP field simulators. Outputs are loaded to 0.5A continuous current to verify short-circuit trip thresholds and diagnostic reporting.
- Firmware Logging: We verify internal revision numbers (Series A vs. Series B) and reset the unit to factory network settings (Node 63, 125k baud).
- ESD & Environmental Packaging: The unit gets cleaned, sealed in heavy antistatic shielding, and boxed in custom-cut foam.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. The Y-Splitter Cable Confusion
This block only has 8 physical M12 ports for 16 total I/O points (8 in, 8 out). Do NOT wire a standard straight-through 4-pin cable and wonder why half your inputs don’t respond. You MUST use standard M12 Y-splitter cords to access the secondary channel on Pin 2.
❗ 2. Series A vs. Series B DeviceLogix Compatibility
Series A blocks handle basic I/O pass-through. Series B modules introduced local logic control (DeviceLogix). If your PLC program relies on local logic routines embedded directly inside a Series B unit, swapping in an older Series A module will break machine functionality, even if the node stays online.
⚠️ 3. Auxiliary Output Power Isolation
Outputs on this unit require an independent 24V DC auxiliary power supply feed routed through the base plate. If your network LED lights up green but none of your solenoid valves fire, check the Aux Power LED first. The network trunk power alone cannot drive the 0.5A output transistors.
❗ 4. Torque Specs on Base Mounting
In our field experience, 80% of premature field failures stem from water ingress at the backplane gasket. Tighten the module-to-cable-base screws evenly to 11–13 in-lbs. Overtightening cracks the plastic housing; undertightening ruins the IP67 seal.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the Allen-Bradley 1792D-8BVT8D hot-swappable?
A: Yes. It supports Removal and Insertion Under Power (RIUP). You can unbolt the upper electronic block from its cable base without disrupting DeviceNet trunk wiring or powering down adjacent nodes.
Q: Can I use both NPN and PNP sensors on the same module?
A: Yes. The inputs are auto-configuring for 24V DC sinking (NPN) or sourcing (PNP) devices. However, outputs are strictly sourcing (PNP).
Q: Rockwell has discontinued this series. Are these units new or refurbished?
A: Because Rockwell officially discontinued the 1792D series, factory-direct stock no longer exists. We source New Surplus (unused factory-sealed inventory from plant spares) and fully tested Refurbished modules. Every unit includes our 12-month operational warranty.
Q: How do I set the DeviceNet node address on a replacement unit?
A: You can set the node address from 00 to 63 using the onboard rotary switches under the sealed protective cap, or set switches to 64–99 to enable software addressing via RSNetWorx for DeviceNet.
Q: Why buy surplus from us instead of searching secondary auction sites?
A: Auction sites sell “power-on only” or untested pulls that often have blown output channels from past short circuits. We load-test every output pin to 0.5A, verify DeviceNet network communication, and back every shipment with a 1-year replacement warranty.
