Description
Product Introduction & Engineering Value
The 1794-ACN15 is the ControlNet adapter many plants used when they needed FLEX I/O on a deterministic network. It provides the network interface and backplane power conversion needed to tie local FLEX modules into a ControlNet architecture without redesigning the whole I/O rack.
For maintenance teams, the appeal is simple: known behavior, simple replacement logistics, and wide legacy installed base. It is a practical fit for distributed I/O points where ControlNet is already standardized, especially in older Rockwell-heavy control systems that still need parts support and exact form-factor compatibility.
Technical Specifications
- Catalog number: 1794-ACN15
- Brand: Allen-Bradley
- Product family: FLEX I/O
- Communication protocol: ControlNet V1.5
- Communication rate: 5 Mbps
- Nominal supply voltage: 24 V DC
- Input voltage range: 19.2 to 31.2 V DC
- Flexbus output current: 640 mA maximum
- Isolation voltage: 850 V DC
- Current draw: 450 mA maximum
- Power dissipation: 4.6 W maximum at 19.2 V DC
- Mounting: DIN rail or panel, open-style/IP20
Field Application & Trench Experience
A refinery controls engineer once had a dead 1794-ACN15 on a FLEX I/O string feeding valve feedback and permissives. The replacement was not hard mechanically, but the real work was verifying network addressing, checking the ControlNet media, and confirming the rack still had clean 24 V DC under load. That kind of job is where this part earns its keep: it is not glamorous, but it keeps a line from sitting idle.
Typical niche uses include catalytic cracking unit temperature-control I/O islands, compressor skid permissive and trip logic, and remote tank farm valve and level monitoring where ControlNet is already embedded in the plant standard.

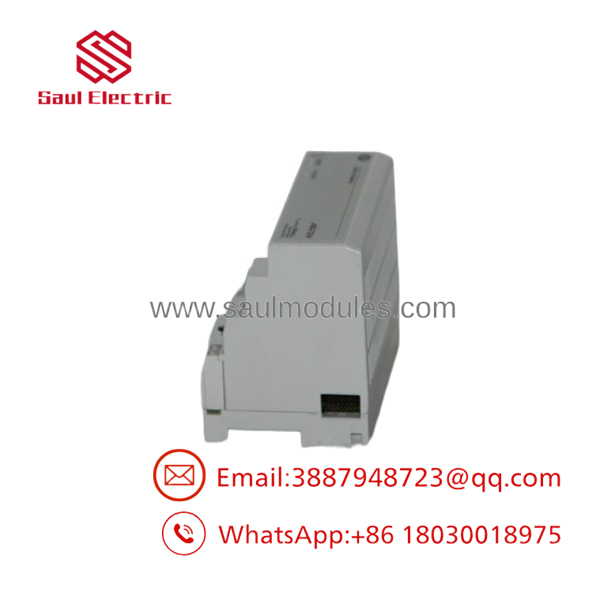

1794-ACN15

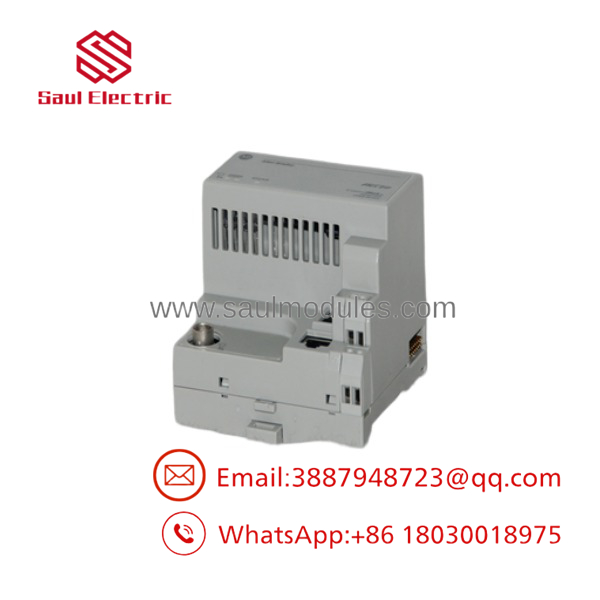

1794-ACN15

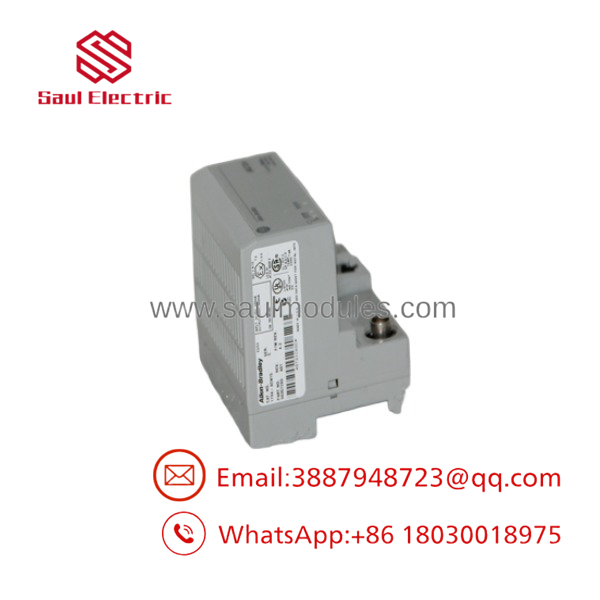

1794-ACN15
Transparency SOP: QA & Testing
- Visual inspection for connector damage, corrosion, cracked housings, and missing hardware.
- Power-up verification on a bench fixture with supply current and status LEDs checked against expected behavior.
- Communication test on a ControlNet-capable test rack to confirm adapter registration and module recognition.
- Final burn-in or extended run check for intermittent faults before shipment.
Veteran’s Tech Trap Guide
⚠️ Don’t assume a like-for-like part swap is enough. ControlNet network settings, node configuration, and rack addressing still need to match the original installation.
⚠️ Watch the power budget. The adapter can supply Flexbus current, but the total I/O mix still matters. A rack that was “fine yesterday” can fail after a module change if the load is marginal.
PRO TIP: Check the exact series and revision before ordering. FLEX I/O legacy parts often look interchangeable until you hit a firmware, media, or installation detail that breaks the replacement plan.
Dynamic FAQ
Q1: Is the 1794-ACN15 a new surplus unit?
A: It can be offered as new surplus, meaning unused OEM stock sourced from excess inventory, or refurbished depending on the listing.
Q2: Is this module a direct replacement for my existing 1794-ACN15?
A: Yes, if your original part number, series requirements, network type, and mounting arrangement match.
Q3: What network does it support?
A: ControlNet, with a 5 Mbps communication rate.
Q4: How many FLEX I/O modules can one adapter support?
A: Up to eight I/O modules per adapter, depending on the module mix and system configuration.
Q5: What should I verify before installation?
A: Supply voltage, ControlNet media integrity, node configuration, and overall Flexbus current loading.
Q6: Do you provide warranty on new surplus or refurbished stock?
A: Warranty terms depend on the seller, but reputable industrial suppliers typically provide coverage for both new surplus and refurbished units.
