Product Introduction & Engineering Value
The 1794-OB32P is the kind of output module you use when a FLEX I/O rack has to drive a lot of discrete field loads without a custom wiring redesign. It gives you 32 sourcing outputs in a compact form factor, with electronic protection built in for overload, short-circuit, and overtemperature events.
It is especially useful in legacy Allen-Bradley installations where terminal bases, wiring schedules, and rack layouts are already standardized. The protected output design reduces nuisance failures in the field, which is why this module shows up often in replacement jobs and control-panel refresh work.
Technical Specifications
| Parameter | Value |
|---|---|
| Catalog number | 1794-OB32P |
| Product family | FLEX I/O |
| Output type | 24 V DC sourcing |
| Number of outputs | 32 |
| Output grouping | 2 groups of 16 |
| Max current per channel | 0.5 A |
| Max current per module | 14 A |
| On-state voltage range | 10 to 31.2 V DC |
| Off-state leakage | 0.5 mA max |
| On-state voltage drop | 0.5 V DC max |
| Flexbus current | 80 mA |
| Power dissipation | 5.3 W max at 31.2 V DC |
| Operating temperature | 0 to 55 °C |
| Mounting | DIN rail or panel |
| Terminal base compatibility | 1794-TB32 / 1794-TB32S |
Field Application & Trench Experience
A steel plant had a worn FLEX I/O output slice that ran solenoids, stack lights, and interlock relays on a packaging conveyor. The swap to a 1794-OB32P looked routine until a few loads tripped instantly. The issue was not the module; it was a field wiring mistake that crossed the two output groups and overloaded one side of the base. Once corrected, the machine ran normally.
Common niche uses include conveyor diverter control, burner management auxiliary outputs, and remote machine interlocks on legacy DeviceNet, ControlNet, or adapter-based FLEX I/O systems.

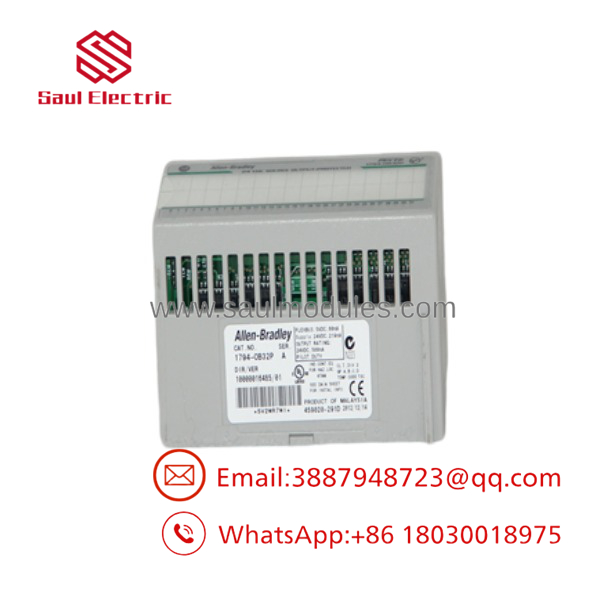

1794-OB32P

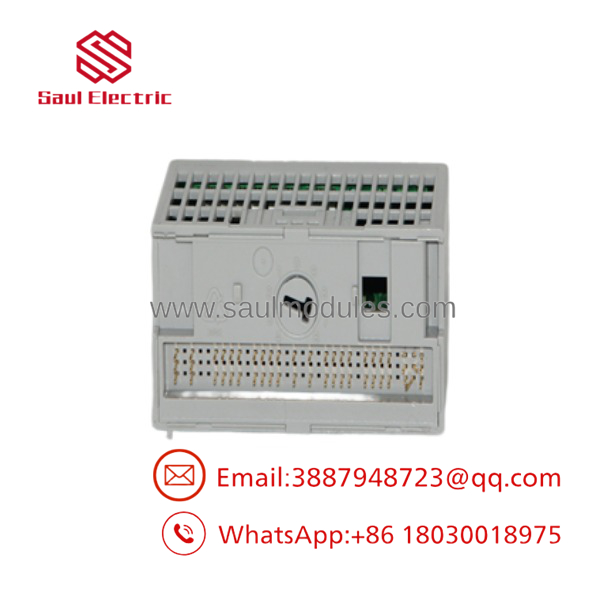

1794-OB32P
Transparency SOP: QA & Testing
- Visual inspection for heat stress, connector damage, bent pins, and terminal wear.
- Power-up verification to confirm proper module status and output indicator behavior.
- Load test on representative 24 V DC loads to confirm switching and protection response.
- Group-by-group output verification to make sure both 16-point banks operate correctly.
- Final pre-shipment soak test for intermittent faults when customer spec requires it.
Veteran’s Tech Trap Guide
⚠️ People forget the grouping. This is not just 32 outputs in a flat pile; it is two banks of 16, and the load distribution matters.
⚠️ Check your terminal base. If the job calls for 1794-TB32 or 1794-TB32S and you grab the wrong base, the install stops being a simple swap.
PRO TIP: Don’t ignore surge and inrush on real field loads. A relay coil or solenoid that looks harmless on paper can still hammer the output if the supply is marginal or the wiring is sloppy.
Dynamic FAQ
Q1: Is the 1794-OB32P a direct replacement for an existing FLEX I/O output module?
A: Yes, if the terminal base, output type, and system configuration match your original installation.
Q2: How many outputs does it have?
A: 32 sourcing outputs, arranged as two groups of 16.
Q3: What is the current rating per output?
A: Up to 0.5 A per channel, with 14 A maximum per module.
Q4: Is the output protection electronic or fuse-based?
A: It is electronically protected, so the module can shut down on overload, short-circuit, or overtemperature conditions.
Q5: Is this sold as new surplus or refurbished stock?
A: Either is common in the market. New surplus means unused OEM inventory; refurbished means tested and restored for reuse.
Q6: Does it carry warranty coverage?
A: Warranty depends on the supplier, but reputable industrial parts sellers usually provide coverage for both new surplus and refurbished units.
