Description
Product Introduction & Engineering Value
The 2094-BC02-M02 is a Kinetix 6000 integrated axis module built for multi-axis motion systems that need a compact power-and-drive package. It combines the converter and inverter functions in one unit, which simplifies cabinet layout and reduces the number of separate motion components in the panel.
In the field, this module usually matters because motion downtime is expensive and replacement compatibility is unforgiving. If the original machine used a 2094-series integrated axis module, an exact replacement keeps the line moving without reworking the architecture or requalifying the motion stack from scratch.
Technical Specifications
| Parameter | Value |
|---|---|
| Catalog number | 2094-BC02-M02 |
| Product family | Kinetix 6000 |
| Module type | Integrated Axis Module |
| Input voltage | 400/460 V AC, 3-phase |
| Input frequency | 50/60 Hz |
| Converter rating | 15 kW |
| Inverter rating | 15 A |
| Bus voltage | 650 V DC nominal |
| Control input | 95 to 264 V AC, 1-phase |
| Motor output | 0 to 460 V rms, 3-phase |
| Output current | 14.6 A continuous / 36.4 A peak reported in source listing |
| Safety | Safe Torque Off |
| Operating temperature | 0 to 50 °C |
| Weight | About 5.08 kg |
Field Application & Trench Experience
A packaging OEM had a Kinetix 6000 axis drop offline on a forming station, and the quickest fix was a like-for-like 2094-BC02-M02-S swap. The tricky part was not the hardware exchange; it was confirming the DC bus, control power, and drive configuration all matched before re-enabling motion. Once the axis was revalidated, the machine was back in service without a full panel rebuild.
Good niche fits include high-speed indexing tables, synchronized conveyor axes, and gantry or transfer systems where the original Kinetix 6000 architecture is still in service.

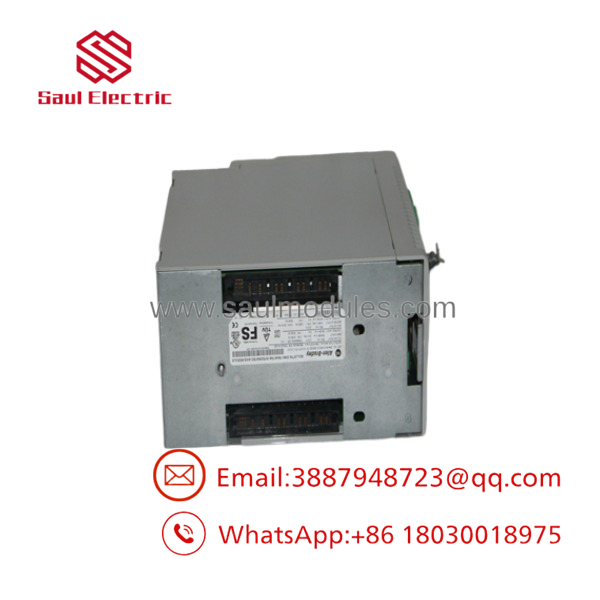

2094-BC02

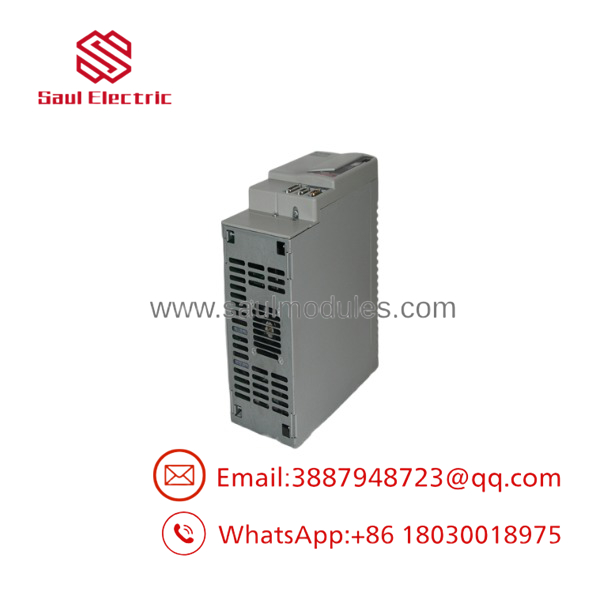

2094-BC02

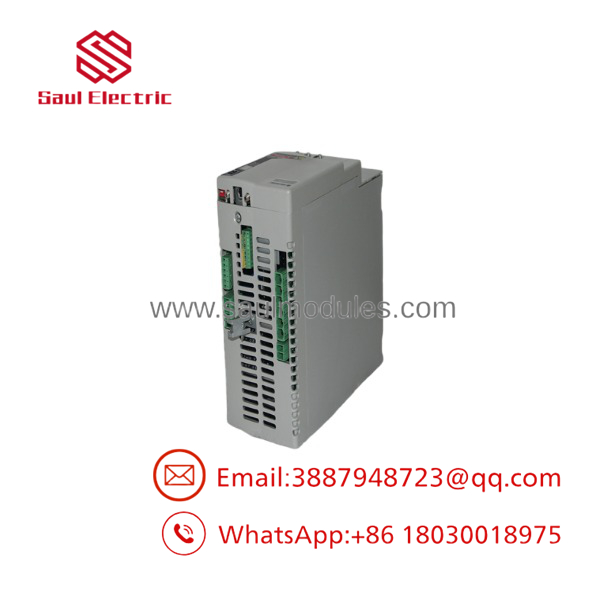

2094-BC02
Transparency SOP: QA & Testing
- Visual inspection for heat discoloration, connector damage, bent pins, and cabinet contamination.
- Bench or rig verification of power-up behavior, fan/thermal condition, and status indication.
- Static electrical checks for supply, bus, and control power compatibility.
- Functional run test on a motion test stand where available, including fault reset and enable behavior.
- Final inspection for shipping-safe packaging and ESD handling compliance.
Veteran’s Tech Trap Guide
⚠️ Don’t mix up the exact suffix. On Kinetix hardware, one letter can change safety features, interface details, or compatibility expectations.
⚠️ Confirm the bus and supply architecture before installation. This is not a simple “bolt it in and go” part if the upstream power section or control scheme changed.
PRO TIP: Treat STO and control wiring as part of the replacement, not an afterthought. A perfectly good drive can look bad if the safety chain or enable logic is not restored exactly.
Dynamic FAQ
Q1: Is the 2094-BC02-M02-S an exact replacement for my failed unit?
A: Yes, if your original drive is the same catalog number and the surrounding motion system matches the expected Kinetix 6000 configuration.
Q2: What voltage class does it use?
A: 400/460 V AC input with a 650 V DC bus architecture.
Q3: Does it include Safe Torque Off?
A: Yes, the -S suffix indicates Safe Torque Off capability.
Q4: What kind of application is this module used for?
A: Multi-axis servo motion systems, especially in packaging, transfer, indexing, and synchronized machine motion.
Q5: Is this sold as new surplus or refurbished stock?
A: Either is common in the industrial market. New surplus means unused OEM inventory, while refurbished means tested and restored for reuse.
Q6: What warranty is available?
A: Warranty depends on the supplier and stock condition, but reputable industrial sellers usually back both new surplus and refurbished units with coverage.
