Description
Product Introduction
The Allen-Bradley 2364-SPM03A is an internal signal processing module (SPM) engineered for the legacy 1336, 1336 PLUS, and 1336 PLUS II series of adjustable frequency AC drives. Positioned between the main control board and the solid-state power bridge, this board converts low-voltage logic commands into high-current gate firing signals for the inverter stage’s IGBTs.
Designed for demanding motor control environments, the 2364-SPM03A provides critical signal isolation, current sensing feedback, and onboard fault protection logic to prevent short-circuit conditions across the DC bus. Its rugged multi-layer PCB layout withstands the high thermal and electromagnetic stress common in heavy industrial motor control centers.
Key Technical Specifications
| Parameter | Value |
| System Line Compatibility | Allen-Bradley 1336, 1336 PLUS, 1336 PLUS II AC Drives |
| Board Category | Signal Processing Module (SPM) / Inverter Gate Drive Board |
| Primary Function | Logic-to-Gate Pulse Conversion & Current Feedback Sensing |
| DC Bus Voltage Sensing | Integrated high-voltage divider interface |
| Gate Drive Output | Isolated optical/transformer gate drive channels |
| Operating Ambient Temp | 0°C to +50°C (32°F to 122°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Humidity Rating | 5% to 95% non-condensing |
| Mounting Style | Internal chassis standoff mount within 1336 drive enclosure |
| Weight | Approx. 1.8 lbs (0.82 kg) |
Application Scenarios & The “Trench” Experience
Picture a critical water treatment facility where a 100 HP blower driven by a legacy Allen-Bradley 1336 PLUS drive suddenly trips with a fatal Overcurrent or Phase Fault during peak morning demand. Opening the drive cabinet reveals no damaged IGBTs, but the drive refuses to reset because the signal processing board lost its gate drive channel power rail. Upgrading the entire cabinet to a PowerFlex 750 drive requires rewiring control harnesses, changing PLC communication blocks, and days of panel fabrication. Having a tested 2364-SPM03A on the shelf lets the electrical maintenance crew replace the internal board in under an hour, saving tens of thousands in emergency capital expenditure.
- Municipal Water & Wastewater Pumps: Drives large centrifugal raw water pumps requiring continuous 24/7 variable frequency operation.
- Industrial HVAC & Ventilation Blowers: Manages speed control on supply and exhaust fans in manufacturing cleanrooms and processing facilities.
- Material Handling Conveyor Lines: Regulates acceleration and deceleration profiles for high-tonnage mining or automotive assembly belts.
- Extruders & Mixers: Supplies tight torque response and current monitoring on heavy-duty rubber and plastic process machinery.

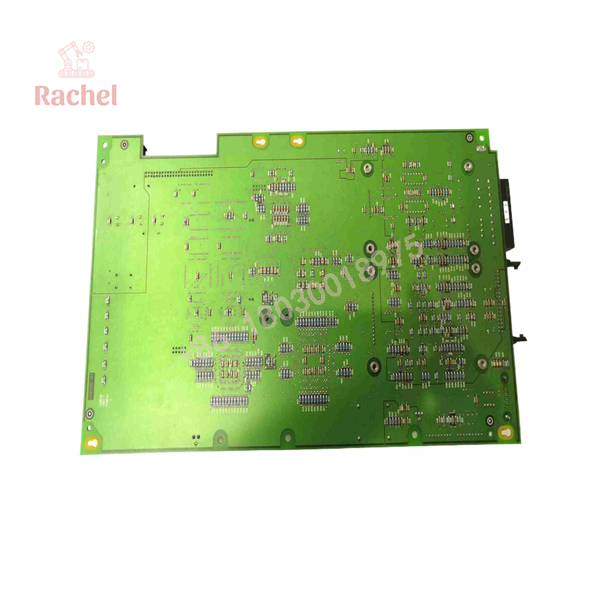

2364-SPM03A

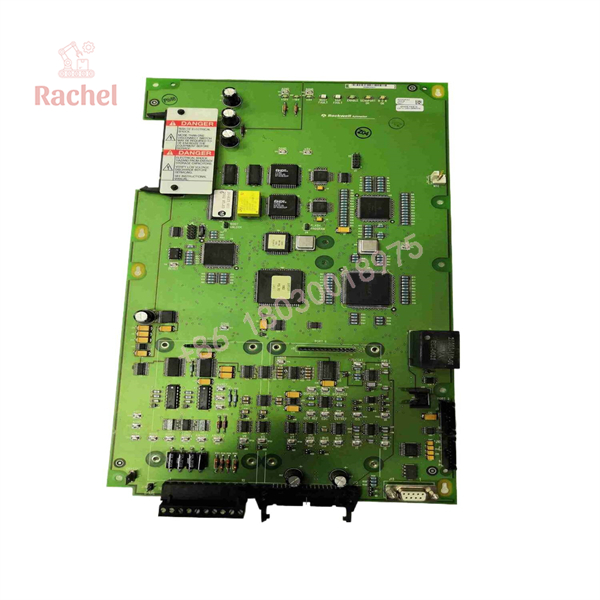

2364-SPM03A
Transparency SOP: Quality Assurance & Testing
We test our AC drive internal modules on live power rigs. Here is how every Allen-Bradley 2364-SPM03A board is verified before leaving our facility:
- Inbound Visual & Trace Audit: Inspection for scorched gate resistors, swollen electrolytic capacitors, cracked trace lines, and connector pin corrosion.
- Component-Level Resistance Checks: High-precision meter testing across gate drive outputs and DC bus feedback networks to catch shorted optical couplers or diodes.
- Internal Power Rail Energization: Board is mounted in a test chassis to verify on-board voltage regulators deliver stable isolated power to the gate drive channels.
- PWM Pulse Pattern Verification: High-bandwidth oscilloscope testing on all six gate drive outputs to ensure clean, square PWM firing pulses without ringing or delay.
- Full Drive Load Testing: Board is installed into a matching 1336 drive frame connected to a three-phase induction motor and run under load to verify stable current feedback.
- Anti-Static & Protective Packaging: Sealed in static-shielding bags and wrapped in heavy-duty foam crates to withstand shipping transit.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
In our field experience, internal drive boards are frequently ruined during installation due to overlooked mechanical details. Keep these warnings in mind:
- ⚠️ Discharge the DC Bus Completely: Never touch or replace internal boards immediately after disconnecting main AC power! The DC bus capacitors inside a 1336 drive hold lethal voltages (>600V DC) for several minutes. Measure the DC+ and DC- bus terminals with a DMM to confirm voltage is under 50V DC before opening the housing.
- ❗ Check Power Semiconductors First: Do not install a new 2364-SPM03A into a drive with shorted IGBTs! If the power module suffered a catastrophic short, high voltage likely back-fed into the gate drive lines. Installing a fresh board into a blown power bridge will immediately destroy the new 2364-SPM03A upon power-up.
- ⚠️ Inspect Ribbon Cable Connectors: Handle the multi-pin ribbon cables connecting the main control board to the SPM board with care. Bent pins or misaligned ribbon connectors will cause random phase loss faults or prevent gate firing entirely.
- ❗ Thermal Paste Integrity: If your drive frame requires removing thermal pads or heatsink isolation barriers during the teardown, ensure all surfaces are clean and fresh thermal compound is applied properly before reassembly.
Frequently Asked Questions (FAQ)
Q: Is the 2364-SPM03A board interchangeable across all 1336 drive horsepower ratings?
A: No. While the 2364-SPM series shares similar control architecture across the 1336 product line, specific board revisions correspond to particular frame sizes and voltage classes. Always match the exact part number and suffix to your drive nameplate specs.
Q: Can I replace this internal board myself, or does it require factory calibration?
A: Qualified technicians can perform the physical replacement on-site. The board utilizes pre-calibrated current feedback circuits, but performing a factory reset and autotune routine on the 1336 main drive controller after reassembly is recommended for optimal performance.
Q: What are the primary symptoms of a failing 2364-SPM03A signal processing board?
A: Common failure modes include intermittent overcurrent faults (F12), phase output imbalances, loss of gate drive signal errors, or the drive failing to develop output voltage despite a healthy control display.
Q: Why buy tested surplus boards instead of migrating to a modern PowerFlex drive?
A: Migrating to a newer drive platform like the PowerFlex 755 often involves redesigning panel space, replacing PLC communications (e.g., Remote I/O to EtherNet/IP), and updating control logic. Sourcing a drop-in 2364-SPM03A restores immediate operation with zero software re-engineering.
Q: What warranty coverage comes with this module?
A: We back this unit with a full 12-month operational warranty. If it experiences any functional defect or hardware failure under standard operating parameters within one year, we provide an immediate repair or replacement.
