Description
Product Introduction & Engineering Value

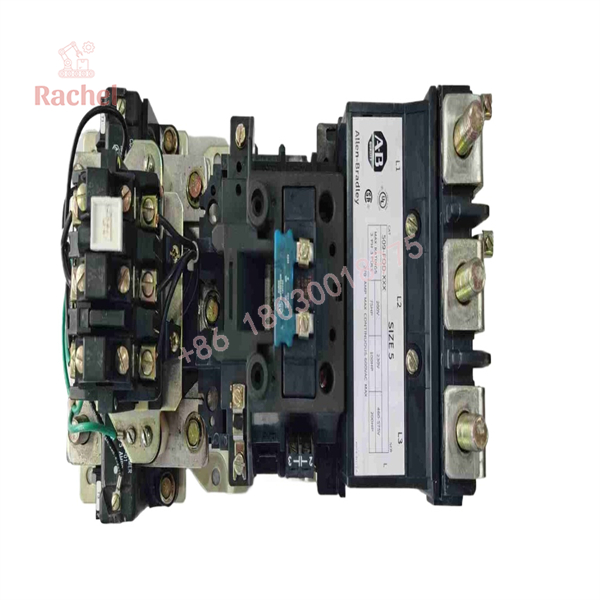

The 509-FOD-XXX belongs to Allen-Bradley’s NEMA starter family and is intended for full-voltage, non-reversing motor control. In this arrangement, the starter switches the motor directly onto the supply rather than using reduced-voltage starting or variable-frequency control.
This is fundamentally different from an electronic motor drive. The starter provides electromechanical motor switching and control; the overload protection arrangement must be verified separately. Rockwell’s description specifically states that the base unit provides a mounting provision for a field-installed overload relay.
For legacy plants, this type of starter can remain important even when the surrounding control system has been upgraded. A PLC output, pushbutton station, relay circuit, or motor-control center may still depend on the starter’s contactor and coil arrangement.
Technical Specifications
Base 509-FOD-XXX Configuration
| Specification | Details |
|---|---|
| Product family | Allen-Bradley 509 |
| Catalog number | 509-FOD-XXX |
| Starter classification | NEMA full-voltage non-reversing |
| NEMA size | 5 |
| Construction | Open |
| Starting method | Full voltage |
| Direction control | Non-reversing |
| Overload arrangement | Provision for field-installed overload relay |
| Motor application | Industrial AC motor starting |
| Enclosure | Open starter; enclosure is application-dependent |
| Lifecycle | Discontinued |
| Discontinued date | April 17, 2012 |
| Replacement category | Engineering replacement |
Rockwell’s official listing is the primary source for the product classification and lifecycle information.
Example of a Specific Suffix
The 509-FOD-XXX-17 variant is documented by Rockwell as:
- NEMA Size 5
- 115–120 V, 60 Hz
- Open type
- Provision for mounting an overload relay for field installation
- Standard warranty listed by Rockwell as one year on that specific catalog variant
Do not automatically apply the “-17” specifications to every 509-FOD-XXX unit. The suffix is part of the electrical configuration.
NEMA Size 5
NEMA Size 5 is a significant selection parameter. It identifies the starter’s contactor class and associated motor-control capacity range within the Allen-Bradley NEMA product system.
It should not be interpreted as a universal motor horsepower rating without checking:
- Motor voltage
- Motor horsepower
- Phase
- Frequency
- Application duty
- Overload selection
- Available fault current
- Starter configuration
A replacement starter must be selected against the actual motor-control application, not simply because another device is also labeled “Size 5.”
509-FOD-XXX
Field Application & “Trench” Experience
Typical Applications
The 509-FOD-XXX is suited to applications where a motor needs simple start/stop, full-voltage, non-reversing control, such as:
- Pumps
- Fans
- Blowers
- Conveyors
- Compressors
- Machine-tool auxiliary motors
- Process equipment
- Industrial material-handling equipment
Plausible Maintenance Scenario
A maintenance technician finds that a production conveyor will not start. The PLC shows a valid motor-start command, the upstream circuit protection is healthy, and the overload relay has not tripped.
The failure is eventually traced to the starter’s control circuit and contactor assembly.
Because the machine was built around a legacy NEMA starter architecture, replacing the starter with a modern IEC contactor without checking coil voltage, overload compatibility, mounting, auxiliary contacts, and control-circuit behavior creates unnecessary engineering work.
For an obsolete 509 installation, the better first question is not simply “What is the newest starter?”
It is:
“What exact electrical and mechanical configuration does the existing starter perform?”
That distinction prevents many avoidable retrofit problems.
Transparency SOP: QA & Testing
Incoming Inspection
For a New Surplus or Used 509-FOD-XXX, procurement should document the following.
1. Complete catalog number
Record every suffix after 509-FOD-XXX.
Do not purchase against the base family number if the machine documentation specifies a longer catalog number.
2. Coil identification
Verify the installed coil’s:
- Voltage
- AC/DC designation where applicable
- Frequency
- Catalog/coil identifier
A mismatched coil can make an otherwise correct starter unusable.
3. Main contact inspection
Check:
- Contact condition
- Contact wear
- Pitting
- Carbon deposits
- Mechanical movement
- Terminal condition
4. Overload arrangement
The base 509-FOD-XXX is documented with provision for field installation of an overload relay. Verify whether the machine’s overload relay is included, separate, or missing.
5. Mechanical inspection
Check the contactor mechanism, mounting hardware, terminal assemblies, barriers, and insulation surfaces.
6. Functional test
Where appropriate, test:
- Coil energization
- Contactor pickup
- Contactor dropout
- Main contact continuity
- Auxiliary contact operation
- Mechanical operation
- Overload trip function if the overload assembly is included
New Surplus Authenticity
A genuine New Surplus unit should have a traceable manufacturer identification label and should not show evidence of previous installation.
For a legacy starter, photographs should show:
- Full catalog label
- Coil marking
- Front assembly
- Side identification
- Main terminals
- Auxiliary contacts
- Overload mounting provision
- Any additional suffix or modification code
New Surplus does not automatically mean current OEM production. Rockwell lists the base 509-FOD-XXX as discontinued, so a unit described as New Surplus should be understood as unused legacy inventory unless the supplier establishes a different status.
Veteran’s Tech Trap Guide
⚠️ Trap #1 — Don’t buy only by “509-FOD-XXX”
This is the biggest procurement issue.
The 509-FOD-XXX designation represents a configuration family. Rockwell records demonstrate that extended versions exist, including 509-FOD-XXX-17, while distributor listings also show other suffix configurations.
PRO TIP: Put the complete catalog number from the existing starter’s nameplate on the purchase order.
⚠️ Trap #2 — The overload relay may not be included
Rockwell’s base description specifically says the starter has provision for mounting an overload relay for field installation.
Do not assume that a replacement 509-FOD-XXX automatically includes the motor overload device.
⚠️ Trap #3 — Don’t confuse a starter with a VFD
The 509-FOD-XXX is a full-voltage non-reversing starter. It is not a variable-frequency drive, soft starter, servo drive, or electronic motor controller.
Replacing it with a VFD changes the motor-control architecture and may require changes to:
- PLC logic
- Safety circuits
- Motor protection
- Control wiring
- EMC considerations
- Start/stop behavior
- Fault handling
That is an engineering project, not a like-for-like component substitution.
⚠️ Trap #4 — Lifecycle status is already a procurement concern
Rockwell’s official page identifies the 509-FOD-XXX as discontinued, with a discontinuation date of April 17, 2012, and a replacement category of Engineering Replacement.
For a plant still using this starter family, maintaining a controlled spare-stock quantity can be more practical than waiting for an emergency sourcing event.
Dynamic FAQ
What is Allen-Bradley 509-FOD-XXX?
It is an Allen-Bradley NEMA Size 5 full-voltage non-reversing motor starter. The base configuration is open type and provides for field installation of an overload relay.
Is 509-FOD-XXX a contactor?
It is a motor starter assembly, not merely a generic contactor. Its application is full-voltage motor starting, and the configuration includes provision for overload protection.
What does NEMA Size 5 mean?
NEMA Size 5 identifies the starter’s NEMA contactor size. Actual motor suitability still depends on motor voltage, horsepower, phase, duty, overload selection, and the complete starter configuration.
What voltage does 509-FOD-XXX use?
There is no single control voltage that should be assumed from the base 509-FOD-XXX number alone. Extended catalog numbers define specific configurations. For example, Rockwell documents 509-FOD-XXX-17 with a 115–120 V, 60 Hz configuration.
Is 509-FOD-XXX discontinued?
Yes. Rockwell Automation’s official product record lists 509-FOD-XXX as discontinued, with a discontinuation date of April 17, 2012, and an engineering-replacement classification.
Can I use another 509-FOD-XXX suffix as a replacement?
Not without checking the complete configuration. Different suffixes can represent different coil, voltage, or other options. The exact catalog number and nameplate should be matched before installation.
Does the starter include an overload relay?
The base Rockwell description states that it has provision for mounting an overload relay for field installation. Therefore, the presence of an overload relay must be verified separately for the actual unit being purchased.
What should I request for a New Surplus unit?
Request photographs and confirmation of:
- Complete catalog number
- Coil voltage/frequency
- NEMA Size
- Main contact condition
- Overload relay inclusion
- Auxiliary contact configuration
- Packaging/label condition
- Functional test status
- Warranty terms
What warranty should procurement expect?
Warranty depends on the supplier and exact inventory condition. Rockwell’s current web record for the specific 509-FOD-XXX-17 variant lists a one-year standard warranty, but that should not be assumed to apply to third-party New Surplus inventory or every 509-FOD-XXX suffix.
Procurement identification: Allen-Bradley 509-FOD-XXX — NEMA Size 5 Full-Voltage Non-Reversing Starter, Open Type, with provision for field-installed overload relay.
For an exact replacement, specify the complete suffix, because 509-FOD-XXX alone does not define the complete electrical configuration.
