Product Introduction & Engineering Value
It is one of the smallest components in a CompactLogix cabinet, yet forgetting it can prevent an entire I/O bank from operating correctly. During troubleshooting, engineers sometimes focus on processors, power supplies, or communication modules while overlooking the missing end cap at the end of the backplane.
The Allen-Bradley 1769-ECR provides electrical termination for the Compact I/O bus. Although it contains no programmable logic or field wiring, it is an essential hardware component for maintaining system integrity in CompactLogix and Compact I/O installations.
Technical Specifications
Manufacturer: Allen-Bradley / Rockwell Automation
Catalog Number: 1769-ECR
Product Family: Compact I/O (1769 Series)
Module Type: Right End Cap / Terminator
Installation Location: Right end of the local I/O bank
Current Draw: 5 mA @ 5.1V DC
24V DC Current Draw: 0 mA
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Approximate Weight: 130 g (0.286 lb)
Mounting: Installs directly onto the right side of the Compact I/O assembly
Enclosure Rating: Open-style component
Typical Applications: CompactLogix and 1769 Compact I/O systems without a right-side expansion cable.
Field Application & The “Trench” Experience
During the startup of a pharmaceutical packaging line, the engineering team replaced several failed digital I/O modules after a scheduled shutdown. The processor powered up normally, but every module beyond the final output card remained offline.
The issue was not firmware or wiring. The original 1769-ECR had been removed during maintenance and never reinstalled. Once the right end cap was fitted correctly, the Compact I/O bank initialized immediately, allowing commissioning to continue without replacing any additional hardware.
Typical applications include:
- High-speed bottle filling machines using CompactLogix local I/O assemblies.
- Automated conveyor sortation systems with multiple 1769 expansion modules.
- Batch reactor control panels where Compact I/O modules are mounted in a single local bank.
Transparency SOP: QA & Testing
Before shipment, each 1769-ECR accessory is inspected using the following procedure:
- Verify the catalog number and manufacturer markings.
- Inspect the locking tabs and backplane connector for wear or damage.
- Confirm proper mechanical engagement with a 1769 I/O assembly.
- Check the housing for cracks, deformation, or contamination.
- Document inspection results and identify the inventory condition as New Surplus or Refurbished.
Although the 1769-ECR is a passive accessory, physical integrity is critical because damaged locking mechanisms or connector interfaces can compromise the stability of the I/O assembly.

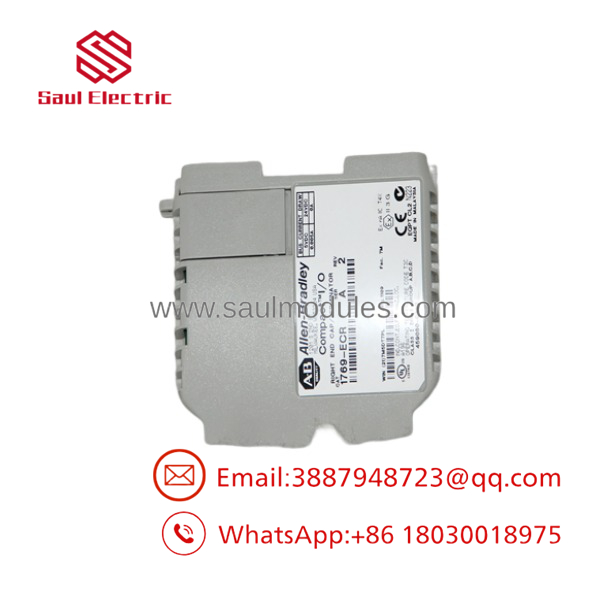

- 1769-ECR
The Veteran’s Tech Trap Guide
⚠️ Don’t Treat It Like a Plastic Cover
The 1769-ECR is not simply a dust cap. It terminates the Compact I/O backplane and is required for proper operation of the I/O bank.
⚠️ Inspect the Locking Tabs Carefully
A cracked retaining clip may allow slight movement during machine vibration, creating intermittent communication faults that are difficult to reproduce.
PRO TIP: Before ordering a replacement, verify whether your CompactLogix controller already includes a factory-installed right end cap. Some controller packages are shipped with one, eliminating the need to purchase an additional unit.
Dynamic FAQ
Q1. What is the purpose of the 1769-ECR?
The 1769-ECR terminates the right end of a 1769 Compact I/O bank, completing the backplane connection required for normal system operation.
Q2. Does the 1769-ECR require configuration in Studio 5000?
No. It is a passive hardware accessory and requires no software configuration or programming.
Q3. Can a CompactLogix system operate without a 1769-ECR?
No. If the right side of the I/O bank is not connected to an expansion cable, the proper right end cap must be installed to terminate the bus correctly.
Q4. Is the 1769-ECR compatible with all 1769 Compact I/O modules?
Yes. It is designed for use with the 1769 Compact I/O family wherever a right-side terminator is required.
Q5. How is New Surplus inventory verified?
Each unit is inspected for the correct catalog number, connector condition, mechanical locking features, and overall physical integrity before shipment.
Q6. Is the 1769-ECR still available?
Yes. Rockwell Automation currently lists the 1769-ECR as an Active Mature product, making it available for ongoing maintenance and expansion of existing Compact I/O systems.
