AMAT 0090-76110 VME Controller Module

Description

Product Introduction

The Applied Materials 0090-76110 is a specialized 6U VMEbus controller and communication circuit board engineered specifically for AMAT semiconductor manufacturing platforms, including Centura, Endura, and Precision 5000 systems. Operating inside the main tool electronics rack, this module handles critical low-latency logic transactions, system state polling, and peripheral subsystem communication across the central VME backplane.

Unlike standard off-the-shelf industrial VME cards, the 0090-76110 features customized timing logic and proprietary address decoding designed specifically for AMAT tool controller architectures. Replacing a failing or intermittent VME card with an exact-match OEM unit resolves system bus fault locks, unhandled communication timeouts, and chamber initialization errors during automated wafer processing.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

When a VMEbus controller drops a single address bit during a high-vacuum chamber process cycle, the entire tool software drops into an unrecoverable system bus fault. A dead 0090-76110 board will instantly halt wafer handling robotics mid-transfer, leaving high-value substrates trapped inside processing chambers. In our field experience, age-related thermal stress on vintage IC sockets or oxidized backplane connector pins are the leading causes behind random bus timeout trips on legacy fab equipment.

• Wafer Fabrication & Processing – AMAT Endura & Centura Platforms – Manages real-time data flow between the central tool controller and chamber I/O boards.
• Thin Film & Etch Systems – Chamber Interlock Control – Maintains sub-millisecond status polling across gas delivery, RF generator, and vacuum interlocks.
• Legacy Fab Life Extension – 200mm / 300mm Production Lines – Keeps essential legacy semiconductor manufacturing tools running without requiring multi-million-dollar platform upgrades.

Field Case Study

A semiconductor fab experienced intermittent “VME Bus Timeout” alarms on a 200mm Centura etch tool, halting production multiple times per shift. The site engineer ruled out software corruption and isolated the fault to the primary 0090-76110 VME board inside the card cage. After pulling the degraded card and installing a pre-tested surplus 0090-76110 replacement board, the tool cleared its hardware diagnostics, initialized all internal bus nodes cleanly, and resumed full 24/7 production within two hours.

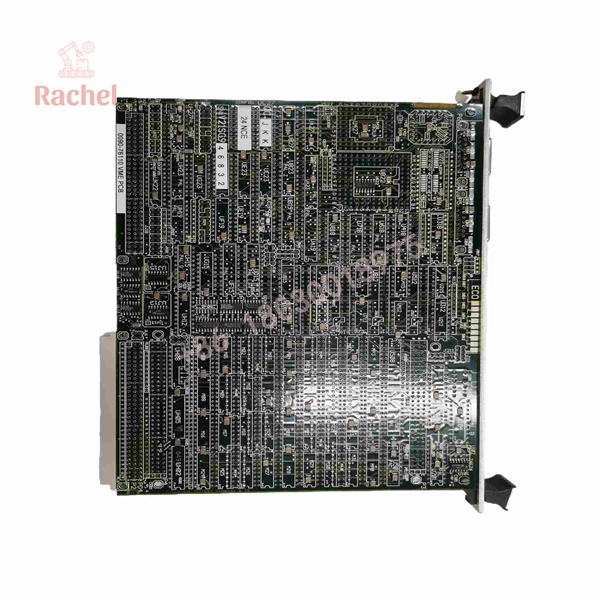

0090-76110

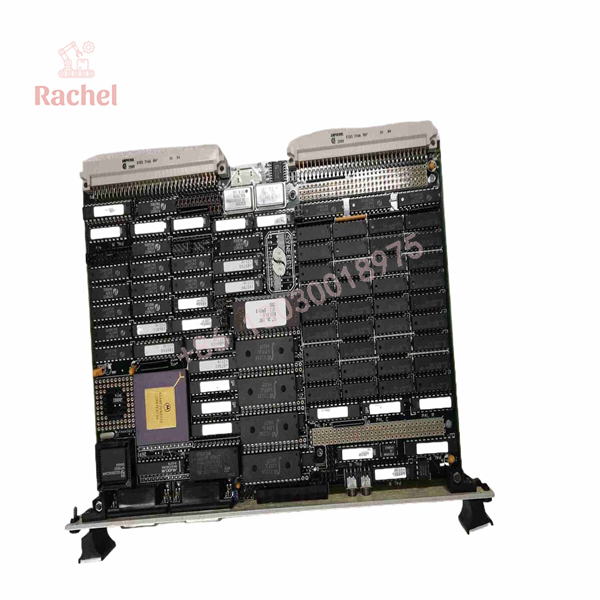

0090-76110

Transparency SOP: Quality Assurance & Testing

We don’t ship untested surplus circuit boards. Every 0090-76110 unit undergoes a thorough bench validation process before inventory entry:

1. Inbound Visual & Pin Inspection: Microscopic audit of trace paths, checking for lifted pads, damaged solder joints, and verifying 96-pin DIN backplane connectors are straight and un-oxidized.
2. Static Power Rail Audit: Applying benchmark +5V and ±12V DC power to check for short circuits across internal power plane capacitors before loading the logic chips.
3. VMEbus Handshake Simulation: Seating the board into a live VMEbus test chassis to verify active address decoding, interrupts, and data bus line switching under load.
4. Thermal Stability Monitoring: Running extended bus read/write cycles under thermal monitoring to ensure zero intermittent solder joint opens or thermal drift faults.
5. Anti-Static & Moisture Shielding: Vacuum-sealed inside ESD-shielding bags with desiccant packets and packed in custom foam-lined boxes for safe transport.

The Veteran’s Tech Trap Guide

• ⚠️ Verify Board Revisions and Jumper Blocks: AMAT boards often feature subtle hardware revision numbers and configurable jumper headers (e.g., base address or interrupt level settings). Always photograph your original board’s jumper configuration and mirror it exactly on the replacement card before installation.
• ❗ Power Down the VME Rack Completely: Never hot-swap this card. Inserting or pulling a 6U VME board while the backplane is energized will generate voltage transients across P1/P2 pins, instantly frying sensitive onboard PALs and bus transceivers.
• ⚠️ Clean the Card Cage Backplane Socket: Dust and ambient particulate in older fab electronics bays can accumulate inside the female DIN backplane connectors. Spray the backplane socket with zero-residue electronic contact cleaner before seating the replacement card.
• ❗ Strict ESD Protocols Required: Always wear a grounded wrist strap when handling this raw PCB assembly. Electrostatic discharge can degrade high-speed logic ICs without leaving any visible signs of damage.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the AMAT 0090-76110 board hot-swappable during tool operation?

A: No. Attempting to pull or insert the 0090-76110 card while the VME chassis is powered will arc connector pins and permanently damage onboard logic circuitry. Always power down the main tool rack first.

Q: Does this board require onboard firmware flashing prior to installation?

A: Generally, no. The 0090-76110 operates as a VME interface controller that executes hardware routing and address decoding. As long as onboard DIP switches and jumpers match your original card, it interfaces directly with the host system software.

Q: Why purchase New Surplus or Refurbished AMAT stock over direct OEM orders?

A: Applied Materials has discontinued many legacy 0090 series VME boards, leading to long lead times or non-availability. Pre-tested surplus stock provides immediate availability at a fraction of the cost, keeping critical production lines running.

Q: How do you verify the board’s backplane logic isn’t degraded?

A: Every 0090-76110 unit in our inventory passes physical connector audits, static power rail tests, and dynamic VMEbus signal handshakes on dedicated test racks.

Q: What warranty coverage comes with this replacement board?

A: All our new surplus and reconditioned Applied Materials components come backed by a full 12-month warranty covering operational performance and functional defects.
