AMAT 0100-71278 VME Communication Board

Description

Product Introduction

The Applied Materials 0100-71278 is a specialized VME communication interface module designed for legacy AMAT/AKT semiconductor processing tool architectures. Installed directly into standard VMEbus backplanes, this assembly handles high-speed control signal exchange and protocol translation between centralized tool host controllers and peripheral sensor or actuator sub-racks.

Unlike standard off-the-shelf VME cards, the 0100-71278 incorporates custom onboard PMC expansion headers to support high-throughput, low-latency processing tasks critical for semiconductor wafer chambers. By offloading bus arbitration and local I/O handling from the primary CPU, it eliminates throughput bottlenecks in real-time wafer handling, vacuum chamber interlocks, and deposition control loops.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Few things wreck a shift like a bus arbitration fault on an etch or CVD tool mid-process. When an old VME board degrades—often from years of thermomechanical fatigue in high-temperature cleanroom electronics cabinets—the host controller drops comms, aborts the recipe, and scraps a wafer batch worth thousands. Getting the chamber back online requires dropped-in, exact-match hardware, not a redesign that forces a tool software re-qualification.

• Semiconductor – Chemical Vapor Deposition (CVD): Interfaces sub-system controllers managing gas box flow switches and RF generators over VME sub-networks.
• Semiconductor – Dry Etch Systems: Handles real-time telemetry from pressure and temperature sensors requiring deterministic PMC-card hardware routing.
• Flat Panel Display – AKT Processing Racks: Serves as a legacy communication bridge between main automation controllers and substrate transport drives.

During a 2:00 AM emergency call at an older 200mm fabrication facility, a tool threw continuous SYSFAIL alarms, halting an entire RF sputtering chamber. Diagnostic logs singled out dead backplane communication on the main rack. Replacing the degraded 0100-71278 interface board with an exact Rev 01 unit restored bus handshake signals immediately, bringing the tool back online in under 45 minutes without requiring software reconfiguration.

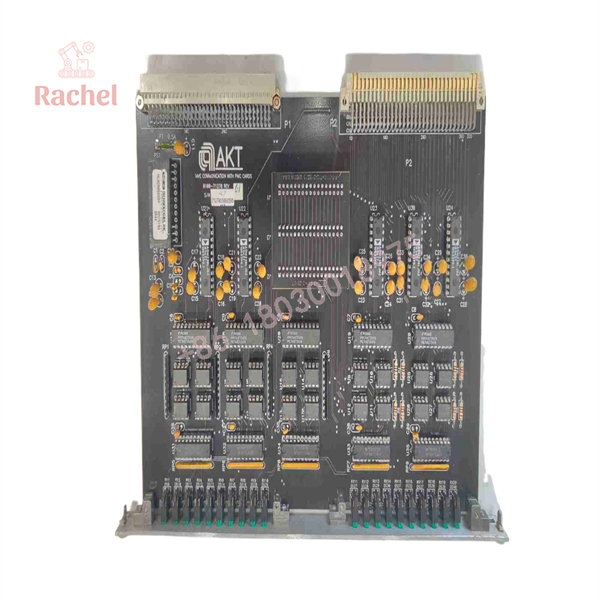

0100-71278

0100-71278

Transparency SOP: Quality Assurance & Testing

We do not just box up surplus cards and ship them out. Every Applied Materials 0100-71278 passes through our bench test protocol before delivery:

• Inbound Inspection: Multi-point visual check under magnification to verify trace integrity, check for thermal stress marks, and validate genuine OEM solder profiles.
• Bus Interconnect Validation: Inspection of all VME P1/P2 gold fingers and PMC socket pins for corrosion, oxidation, or bent contacts.
• Live Rig Powered Self-Test: Card insertion into a powered 6U VMEbus test chassis to verify power rail draws and onboard clock operation.
• Communication Handshake: Functional loopback and PMC expansion signaling checks to ensure bus arbitration operates without timing errors.
• Static Handling & ESD Packaging: Final cleaning with isopropyl contact cleaner, application of pin guards, and sealed packaging in conductive ESD shielding bags.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Watch Out for PMC Alignment Pins: When swapping or installing PMC daughter cards onto the 0100-71278, ensure the mechanical standoff pins align completely straight. Forcing a mezzanine card down into the board header at an angle will bend micro-pins inside the connector.

❗ Check Board Jumper/DIP Configurations: Take a clear photograph of the jumper blocks on your failed card before pulling it out. AMAT modified system bus addressing on these boards via physical hardware jumpers depending on which rack slot the module inhabited. If you drop in the replacement with factory default jumper settings, the host controller will not enumerate the slot.

⚠️ ESD Warning: Semiconductor control components are notoriously sensitive to electrostatic discharge. Always ground yourself with a bonded wrist strap before handling this board. Touching the exposed trace contacts or PMC connectors unprotected can destroy onboard logic gates instantly.

Frequently Asked Questions

Q: Can I hot-swap the 0100-71278 while the VME chassis is powered on?

A: No. Standard VMEbus architectures do not support live hot-swapping. Pulling or inserting this card while the backplane is energized will generate voltage spikes, likely destroying the board and frying adjacent modules on the rack. Power down the entire rack prior to replacement.

Q: Does this unit include the onboard PMC cards?

A: The base 0100-71278 motherboard is supplied standalone unless specifically ordered as a bundle assembly. Verify whether your fault is on the base VME interface board or the attached PMC mezzanine module before ordering.

Q: Why purchase New Surplus rather than ordering direct from the OEM?

A: Applied Materials routinely end-of-life (EOL) older hardware platforms, making lead times long or direct factory ordering unavailable. New surplus units provide identical OEM hardware at lower cost with immediate dispatch, avoiding weeks of downtime.

Q: Are revision levels critical when ordering a replacement 0100-71278?

A: Yes. Hardware revisions (such as Rev 01) can include timing updates or modified trace layouts. Match the revision level on your original PCB barcode sticker to ensure seamless host integration.

Q: What warranty coverage comes with this module?

A: All our surplus and tested replacement modules include a full 12-month functional warranty from the date of delivery.
