Product Introduction & Engineering Value
The 0100-71309 is a legacy AMAT/AKT control assembly where the exact board identity matters. Current market evidence shows the part specifically labeled MF PRIMARY DISTRIBUTION, with Rev. 01 and Rev. 02 units appearing in the secondary market.
That is a stronger identification than generic listings describing it as an “industrial I/O module.” For a replacement, match the complete part number, revision, connector arrangement, and host-tool configuration. Do not assume that a similarly sized AMAT control PCB is electrically equivalent.
Technical Specifications
| Specification | 0100-71309 |
|---|---|
| Manufacturer | Applied Materials |
| OEM Family | AMAT / AKT |
| Part Number | 0100-71309 |
| Primary Description | MF Primary Distribution PCA |
| Assembly Type | Printed circuit board assembly |
| System Role | Primary distribution / control interface |
| Known Revision | Rev. 01 |
| Additional Revision | Rev. 02 |
| Associated Equipment | AKT semiconductor equipment |
| Reported Weight | 4.3 kg* |
| Reported Dimensions | 263 × 58 × 28 mm* |
| Exact Supply Voltage | Not reliably established from public documentation |
| Exact I/O Count | Not reliably established |
| Exact Connector Pinout | Tool/revision dependent; verify before installation |
| Exact Electrical Ratings | Must be confirmed from AMAT documentation |
*The weight and dimensions are supplier-reported values and should not be treated as verified OEM mechanical specifications.
Revision Evidence
The revision issue is significant with this part.
A current marketplace listing identifies an actual unit as:
AMAT Applied Materials AKT MF PRIMARY DISTRIBUTION 0100-71309 REV 01
and states that the unit is used and has a damaged socket.
Other current market records explicitly reference Rev. 02.
That means the purchase specification should include the revision whenever possible.
Specification caution
Some reseller pages publish highly specific claims that characterize 0100-71309 as a multi-channel digital I/O module with 24 VDC operation, Modbus, Profibus, RS-232, RS-485, and other industrial interfaces. Those claims are not sufficiently corroborated by the stronger part-number evidence.
For an engineering-grade listing, I would not present those figures as OEM specifications.
The better-supported identification is:
0100-71309 → AMAT/AKT → MF Primary Distribution PCA.

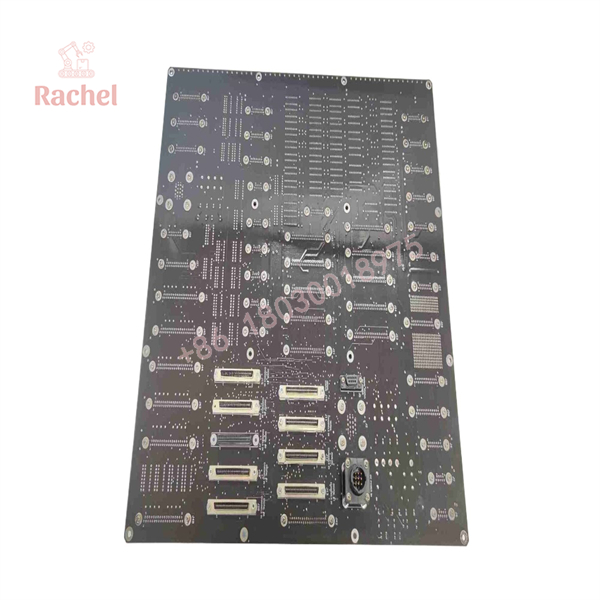

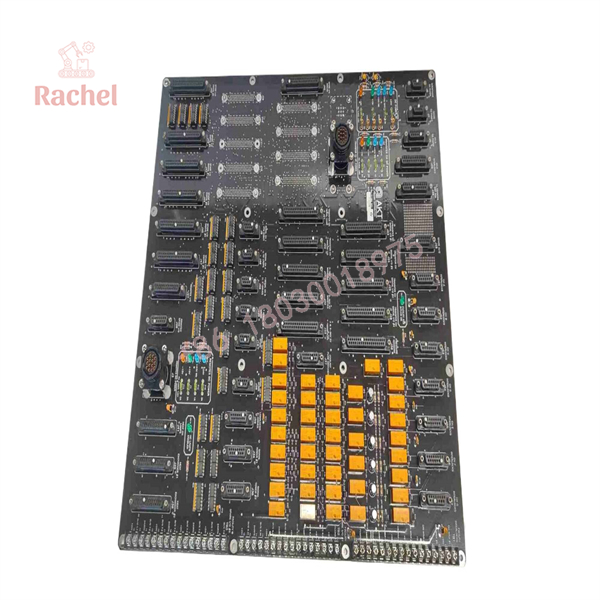

0100-71309
0100-71309
Field Application & the “Trench” Experience
A legacy AKT tool develops intermittent subsystem faults. Several downstream devices report communication or power-distribution anomalies at the same time, making individual field devices look suspicious.
The maintenance technician starts with the obvious suspects: cables, sensors, and local controllers.
Nothing explains all of the symptoms.
The common point turns out to be the MF primary distribution assembly. The installed board is marked 0100-71309 Rev. 01. A spare is available, but before installation the technician checks the revision and physical connector arrangement.
The replacement is installed, and the technician then verifies the affected subsystem one interface at a time rather than declaring victory after the board powers up.
That is the right approach with legacy semiconductor equipment: when multiple apparently unrelated functions fail together, investigate the common distribution/control layer first.
Specific Application Scenarios
- AKT MF subsystem distribution — maintaining the primary control/distribution path within compatible AKT equipment.
- Legacy semiconductor equipment recovery — restoring an aging tool without redesigning its original control architecture.
- Revision-controlled spare inventory — stocking Rev. 01 or Rev. 02 according to the installed equipment configuration.
- Intermittent common-point fault isolation — investigating multiple downstream abnormalities that share a common distribution assembly.
Transparency SOP: QA & Testing
For 0100-71309, a proper acceptance test should focus on the complete board assembly rather than a simple continuity check.
1. Identity inspection
Verify:
0100-71309- AMAT / Applied Materials marking
- AKT identification where present
- Revision number
- Serial/barcode label
- Connector configuration
2. Mechanical inspection
Inspect the PCB and assembly for damaged sockets, connectors, cracked solder joints, corrosion, contamination, and evidence of previous repair.
This is especially important because an actual Rev. 01 unit currently listed on the secondary market is explicitly described as having a damaged socket.
3. Electrical inspection
Check for shorts between supply and ground, abnormal resistance on major power rails, damaged components, and evidence of overheating before applying power.
4. Controlled power-up
Power the board through the appropriate AMAT test fixture or compatible equipment chassis. Monitor startup current and board behavior.
5. Interface verification
Verify the board’s connected distribution/control paths using the applicable AMAT service procedure.
6. Revision/configuration verification
Confirm that the replacement revision is approved for the target machine configuration.
7. Extended operational test
Run the assembly through repeated startup and operating cycles where possible. Intermittent distribution faults may not appear during a five-minute bench test.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Buying “0100-71309” without specifying the revision
Rev. 01 and Rev. 02 are both visible in current market records.
PRO TIP: If the installed board says 0100-71309 Rev. 01, put Rev. 01 directly on the RFQ.
Do not let the supplier silently substitute Rev. 02.
⚠️ Trap #2 — Confusing the part with a generic AMAT I/O card
Some sellers describe it as an Industrial I/O Module or Main Control Board.
The more specific market identification is MF PRIMARY DISTRIBUTION PCA.
That distinction matters because an I/O card with the same general form factor does not establish functional equivalence.
⚠️ Trap #3 — Ignoring physical socket condition
A real Rev. 01 listing currently carries a damaged-socket warning.
Ask for detailed photographs of every connector and socket before buying used stock.
⚠️ Trap #4 — Treating a power-on test as a functional test
A distribution board can power up normally and still have an intermittent connection, damaged interface, or degraded circuit.
PRO TIP: Require a test report that identifies exactly what was energized and which downstream functions were verified.
Dynamic FAQ
What is AMAT 0100-71309?
The strongest available part-level evidence identifies it as an Applied Materials / AKT MF Primary Distribution PCA.
Is 0100-71309 an I/O module?
Some secondary-market sellers describe it as an industrial I/O or control module, but that terminology is less precise. Current actual-unit listings identify it as MF PRIMARY DISTRIBUTION.
What revisions exist?
At least Rev. 01 and Rev. 02 are documented in current secondary-market records.
What equipment uses 0100-71309?
The part is specifically associated with Applied Materials AKT equipment in current listings, including listings identifying it as an AKT MF Primary Distribution PCA.
Is New Surplus 0100-71309 available?
Yes. Current suppliers advertise new/original stock, while actual marketplace listings also show used Rev. 01 and Rev. 02 units.
However, “brand new” in a reseller listing is not sufficient evidence of New Surplus/NOS status.
How do I verify New Surplus authenticity?
Request photographs of the actual 0100-71309 assembly, including the AMAT label, complete part number, revision, serial/barcode label, PCB markings, connectors, and original packaging. Have the supplier explicitly classify it as New OEM, New Surplus/NOS, Refurbished, or Used-Tested.
What warranty should I request?
One supplier currently advertises a one-year warranty for 0100-71309, while another current listing is for used stock.
For production use, specify that the warranty covers functional failure after installation, not merely DOA condition. Also require the seller to disclose whether the board was actually tested in compatible AMAT/AKT equipment.
