The Applied Materials 0190-37684 is a high-reliability printed circuit board assembly engineered for AMAT 300mm wafer processing systems. Mounted within the tool’s core signal distribution rack, this board serves as a vital communications bridge connecting the host system controller to critical process hardware, including mass flow controllers, vacuum throttle valves, and thermal sensors.
Built specifically to withstand the harsh electromagnetic conditions of advanced fab environments, the 0190-37684 features heavy onboard noise suppression to isolate delicate logic signals from high-power RF plasma noise. Replacing a degraded or faulted 0190-37684 card restores stable data telemetry across your process chamber, eliminating phantom interlock faults and locking in process repeatability.
Key Technical Specifications
| Parameter | Value |
| Part Number | 0190-37684 / 019037684 |
| OEM Manufacturer | Applied Materials (AMAT) |
| Form Factor | Rack-Mount Card / Slide-In PCBA Module |
| Platform Compatibility | AMAT Producer, Endura, Centura 300mm Systems |
| Primary Function | System I/O Telemetry & Subsystem Signal Interfacing |
| Power Inputs | Backplane bus powered (+5V DC / ±12V DC / +24V DC logic rails) |
| Signal Handling | Optically isolated digital inputs/outputs & high-precision analog channels |
| Operating Temp Range | 10°C to 55°C (Cleanroom environment) |
| Cleanroom Grade | Class 10 / Class 100 HEPA Compatible |
Application Scenarios & The “Trench” Experience
It’s 3:00 AM on a high-volume 300mm etch line. Chamber 1 suddenly trips a non-recoverable “MFC Communication Timeout” interlock mid-process, dropping a $30,000 wafer lot into a held state. After swapping out the mass flow controller and checking the cable runs, you find the real culprit: an optocoupler breakdown on the 0190-37684 card inside the card cage. Having a qualified 0190-37684 replacement board sitting on your maintenance shelf drops your mean-time-to-repair (MTTR) from 3 days down to 20 minutes, getting the chamber back online before the morning production review.
Typical Applications:
- 300mm Chemical Vapor Deposition (CVD) – Synchronizes rapid valve timing and precursor injection loops to prevent pressure transients during deposition.
- Plasma Etch Mainframes – Routes real-time chamber pressure and RF matchwork status signals to the central controller without signal degradation.
- Physical Vapor Deposition (PVD) – Coordinates vacuum isolation interlocks, substrate temperature monitoring, and target power status.

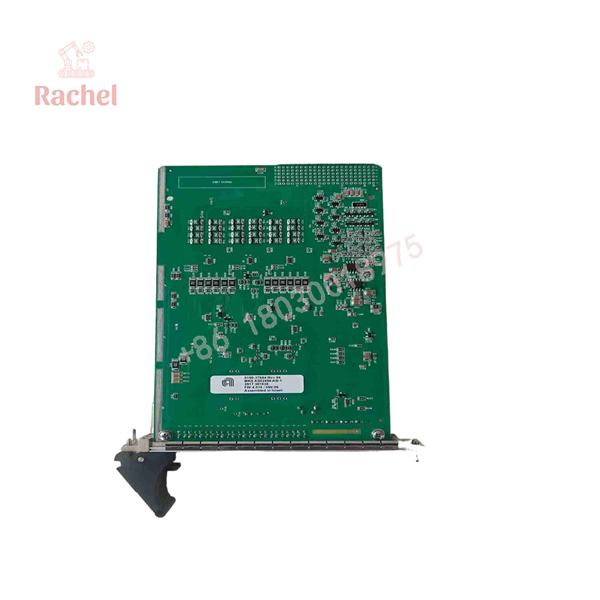

0190-37684

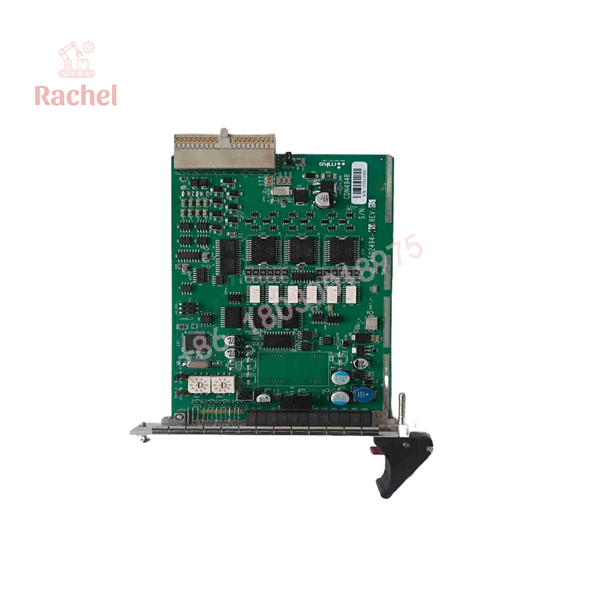

0190-37684
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual AMAT-compatible rack backplanes. Every surplus or reconditioned 0190-37684 board goes through our strict 5-stage SOP:
- Inbound Visual & Structural Audit: High-magnification microscopic inspection for trace micro-cracks, damaged edge connector gold fingers, or heat-stressed surface components.
- Backplane Power-On Diagnostics: Insertion into a live test cage to verify voltage rail stability, internal clock signals, and boot-up LED sequences.
- Signal & Channel Validation: Full oscilloscope and logic analyzer sweeps of all digital and analog I/O lines to confirm zero crosstalk or signal attenuation.
- Thermal Stability Load Test: Extended burn-in cycle inside an environmental test chamber to force out potential latent silicon defects.
- ESD-Safe Cleanroom Packaging: Decontaminated in a HEPA cleanroom environment, double-wrapped in static-shielding ESD bags, and packed with desiccant.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Power Down the Card Cage Before Swap: Never pull or insert the 0190-37684 while the backplane is live. Hot-swapping will arc high-density connector pins, instantly damaging onboard input multiplexers and potentially corrupting the main rack power supply.
❗ Verify Hardware Jumpers & Address Switches: Before sliding the new 0190-37684 card into the rack slot, compare its DIP switches and jumper blocks against the board you just pulled. A single misaligned jumper will alter the board’s slot address or signal gain settings, causing immediate hardware mismatch errors on system boot. Take a quick photo of the old card before benching it.
⚠️ Use Card Ejector Levers Correctly: Do not pull on components, heat sinks, or wire harnesses to remove the card. Always engage the built-in top and bottom ejector levers simultaneously to disengage the backplane socket evenly without bending or stress-fracturing the multilayer PCB.
Frequently Asked Questions (FAQ)
Q: Is the AMAT 0190-37684 card hot-swappable?
A: No. Absolutely not. Pulling or inserting this module into an active card cage will damage the board edge connectors and risk corrupting serial communications across adjacent cards. Always shut down system rack power first.
Q: Does this PCBA require custom software flashing prior to installation?
A: No. The 0190-37684 operates as a hardware-level signal interface. System configurations and operational parameters are dynamically pushed to the card from the tool host software during the normal boot sequence.
Q: Can I use this board in legacy 200mm Centura mainframes?
A: No. The connector pinout and bus architecture of the 0190-37684 are designed specifically for 300mm platform card cages. Always verify your tool’s bill-of-materials (BOM) before ordering.
Q: What is the warranty coverage on this card?
A: We provide a full 12-month operational warranty. If the 0190-37684 fails bench diagnostics or drops a channel within 365 days of purchase, we replace it or issue a full refund—no hassles.
Q: Why buy surplus replacement boards over ordering directly from Applied Materials?
A: OEM lead times for specialized 300mm control board assemblies can range from several weeks to months. Sourcing pre-tested surplus original components gets your tool back into production within days at a fraction of the OEM catalog price.
