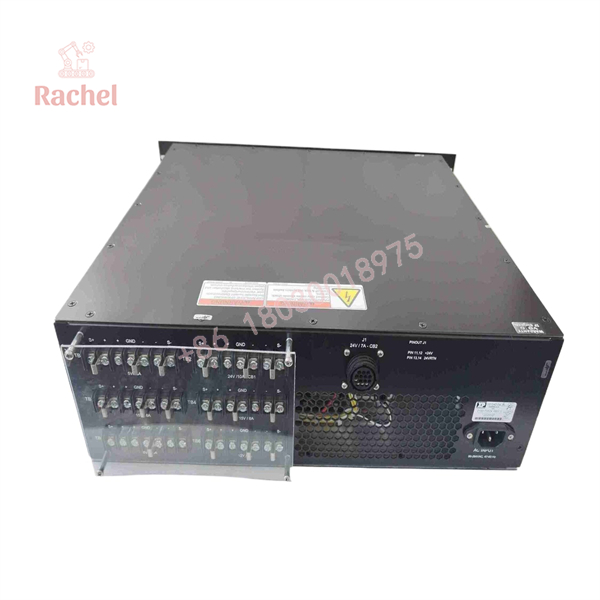

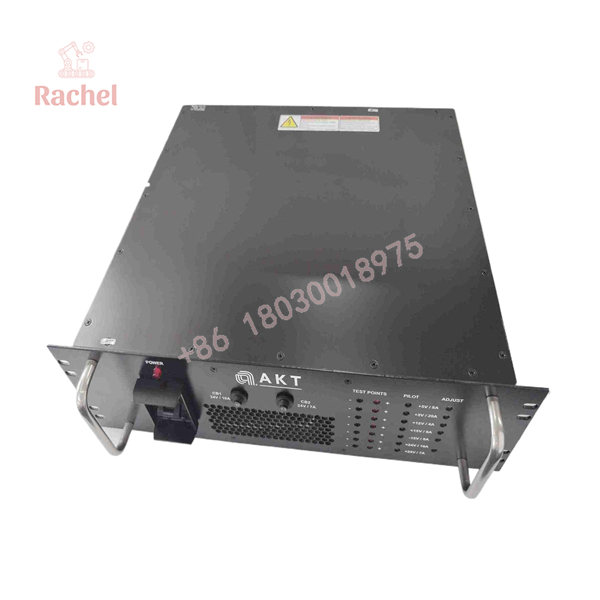

AMAT 0190-73524 AKT XP Power 101540-04 UPS

Description

Product Introduction

The AMAT 0190-73524 is a specialized power-system spare associated with AKT semiconductor equipment. Available inventory records identify it as an XP Power 101540-04 UPS, with Rev. 3 specifically documented. This makes the AMAT number more useful for procurement than relying on a generic description such as “power supply.”

For maintenance teams, the important point is compatibility. A replacement must match the Applied Materials/AKT part number, XP Power model, revision, connectors, mechanical configuration, and equipment configuration. A visually similar industrial UPS is not automatically an acceptable substitute.



Technical Specifications

Because no reliable OEM datasheet for the exact 0190-73524 / 101540-04 combination was located, unsupported electrical ratings should not be published as confirmed specifications.

Specification	Status
AMAT P/N	0190-73524
XP Power Model	101540-04
Revision	Rev. 3 documented
Equipment Brand	AKT / Applied Materials
Component Category	UPS / power-support equipment
Input Voltage	Verify from nameplate/OEM documentation
Output Voltage	Verify from nameplate/OEM documentation
Output Power / VA	Verify from nameplate/OEM documentation
Battery Configuration	Verify before replacement
Alarm / Interface Signals	Verify from unit documentation
Physical Dimensions	Verify against actual unit
Connector Configuration	Must be matched before installation

This conservative specification approach is intentional. One reseller currently claims that 0190-73524 is a servo drive, while another describes it as a high-power sputtering supply; neither description is supported by the stronger repeated XP Power 101540-04 UPS records.



What the 0190-73524 Does in an AKT Tool

A UPS within semiconductor equipment is generally used to maintain or protect selected electrical loads during power disturbances. The exact loads supported by 0190-73524 should be confirmed from the applicable AKT equipment schematic rather than assumed.

From a maintenance perspective, the unit can affect:

• Control-system power continuity
• Equipment shutdown behavior
• Protection of sensitive electronics
• Recovery after utility interruptions
• Power-fault alarm conditions
• Controlled transition between normal and backup power

The distinction between a UPS assembly and a conventional DC power supply matters. Substituting a standard power supply without verifying the required backup, transfer, alarm, and battery functions can create a secondary equipment fault even if the nominal output voltage appears correct.



Field Application and Maintenance Experience

A common troubleshooting mistake is to condemn the UPS immediately when the equipment reports a power-related fault.

A better sequence is:

1. Verify incoming facility power.
2. Check upstream breakers and disconnects.
3. Inspect the UPS status indicators.
4. Check whether the fault occurs on normal power, transfer, or restart.
5. Verify downstream load behavior.
6. Inspect connectors and harnesses.
7. Check battery condition if the specific assembly uses an accessible battery system.
8. Compare the installed unit’s AMAT P/N and revision with the spare.
9. Only then substitute the 0190-73524 assembly.

If the equipment runs normally on utility power but fails during a controlled power interruption, the diagnostic direction is very different from a unit that will not energize at all.

⚠️ Veteran’s Tech Trap Guide

Trap 1: Treating 0190-73524 as a Generic Servo Drive

Several low-quality reseller pages label the part as a “servo driver.” That description is not consistent with the stronger exact-part records identifying AKT XP Power 101540-04 UPS.

Procurement rule: search using the complete combination:

AMAT 0190-73524 + AKT + XP Power 101540-04 + Rev. 3

Do not search by “0190-73524 power module” alone.

Trap 2: Ignoring Revision

Current secondary-market records specifically identify Rev. 3 units.

A different revision may have:

• Different components
• Different firmware or control behavior
• Different connectors
• Different compatibility
• Different service history

Revision should therefore be part of the incoming inspection record.

Trap 3: Assuming Electrical Ratings

Do not copy voltage, current, VA, battery, or transfer-time specifications from another XP Power product.

The 101540-04 model identification is supported, but a reliable primary-source datasheet establishing the complete electrical specification for this exact AMAT configuration was not found.

Trap 4: Buying a “New” Unit Without Verifying Provenance

For semiconductor equipment spares, “new” can mean several different things:

• Factory new
• New surplus
• Removed from unused equipment
• Refurbished
• Used tested
• Used untested
• Repair-exchange unit

These categories should not be treated as equivalent.



Recommended Incoming QA Procedure

For an AMAT 0190-73524 spare, record at minimum:

1. Identification

• AMAT P/N: 0190-73524
• XP Power model: 101540-04
• Revision
• Serial number
• Manufacturer label
• Equipment source, if known

2. Physical Inspection

• Housing condition
• Connector condition
• Terminal damage
• Signs of overheating
• Corrosion
• Contamination
• Missing hardware
• Evidence of prior repair

3. Electrical Verification

Testing should follow the applicable OEM/service documentation. Do not improvise a high-energy UPS test simply to establish that the unit “powers on.”

4. Functional Test

Where an approved test fixture or compatible AKT tool is available, verify:

• Startup
• Normal power operation
• Status indication
• Fault indication
• Transfer behavior where applicable
• Return-to-normal behavior
• Downstream equipment compatibility

5. Documentation

Maintain photographs of the identification label and revision markings. For semiconductor-equipment spares, these records are often more valuable than a generic supplier description.



Spare-Inventory Strategy

For a production tool dependent on this assembly, 0190-73524 should be treated as an equipment-specific spare, not as a generic UPS commodity.

Recommended inventory fields:

Inventory Field	Recommended Entry
OEM P/N	0190-73524
Associated Model	XP Power 101540-04
Revision	Rev. 3, where applicable
Equipment	AKT / Applied Materials
Function	UPS / power support
Criticality	Evaluate according to affected tool function
Preferred Condition	Tested or refurbished with documented test
Storage Requirement	Follow equipment/OEM requirements
Cross-Reference	Do not approve without engineering validation
Last-Time-Buy Risk	Monitor supplier and tool lifecycle
Incoming QA	Required

If a single spare supports a high-value production tool, maintaining one tested spare can be more economical than waiting for an emergency repair cycle.



Replacement and Compatibility Guidance

The safest replacement hierarchy is:

Exact AMAT 0190-73524 → exact XP Power 101540-04 → matching revision → verified equipment compatibility.

Do not approve a replacement merely because:

• The chassis looks similar
• The output voltage appears similar
• The seller calls it an “equivalent UPS”
• The unit has a higher power rating
• The connector appears to fit

The equipment-level interface is the controlling requirement.



Condition Guide

New Surplus

A New Surplus 0190-73524 should have its original identification intact and should be supplied with clear photographs of the model and revision. “New” should not be accepted as proof of electrical functionality.

Used Tested

For a used unit, request documented evidence of functional testing. Current marketplace records show used Rev. 3 units available for this exact part/model combination.

Refurbished

Ask what was actually replaced. A cosmetic refurbishment is not the same as an electrical refurbishment.

Untested / As-Is

This is an inventory-risk purchase. It may be reasonable for repair programs or low-cost backup stock, but it should not be treated as a production-ready spare without testing.



FAQ

Is AMAT 0190-73524 an XP Power unit?

Available part-level records identify 0190-73524 with XP Power 101540-04, specifically in an AKT UPS configuration.

What revision is associated with 0190-73524?

Rev. 3 is clearly documented in multiple current and historical listings.

Is 0190-73524 a servo drive?

The available evidence does not support treating it as a servo drive. Multiple exact-part records identify it as an AKT XP Power 101540-04 UPS. Some reseller pages contain conflicting descriptions, so those should be treated cautiously.

Can I replace it with another industrial UPS?

Not without engineering validation. The replacement must satisfy the AKT equipment’s electrical, mechanical, interface, transfer, and protection requirements.

Is a New Surplus 0190-73524 authentic?

It can be, but “New Surplus” is a condition description rather than proof of authenticity. Verify the AMAT P/N, XP Power model, revision, serial number, physical markings, and supplier documentation.

What warranty should I expect?

Warranty is supplier-specific. For example, a current secondary-market listing for the used unit provides its own return terms, but that does not establish an OEM warranty for all 0190-73524 units.



Bottom Line

Applied Materials 0190-73524 should currently be cataloged as an AKT / XP Power 101540-04 UPS assembly, with Rev. 3 specifically documented. The part is suitable for semiconductor-equipment spare planning when the exact equipment configuration and revision are confirmed.

The biggest procurement risk is not finding a unit labeled 0190-73524. It is accepting an incorrectly described or electrically unverified unit because the seller has attached a generic description to the AMAT number.
