AMAT 61-380630-00 Semiconductor Controller Module

Description

Product Introduction

The Applied Materials 61-380630-00 is a specialized process controller assembly engineered specifically for AMAT semiconductor wafer fabrication equipment. Installed directly within the tool’s main electronics bay, this assembly handles critical high-speed logic routing and peripheral device execution during automated wafer processing sequences.

Unlike standard off-the-shelf industrial PLCs, the 61-380630-00 uses proprietary circuit routing and tightly controlled timing clocks to prevent micro-stalls during high-vacuum chamber operations. Replacing a failing module with an exact-match OEM revision eliminates communication timeouts between the host tool controller and peripheral subsystems, ensuring zero disruption to sub-micron processing repeatability.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

In a wafer fab operating around the clock, an unhandled communication fault on a single control board can drop an entire process chamber mid-cycle. When a tool drops offline with a bus handshake error, scrapping a boat of high-value wafers is the immediate penalty. The engineering team usually spends hours chasing phantom cable faults before realizing an aging controller board has developed intermittent thermal failure on its logic bus.

• Semiconductor Fabrication – AMAT Wafer Processing Tools – Coordinates high-precision hardware sequencing and multi-axis control handshakes inside the main tool frame.
• Thin Film Deposition Systems – Process Chamber Automation – Maintains synchronous timing between vacuum valve triggers and process gas delivery routines.
• Legacy Tool Maintenance – Fab Life Extension – Serves as a drop-in replacement module to keep legacy 200mm/300mm manufacturing lines running without re-validating tool software.

Field Case Study

During a night shift at a wafer production facility, an etching platform halted due to a recurring system interface timeout. The tool diagnostic flagged an unresponsive internal bus node tied directly to the process controller card. Rather than enduring a multi-week OEM backorder, the field engineer pulled an exact-match 61-380630-00 module from pre-tested surplus inventory. After swapping the unit and performing a quick self-test handshake, the tool restored full communication and returned to qualified production in under two hours—saving tens of thousands of dollars in potential scrap and extended downtime.

Transparency SOP: Quality Assurance & Testing

We test every controller board on dedicated bench rigs before it ever leaves our facility:

1. Inbound Physical Inspection: Verification of PCB trace integrity, inspection for component discoloration or bulging capacitors, and verification of original OEM serial markings.
2. Static Power-On Test: Voltage rail verification across all on-board regulators to check for short circuits prior to full load application.
3. Live Rig Handshake: Installation into a functional test chassis to simulate real-world host communications and bus load.
4. Thermal Stability Monitoring: Extended burn-in under thermal monitoring to ensure zero intermittent solder joint opens or chip level thermal drift.
5. Anti-Static Packaging: Sealed inside ESD-shielding bags with moisture desiccant, packed in custom foam-lined shipping boxes.

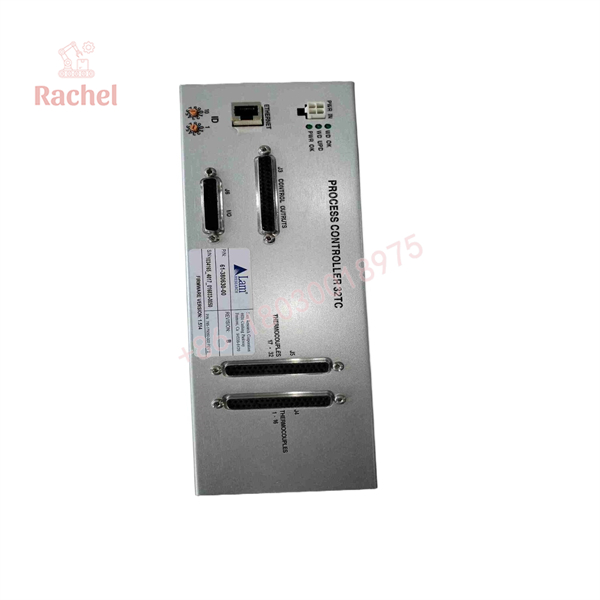

61-380630-00

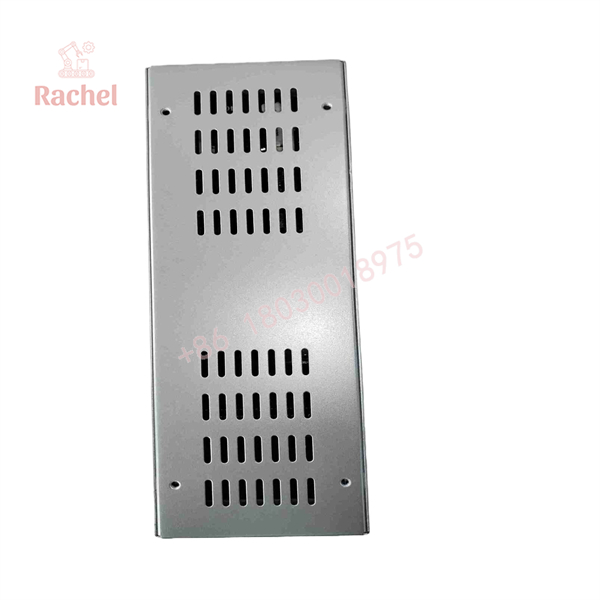

61-380630-00

The Veteran’s Tech Trap Guide

• ⚠️ Check Board Revision Levels: AMAT often releases subtle hardware revision letters on board assemblies. Verify that your tool software supports revision 61-380630-00 or higher before slotting the board into the rack.
• ❗ Power Down the Rack Fully: Never hot-swap this assembly. Pulling or inserting this controller card while the internal backplane is energized will spike the logic bus and destroy sensitive onboard ICs.
• ⚠️ Mind the Cable Strain Relief: The multi-pin D-sub connectors on the front panel must be fully secured with locking screws. Hand-tighten them carefully—loose screws cause ground loops that manifest as random, non-repeatable bus faults.
• ❗ ESD Hazard: Treat this board like pure gold. Always wear a grounded wrist strap attached to the chassis ground when handling the raw board. Ambient static discharge can silently ruin onboard microcontrollers.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the 61-380630-00 hot-swappable during tool operation?

A: No. Pulling this board live will drop the entire control loop and likely damage backplane transceivers. Always perform a complete tool shut-down and follow lock-out/tag-out (LOTO) protocols before replacement.

Q: Does this unit require firmware flashing prior to installation?

A: Typically, no. The board acts as a hardware interface controller that relies on system-level software loaded from the host tool. However, confirm that onboard EEPROM chips match your tool’s baseline hardware manifest.

Q: Why purchase New Surplus or Refurbished stock over buying direct from the OEM?

A: Legacy tool components are often discontinued or carried on extreme lead times by the original equipment manufacturer. Pre-tested surplus inventory gives you immediate availability at a fraction of the cost, keeping your lines running without waiting months for factory fabrication cycles.

Q: How do you verify the unit isn’t a non-functional pull?

A: Every unit passes through our physical and electrical testing SOP. We verify board voltage rails and bus handshakes under live conditions on actual test chassis rather than just relying on visual checks.

Q: What warranty coverage comes with this module?

A: All our new surplus and reconditioned industrial parts include a standard 12-month warranty covering functional failure, giving you full peace of mind for critical production tools.
