The Applied Materials 0190-26873 is a dedicated motion control PCBA engineered for AMAT 300mm semiconductor manufacturing platforms. Slotting directly into the tool’s core controller rack, this card acts as the primary hardware interface executing high-precision trajectories for wafer transfer robots, slit valves, and substrate indexing mechanisms.
Built to deliver micro-radian motion accuracy under rapid transfer speeds, the 0190-26873 processes high-frequency encoder signals and executes real-time position correction loops. Swapping out a drifting or faulted 0190-26873 board restores ultra-smooth robotic movements, eliminating violent axis jitter, reducing wafer placement errors, and keeping your mainframe’s overall throughput locked to factory spec.
Key Technical Specifications
| Parameter | Value |
| Part Number | 0190-26873 / 019026873 |
| OEM Manufacturer | Applied Materials (AMAT) |
| Form Factor | Rack-Mount cPCI / Eurocard Controller Module |
| Platform Compatibility | AMAT Producer, Endura, Centura 300mm Tooling |
| Control Capabilities | Multi-axis coordinated servo and stepper motor control |
| Feedback Protocols | Differential Quadrature Encoder / Absolute Encoder Interfaces |
| Power Input | Rack backplane bus (+5V DC / ±12V DC logic & drive rails) |
| Communication | Ethernet / Serial RS-232 / Proprietary High-Speed Bus |
| Environment Grade | Class 10 / Class 100 HEPA Cleanroom Compatible |
Application Scenarios & The “Trench” Experience
picture this: It’s 1:30 AM during a peak wafer run. Chamber 2’s transfer blade suddenly halts mid-extension, triggering a hard “Axis 3 Position Deviation Limit” error. The robot arm is stuck holding a $15,000 prime wafer inside the transfer chamber transition zone, and manual jogging fails because the 0190-26873 board’s onboard DSP lost its encoder counter channel. Dropping a pre-tested, calibrated 0190-26873 replacement card into the rack gets the wafer handler re-homed in under 30 minutes—saving the wafer lot and heading off a 24-hour tool shutdown.
Typical Applications:
- 300mm Atmospheric & Vacuum Robots – Drives multi-link robotic arms for smooth, vibration-free transfer of silicon substrates between load ports and process chambers.
- Chamber Lift & Indexing Mechanisms – Controls vertical pin lifts and susceptor movement to ensure precise wafer placement during thermal or etch processes.
- Slit Valve Actuation – Coordinates high-speed opening and closing timing of vacuum isolation doors between adjacent process modules.
0190-26873

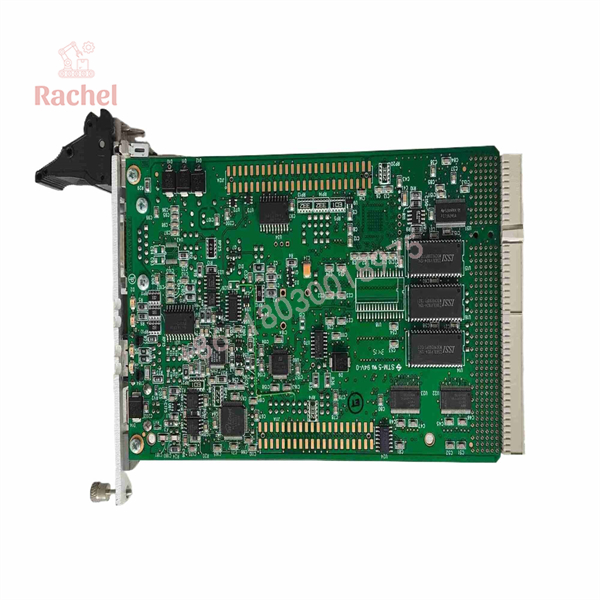

0190-26873
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual AMAT-compatible rack backplanes and servo drive benches. Every surplus or reconditioned 0190-26873 card goes through our strict 5-stage SOP:
- Inbound Visual & Structural Audit: High-magnification check for board flex, traces, cracked surface-mount capacitors, and edge-connector wear.
- Rack Insertion & Power-On Diagnostics: Verification of onboard power supply rails, boot-up self-test sequences, and logic LED indicators.
- Multi-Axis Servo Loop Simulation: Connection to a multi-axis motor test bench to drive simulated motion profiles while monitoring position error loops.
- Encoder Input Sweep: Oscilloscope validation of high-frequency differential encoder inputs to ensure zero signal drops or missing pulses.
- Cleanroom Handling & Anti-Static Packaging: Decontaminated in a HEPA environment, vacuum-sealed in ESD shielding bags, and packed with desiccant.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Power Down Before Removing the Card: Never pull or insert the 0190-26873 while the backplane rack is live. Hot-swapping will cause electrical arcs across high-density backplane pins, instant destruction of delicate encoder receiver ICs, and potential bus corruption across adjacent cards.
❗ Backup Motion Parameter Files First: Even though hardware parameters are pushed from the host PC, custom axis offsets, home positions, and PID gains are often cached or locked to specific board revisions. Save a full system parameter backup using your tool’s service software before pulling the old board. Trust me on this one.
⚠️ Check Board Jumpers & Rotary Switches: Compare the jumper blocks and rotary address switches on your old card against the 0190-26873 replacement before installation. A misaligned address jumper will cause the cell controller to lose communication with the card or misidentify axis assignments on boot.
Frequently Asked Questions (FAQ)
Q: Is the AMAT 0190-26873 motion controller card hot-swappable?
A: No. Absolutely not. Pulling or inserting this module into an active card cage will damage the board edge connectors and risk damaging the rack backplane power supply. Always power down the card cage before swapping modules.
Q: Does this board control stepper motors or servo motors?
A: The 0190-26873 is a versatile motion interface designed to handle both closed-loop servo motors (with encoder feedback) and high-precision stepper motor axes depending on the specific firmware personality loaded by the host system.
Q: Do I need to calibrate motion axes after installing this card?
A: Yes. Because mechanical zero points and encoder offsets can vary slightly between hardware revisions, you must run your tool’s standard axis homing and teach routines (such as robot wafer center teaching) after replacement.
Q: What warranty comes with this replacement module?
A: We back every 0190-26873 board with a full 12-month operational warranty. If the module fails bench diagnostics or experiences component degradation within 365 days of purchase, we replace it or issue a full refund—no hassles.
Q: Why buy surplus replacement boards over ordering directly from Applied Materials?
A: OEM lead times for specialized 300mm motion control electronics can span anywhere from 8 to 20 weeks. Sourcing pre-tested, surplus original components gets your tool back online in days at a fraction of the OEM catalog price.
