Description
Product Introduction
The Berkeley Process Control ASM81-B-0B-00-NB10 is a high-performance AC brushless servo motor designed for demanding precision automation architectures. Built specifically for high-speed indexing machinery and robotic positioning systems, this motor delivers accurate mechanical movement when driven by compatible closed-loop controllers.
Featuring a low-inertia rotor design and an IP65-sealed enclosure, the ASM81-B-0B-00-NB10 provides rapid dynamic acceleration and reliable operation in harsh industrial environments. It provides 4.0 lb-in of continuous torque up to high rotational speeds, making it a drop-in hardware replacement for aging motion control axes without requiring custom panel retrofits.
Key Technical Specifications
| Parameter | Value |
| Product Line | ASM81 Series |
| Motor Type | AC Brushless Servo Motor |
| Continuous Torque | 4.0 lb-in (0.45 Nm) |
| Rated Speed | 5,000 RPM |
| Maximum Speed | 10,000 RPM |
| Ingress Protection | IP65 (dust-tight and water-jet resistant) |
| Shaft Configuration | 7/16-inch with standard flat/keyway |
| Feedback Type | Integrated resolver/encoder feedback |
| Mounting Type | Standard NEMA/IEC face mount pattern |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
Application Scenarios & The “Trench” Experience
Picture this: It is 3:00 AM during a peak manufacturing run when a high-speed assembly robot faults out with a severe position lag error. The maintenance technician pulls the covers and finds a smoked bearing and seized rotor on an aging servo motor. Every minute of line stoppage costs thousands in lost throughput, and waiting weeks for an OEM service technician is not an option. You pull a certified surplus ASM81-B-0B-00-NB10 off the shelf, match the mounting flange, verify the connector pinout, and re-home the axis to get the line back online before day shift arrives.
- Automated Pick-and-Place: Driving high-speed robotic arm joints and transfer mechanisms in packaging cells.
- Semiconductor Handling: Operating precision indexing tables and wafer transport stages inside cleanroom enclosures.
- Custom CNC Machinery: Managing high-accuracy auxiliary positioning axes on specialized tooling centers.

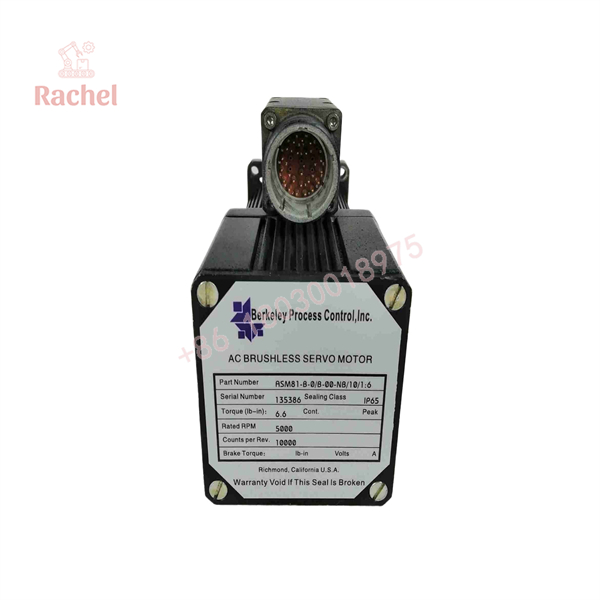

ASM81-B-0B-00-NB10

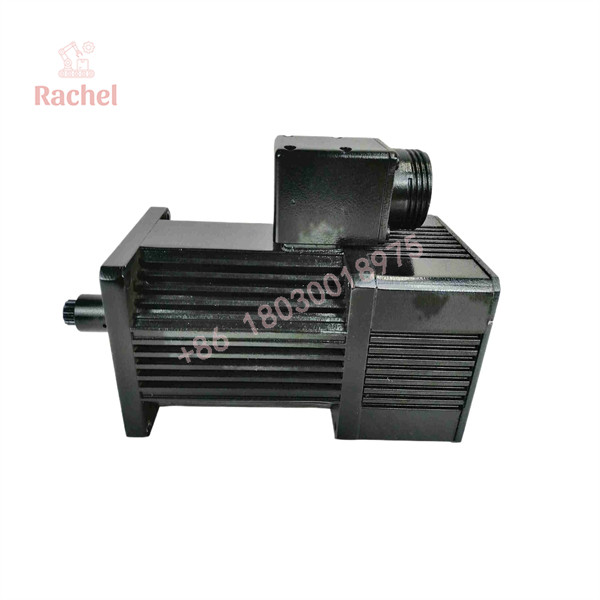

ASM81-B-0B-00-NB10
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual motion control test rigs. Every surplus ASM81-B-0B-00-NB10 unit undergoes a strict quality verification process before leaving our warehouse:
- Inbound Mechanical Inspection: Physical check for shaft straightness, bearing smoothness, and nameplate legibility.
- Electrical Insulation Checks: Megger insulation resistance testing across stator windings to verify coil integrity.
- Live Drive Handshake: Connecting to a dedicated test drive to verify phase commutation, back-EMF balance, and feedback tracking.
- Thermal & Vibration Audit: Running the motor up to operating speed to monitor for abnormal vibration or bearing noise.
- Final QC & Anti-Static Packaging: Shaft protective capping, moisture-barrier ESD bagging, and high-density foam crating.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Match the Suffix Codes: The suffix string in
ASM81-B-0B-00-NB10dictates exact feedback wiring and winding configurations. Swapping in a mismatched suffix variant will cause a drive fault or motor runaway upon enable. - ❗ Never Strike the Shaft: Do not use a hammer or force a pulley onto the shaft. Doing so shatters the internal encoder disk or resolver rotor, instantly ruining the motor.
- ⚠️ Secure Cable Glands: Ensure the motor cable connector is fully seated and tightened with an intact O-ring. Coolant or oil mist ingress will quickly destroy internal stator windings.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the ASM81-B-0B-00-NB10 compatible with standard third-party servo drives?
A: Yes, provided the drive matches the motor’s electrical rating and feedback interface type. Always verify commutation parameters before enabling the axis.
Q: Are these units brand new or refurbished?
A: Our inventory consists primarily of New Surplus and Factory Sealed stock sourced from industrial liquidations. Every unit undergoes live bench testing prior to shipment.
Q: Why is your price lower than direct OEM channels?
A: Machine OEMs often mark up legacy motion hardware heavily. We source certified surplus inventory directly, providing original parts at a fraction of the cost to keep your legacy lines running.
Q: What warranty is included with purchase?
A: Every ASM81-B-0B-00-NB10 ships with our comprehensive 12-month replacement warranty.
