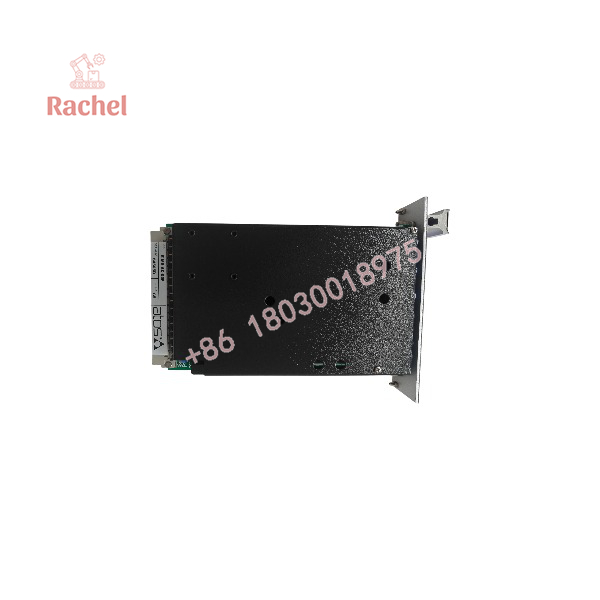

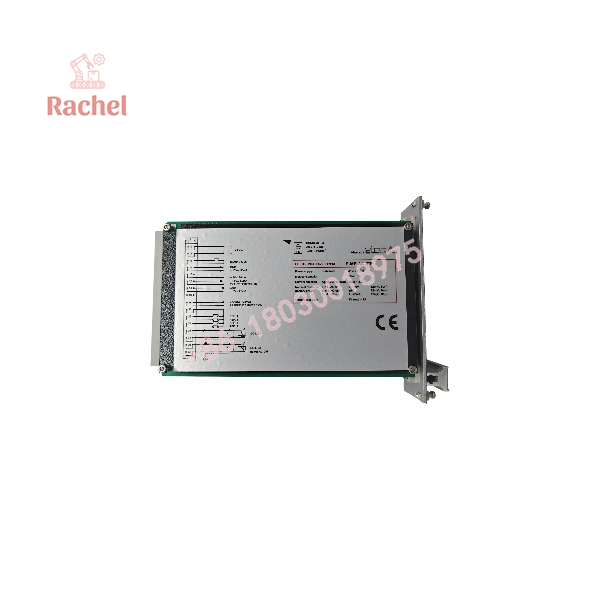

The ATOS E-ME-AC-05F is an analog electronic driver in Eurocard format designed for Atos proportional valves without pressure or position transducers. The 05F version is specifically intended for double-solenoid proportional valves.
It regulates the current supplied to the valve solenoids according to an external electronic reference signal, thereby controlling spool position, flow or pressure. The driver provides a maximum solenoid current of 3.3 A (PWM square-wave) and accepts a nominal ±5 V reference signal. Bias and scale adjustments are performed via potentiometers, and a symmetrical ramp generator is included as standard. Power supply is +24 VDC (rectified and filtered 21–33 V) with a maximum consumption of 50 W. The unit is supplied in DIN 41494 Eurocard format with a DIN 41612 connector.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product type | Analog electronic driver (Eurocard) |
| Model | E-ME-AC-05F |
| Application | Double-solenoid proportional valves without transducer |
| Power supply | Nominal +24 VDC (rectified & filtered 21–33 V) |
| Max. power consumption | 50 W |
| Solenoid current | Imax = 3.3 A PWM (2.5 A for ex-proof valves) |
| Nominal reference signal | ±5 V (contact 12c, GND on 8a) |
| Scale adjustment range | ±10 V max to ±2.5 V min |
| Ramp time | max. 5 s (0–100 % of reference) |
| Potentiometer supply | +5 V / 50 mA and –5 V / 20 mA |
| Format | Eurocard (DIN 41494) |
| Connector | DIN 41612 / D |
| Ramp type | Symmetrical (standard) |
Detailed Product Overview
The ATOS E-ME-AC-05F belongs to the E-ME-AC family of analog drivers used to control the current delivered to the solenoids of Atos proportional valves that do not incorporate a pressure or position transducer. By modulating the solenoid current in response to an external reference signal, the driver determines the hydraulic spool position and therefore the resulting flow or pressure.
The 05F designation indicates suitability for double-solenoid valves. A PWM square-wave current amplifier supplies up to 3.3 A to each solenoid (reduced to 2.5 A for explosion-proof versions). Factory pre-setting of the nominal ±5 V reference simplifies commissioning, while front-panel potentiometers allow independent adjustment of bias (dead-band compensation) and scale. A symmetrical rising/falling ramp generator limits acceleration and deceleration of the reference signal, improving system stability and reducing hydraulic shock.
The driver is built in the standard Eurocard format (DIN 41494) and plugs into a DIN 41612 connector, making it suitable for modular rack or panel installations. Enabling is performed by a 5–24 VDC signal. Optional versions with asymmetrical ramps (/RR) or internal reference potentiometers (-4, /RR-4, /4R-4) extend functionality for more complex control schemes.
Engineering Selection Highlights
- Select the 05F version when controlling double-solenoid proportional valves without onboard transducers.
- Use the standard symmetrical ramp for most applications; choose /RR options if independent rise and fall times are required.
- Power supply must be a clean +24 VDC source (21–33 V after rectification and filtering).
- Solenoid current is limited to 3.3 A continuous (PWM); verify valve coil resistance compatibility.
- Reference signal is factory-set to ±5 V; scale can be adjusted between ±2.5 V and ±10 V.
- Eurocard format requires a matching DIN 41612 female connector and suitable rack or panel mounting.
- Maximum ramp time of 5 s covers typical industrial hydraulic response requirements.
E-ME-AC-05F
E-ME-AC-05F
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Valve type | Atos proportional valves without transducer | Double-solenoid versions only |
| Power supply | +24 VDC nominal (21–33 V rectified) | Max. 50 W consumption |
| Reference signal | ±5 V nominal (scale adjustable) | Voltage input (current option /I available on other variants) |
| Solenoid drive | PWM current up to 3.3 A | 2.5 A for ex-proof solenoids |
| Enable signal | 5–24 VDC | Front-panel LED indication |
| Mechanical format | Eurocard DIN 41494 | DIN 41612 / D connector |
| Cable to solenoids | 2 × 1 mm² up to 20 m or 2 × 1.5 mm² shielded up to 40 m | Shielded recommended |
Dimensions, Mounting & Connection Notes
The driver is supplied as a Eurocard module conforming to DIN 41494. Front-panel dimensions are approximately 128.4 × 35.3 mm. Connection is via a male DIN 41612 / D connector. Solenoid wiring should use 2 × 1 mm² cable for distances up to 20 m or 2 × 1.5 mm² shielded cable up to 40 m. Operating temperature range is typically 0 to +50 °C.
FAQ
What is the ATOS E-ME-AC-05F?
It is an analog electronic driver in Eurocard format that controls the current to the solenoids of Atos double-solenoid proportional valves without transducers.
Which valves does the E-ME-AC-05F suit?
Double-solenoid proportional valves that do not incorporate pressure or position transducers.
What reference signal does it accept?
A nominal ±5 V signal (adjustable scale from ±2.5 V to ±10 V).
What is the maximum solenoid current?
3.3 A PWM square-wave (2.5 A for explosion-proof valves).
What power supply is required?
Nominal +24 VDC (rectified and filtered range 21–33 V), maximum consumption 50 W.
Does it include ramp control?
Yes. The standard version provides a symmetrical rising and falling ramp adjustable up to 5 s.
What format is the driver?
Eurocard according to DIN 41494 with DIN 41612 connector.
Verification & Troubleshooting Notes
- Confirm the valve is a double-solenoid proportional type without transducer before applying the E-ME-AC-05F.
- Verify power-supply voltage remains within 21–33 V under load.
- Check that the reference signal polarity and amplitude match the factory ±5 V setting or the adjusted scale.
- Use the front-panel potentiometers only for bias and scale; incorrect adjustment can cause offset or saturation.
- Ensure solenoid cables are correctly sized and shielded when length exceeds 20 m.
- Observe the enable LED to confirm the enable signal is present.
