To be honest, finding legacy hardware like the Automotion ALC12DE-010-1312 servo amplifier can be a nightmare when an older machine control rack blows an output stage. This unit handles closed-loop motion regulation, translating low-level analog control commands from older motion controllers into precise power delivery for DC or brushless servo motors.
Built for heavy industrial and semiconductor equipment chassis, it manages high-frequency switching and feedback processing without modern digital overhead. In our field experience, replacing one of these units requires exact part number matching down to the suffix string to prevent phase inversion or scaling mismatches that could otherwise destroy connected machinery on power-up.
Key Technical Specifications
| Parameter | Value |
| Amplifier Type | Analog / Hybrid Servo Drive Unit |
| Continuous Current Output | 10 Amps (implied by model configuration) |
| Input Power Supply | DC Bus / External Regulated Voltage Rails |
| Command Signal Input | Analog Voltage / Current Loop References |
| Feedback Interface | Resolver / Incremental Encoder Compatible |
| Protection Features | Overcurrent, Short Circuit, and Thermal Trip |
| Mounting Style | Panel / Sub-rack Chassis Mount |
| Operating Temperature | 0°C to +45°C |
| Cooling Method | Convection / Chassis Heatsink Sink |
| Enclosure Type | Open-board / Module Housing |
Application Scenarios & The “Trench” Experience
Picture this: It is midnight at a legacy semiconductor fabrication facility. A sudden error code flashes on an older automation rack, followed by a burning smell as an output transistor short-circuits on the servo amplifier. The entire production line freezes, and corporate starts counting thousands of dollars in downtime per hour. Waiting months for custom redesign is impossible; dropping in a verified, exact-match Automotion replacement unit gets the axis back under closed-loop control before dawn.
- Semiconductor Manufacturing Equipment: Driving precision positioning stages and wafer-handling robotics in legacy tool chassis.
- Industrial CNC & Machining: Managing auxiliary axis servo loops where rapid acceleration and tight settling times dictate part tolerances.
- Automated Material Handling: Powering dedicated conveyor indexers and sorting slides driven by older analog motion loops.

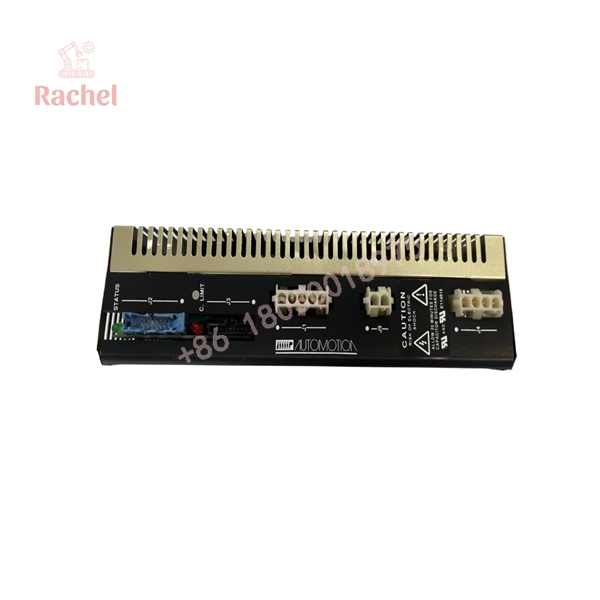

ALC12DE-010-1312

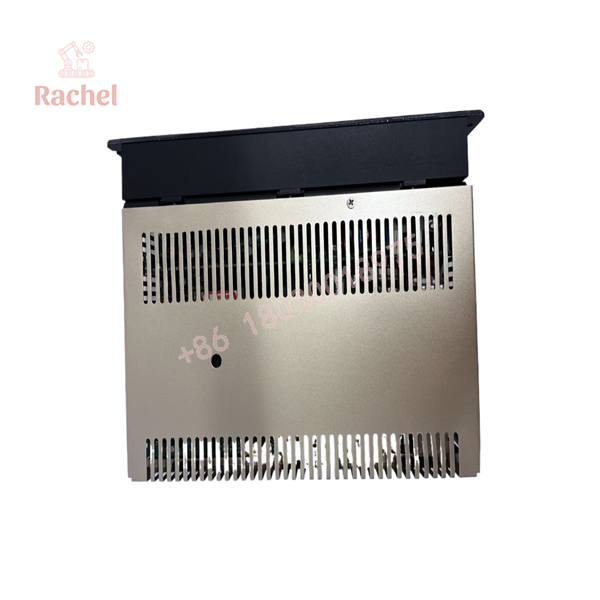

ALC12DE-010-1312
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual test racks. Every unit goes through a strict verification protocol:
- Inbound Inspection: Visual check for component burn marks, capacitor leakage, connector pin bending, and OEM label validation.
- Live Rig Testing: Power-on self-test using controlled DC supply rails to verify quiescent current draw and internal voltage regulation.
- Signal & Loop Checks: Injecting reference command voltages to verify signal path continuity through the amplification stages.
- Thermal Stability Monitoring: Running a baseline thermal check on output power transistors under simulated load conditions.
- Final QC & Anti-static Packaging: Sealed in heavy-duty ESD shielding bags surrounded by high-density protective foam.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ DC Bus Bleed-Down Danger: Never pull or insert this amplifier module while the main DC bus capacitors are charged. Always verify bus voltage has dropped to zero with a digital multimeter before touching terminal blocks, or you risk severe electrical shock and instant component frying.
❗ Gain Potentiometer Settings: Do not adjust the onboard gain and offset potentiometers blindly. If you are swapping a failed unit, measure and note the exact trimmer positions of the old card or match them precisely to prevent dangerous runaway motion during initial axis enable.
⚠️ Signal Ground Isolation: Ensure control signal grounds and power commons are properly separated. Ground loops across analog reference lines will inject electrical noise, causing erratic motor jitter and false overcurrent trips.
Frequently Asked Questions (FAQ for Conversion)
Q: Is this unit plug-and-play with modern digital controllers?
A: Generally no. The ALC12DE-010-1312 relies on legacy analog command interfaces. Interfacing it with modern PLC motion controllers requires appropriate digital-to-analog (D/A) conversion modules.
Q: Does this amplifier come with a warranty?
A: Yes. Every surplus and fully tested unit includes a standard 12-month replacement warranty.
Q: Why is this priced lower than modern servo drive upgrades?
A: We source factory surplus and overstock components from plant liquidations, allowing maintenance teams to bypass expensive system re-engineering by swapping exact drop-in legacy parts.
Q: Are the internal firmware or jumpers configurable?
A: This model relies primarily on hardwired analog adjustments and internal jumper selections rather than software flashing. Always verify your jumper configurations match the old unit before installation.
