Baldor FD2A02TR-RN20 FlexDrive AC Servo Drive 230V Resolver

Description

Product Introduction

The Baldor FD2A02TR-RN20 is a compact, panel-mount AC servo drive engineered for single-axis motion control of brushless AC motors like the Baldor BSM series. Operating on a 230VAC single-phase input, this unit handles continuous velocity and positioning tasks using standard analog control signals or step/direction pulse trains. It serves as a backbone drive for legacy CNC tooling, indexing tables, and packaging machinery that demand precise motor feedback.

Unlike basic analog velocity amplifiers, the FD2A02TR-RN20 embeds an internal power supply, logic generator, and digital field-oriented processing directly onboard. Its internal resolver-to-digital converter provides high noise immunity in severe electrical environments compared to standard optical encoders. For maintenance teams running legacy lines, keeping a verified FD2A02TR-RN20 on hand prevents complete cabinet retrofits when an old drive unit short-circuits.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

When an optical encoder disk fogs up or cracks from oil mist on a machine tool, the system goes dark. We once tackled a emergency call at a tier-2 automotive metal stamping plant where a custom indexing table died on shift. The drive tossed a feedback trip every time the press cycled. Re-tuning an encoder drive didn’t work; the ambient vibration was simply destroying optical glass. Converting the motor and drive to a heavy-duty resolver setup using the FD2A02TR-RN20 was the only way to survive that oil-soaked environment.

• Automotive Machining: Single-axis indexers driving drilling or tapping heads requiring rugged resolver feedback.
• Food & Packaging Lines: Flying cut-off saws and metering feeds taking ±10V position commands from a central PLC.
• CNC Retrofits: Auxiliary axis drives running BSM-series servo motors where enclosure space is tightly constrained.
• Textile & Winding Machinery: Continuous tensioning reels utilizing pulse/direction follower modes.

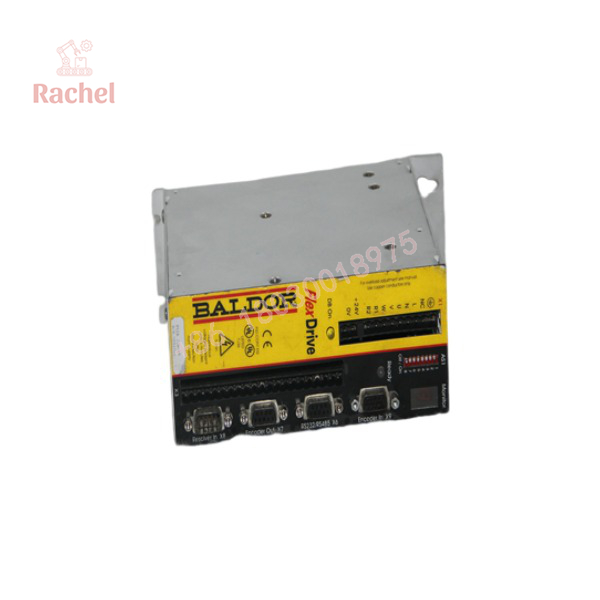

FD2A02TR-RN20

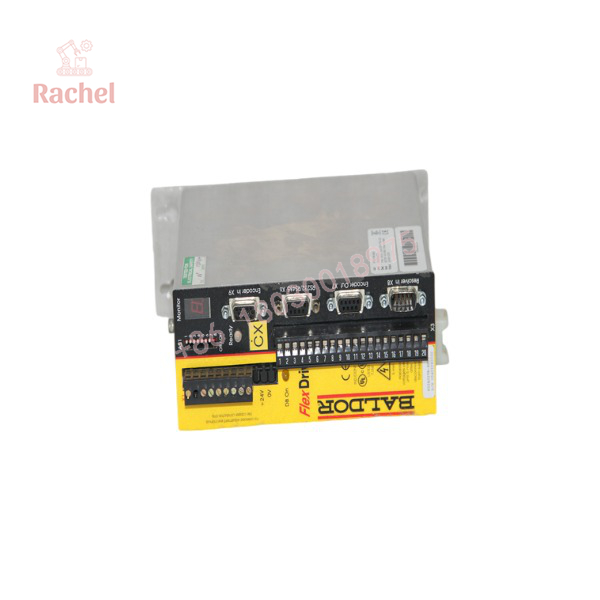

FD2A02TR-RN20

Transparency SOP: Quality Assurance & Testing

We do not drop-ship unverified surplus. Every Baldor FD2A02TR-RN20 undergoes a rigorous bench-test SOP before entering vacuum-sealed anti-static storage:

1. Inbound Inspection: Visual audit of the power stage PCB, terminal blocks, housing chassis, and OEM serial tags to rule out heat stress or physical damage.
2. Backplane & Power Stage Bench Check: DC bus capacitors undergo leakage checks, and the main bridge rectifier/IGBT modules are checked with a multimeter for short circuits.
3. Live Rig Handshake: The module is mounted to an active test chassis with a Baldor BSM servo motor and a genuine resolver setup.
4. I/O & Loop Execution: We inject a ±10V signal and run step/direction sequences via RS-232 WorkBench software to verify velocity loop response, current draw, and fault outputs.
5. Final Clean & Static Shielding: Connectors are blown clean, internal software parameters are cleared to factory default, and the unit is wrapped in ESD anti-static packaging.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Resolver Phase & Pole Matching: The ‘RN20’ suffix denotes a resolver feedback configuration. If your old motor uses an optical quadrature encoder (e.g., an ‘EN’ suffix model), this drive will not work. Do not try to wire an incremental encoder into this port; the pinouts and internal decoding logic are completely different.

❗ DIP Switch & Jumpers vs. Mint/WorkBench Config: Take a clear picture of the internal configuration jumpers or DIP switches on your dead drive before unmounting it! While many settings are stored in EEPROM via the RS-232 port, hardware-level settings for command inputs (e.g., switching between ±10V velocity control and pulse/direction) rely on physical board jumpers. Missing a jumper shift will leave your new drive sitting in an unacknowledged disable state.

⚠️ External Regen Resistors: The FD2A02TR-RN20 uses an internal regen control circuit, but high-inertia dynamic stopping requires an external braking resistor. If you swap this drive out and forget to reconnect the external regen resistor across the designated terminals, you will blow the internal bus over-voltage protection circuit during the very first rapid deceleration cycle.

Frequently Asked Questions (FAQ)

Q: Is the FD2A02TR-RN20 hot-swappable?

A: No. Absolutely not. Disconnect line power and wait at least 5 minutes for the internal DC bus capacitors to discharge completely before removing terminal block wiring. Pulling or inserting connections under load will arcing-damage the control terminals and potentially blow the internal power hybrid.

Q: Can I parameterize this drive directly from the front faceplate?

A: No, this unit relies on a PC running Baldor’s WorkBench or Mint software connected through the front-facing RS-232 serial port. You cannot configure motor current limits or resolver transformation ratios without a 9-pin serial cable setup.

Q: What is the difference between an FD2A02TR-RN20 and an FD2A02TR-EN20?

A: Feedback type. The model is specifically built for resolver feedback (sine/cosine AC signals). The EN20 model expects an incremental optical encoder (A/B/Z channel square waves). They are not interchangeable unless you change the feedback device on your servo motor as well.

Q: Why are surplus FD2A02TR units significantly less expensive than buying new motion drives?

A: ABB/Baldor retired the FlexDrive series years ago. Modern replacements require replacing both the drive and the motor, plus rewriting controller code. Buying verified surplus allows plant engineers to do a 15-minute drop-in swap and avoid thousands of dollars in retrofitting and panel re-engineering costs.

Q: What warranty comes with this drive?

A: All new-surplus and reconditioned FD2A02TR-RN20 units include a full 12-month operational warranty. If the drive trips a internal hardware fault under normal operating conditions within a year, we replace or repair it immediately.
